SDO HMI 2011-10-21 01:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.94 | 0.00 | 9.74 | 23.73 | 329.81 | -15.85 | 37.65 | 0.4065 | -430.6 | -355.9 | |
|
previous
or next observation for the same group /

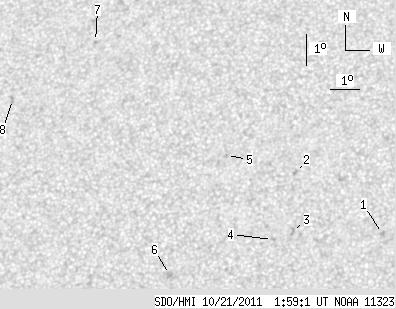

back to the solar disc SDO HMI 2011-10-21 01:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.35 | 0.00 | 1.24 | 22.62 | 335.58 | -10.08 | 28.55 | 0.3394 | -786.0 | -619.9 | |
| 0.00 | 2.44 | 0.00 | 1.31 | 24.49 | 332.52 | -13.14 | 32.19 | 0.3900 | -889.0 | -665.4 | |
| 0.00 | 2.44 | 0.00 | 1.30 | 22.63 | 332.61 | -13.05 | 34.98 | 0.3651 | -869.0 | -717.2 | |
| 0.00 | 1.65 | 0.00 | 0.88 | 22.37 | 331.97 | -13.69 | 36.69 | 0.3678 | -720.0 | -663.3 | |
| 0.00 | 1.31 | 0.00 | 0.71 | 24.97 | 330.12 | -15.53 | 35.73 | 0.4175 | -740.0 | -539.6 | |
| 0.00 | 4.01 | 0.00 | 2.15 | 21.20 | 328.67 | -16.99 | 44.69 | 0.3891 | -822.0 | -584.4 | |
| 0.00 | 1.39 | 0.00 | 0.80 | 28.49 | 324.93 | -20.73 | 38.09 | 0.5064 | 661.0 | 550.2 | |
| 0.00 | 2.35 | 0.00 | 1.35 | 26.53 | 322.33 | -23.33 | 44.02 | 0.5120 | 720.0 | 655.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
