SDO HMI 2011-10-21 01:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.99 | 294.93 | 52.88 | 166.56 | -21.06 | 334.43 | -11.23 | 157.87 | 0.4824 | 9.4 | -166.0 | |
|
previous
or next observation for the same group /

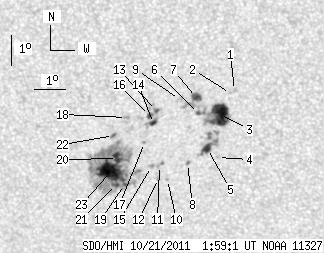

back to the solar disc SDO HMI 2011-10-21 01:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.57 | 0.00 | 0.86 | -18.99 | 337.39 | -8.27 | 161.76 | 0.4363 | 829.0 | 668.7 | |
| 0.00 | 0.61 | 0.00 | 0.34 | -19.09 | 337.25 | -8.40 | 161.56 | 0.4385 | 908.0 | 772.6 | |
| 29.96 | 60.01 | 16.61 | 33.27 | -19.79 | 336.87 | -8.79 | 161.31 | 0.4507 | 1052.1 | 601.7 | |
| 0.00 | 1.22 | 0.00 | 0.68 | -21.22 | 336.72 | -8.94 | 162.06 | 0.4724 | 607.0 | 432.2 | |
| 5.84 | 24.65 | 3.27 | 13.79 | -20.92 | 336.41 | -9.25 | 161.28 | 0.4696 | 819.3 | 583.4 | |
| 1.31 | -3.00 | 0.73 | -3.00 | -19.76 | 336.19 | -9.47 | 159.97 | 0.4538 | 697.3 | 999999 | |
| 5.92 | -3.00 | 3.28 | -3.00 | -19.24 | 336.16 | -9.50 | 159.48 | 0.4464 | 1087.2 | 999999 | |
| 0.96 | 1.31 | 0.54 | 0.74 | -21.43 | 335.73 | -9.93 | 160.40 | 0.4804 | 518.6 | 547.2 | |
| 0.00 | 3.40 | 0.00 | 1.88 | -19.31 | 335.61 | -10.05 | 158.47 | 0.4505 | 656.0 | 563.7 | |
| 0.00 | 1.13 | 0.00 | 0.64 | -21.98 | 335.03 | -10.62 | 159.58 | 0.4918 | -615.0 | -486.5 | |
| 0.00 | 2.61 | 0.00 | 1.48 | -21.52 | 334.81 | -10.85 | 158.81 | 0.4865 | -938.0 | -804.1 | |
| 0.00 | 1.74 | 0.00 | 0.99 | -21.95 | 334.74 | -10.92 | 159.04 | 0.4930 | -782.0 | -718.5 | |
| 1.48 | 19.86 | 0.83 | 11.09 | -19.69 | 334.84 | -10.81 | 157.34 | 0.4604 | 912.4 | 558.6 | |
| 3.05 | -13.00 | 1.71 | -13.00 | -20.12 | 334.72 | -10.94 | 157.48 | 0.4673 | 767.8 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.23 | -21.56 | 334.54 | -11.11 | 158.38 | 0.4885 | -983.0 | -694.8 | |
| 2.44 | -13.00 | 1.36 | -13.00 | -19.86 | 334.61 | -11.05 | 157.04 | 0.4642 | 877.2 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.64 | -20.76 | 334.38 | -11.28 | 157.42 | 0.4782 | -776.0 | -602.7 | |
| 0.00 | 1.74 | 0.00 | 0.98 | -19.94 | 333.85 | -11.80 | 155.74 | 0.4700 | 694.0 | 431.2 | |
| 1.57 | 169.94 | 0.90 | 96.92 | -22.18 | 333.61 | -12.05 | 157.28 | 0.5026 | -649.8 | -487.9 | |
| 6.27 | -19.00 | 3.56 | -19.00 | -21.31 | 333.45 | -12.21 | 156.27 | 0.4915 | -1251.5 | 999999 | |
| 1.57 | -19.00 | 0.90 | -19.00 | -22.19 | 333.34 | -12.32 | 156.84 | 0.5042 | -576.6 | 999999 | |
| 1.22 | 1.83 | 0.69 | 1.03 | -20.55 | 333.38 | -12.27 | 155.47 | 0.4814 | -893.8 | -799.9 | |
| 32.40 | -19.00 | 18.50 | -19.00 | -21.75 | 333.18 | -12.48 | 156.20 | 0.4992 | -1113.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
