SDO HMI 2011-10-21 02:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.65 | 24.03 | 0.95 | 13.63 | -15.98 | 4.96 | 19.85 | 222.09 | 0.4882 | 175.0 | 238.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-21 02:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

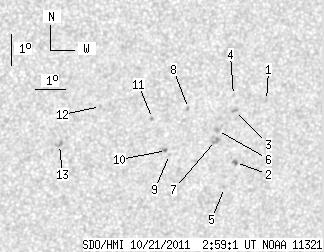

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.65 | -14.97 | 7.49 | 22.38 | 227.09 | 0.5041 | 666.0 | 494.2 | |
| 1.39 | 2.26 | 0.80 | 1.31 | -16.93 | 6.67 | 21.57 | 223.22 | 0.5155 | 725.3 | 599.5 | |
| 0.00 | 1.74 | 0.00 | 0.99 | -15.25 | 6.45 | 21.34 | 225.33 | 0.4957 | 932.0 | 757.9 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -14.77 | 6.37 | 21.26 | 225.94 | 0.4898 | 889.0 | 648.1 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -17.73 | 6.40 | 21.29 | 221.78 | 0.5213 | -674.0 | -573.4 | |
| 0.00 | 2.70 | 0.00 | 1.54 | -15.87 | 5.95 | 20.84 | 223.76 | 0.4969 | 845.0 | 683.2 | |
| 0.00 | 5.14 | 0.00 | 2.94 | -16.19 | 5.92 | 20.81 | 223.25 | 0.5000 | 655.0 | 615.9 | |
| 0.00 | 1.39 | 0.00 | 0.79 | -15.14 | 4.92 | 19.81 | 223.40 | 0.4781 | 776.0 | 640.2 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -16.59 | 4.44 | 19.33 | 220.61 | 0.4893 | -693.0 | -499.2 | |
| 0.26 | 1.13 | 0.15 | 0.64 | -16.46 | 4.33 | 19.22 | 220.63 | 0.4867 | -805.7 | -732.3 | |
| 0.00 | 1.31 | 0.00 | 0.73 | -15.42 | 3.76 | 18.65 | 221.29 | 0.4693 | 716.0 | 592.9 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -14.98 | 2.03 | 16.93 | 219.20 | 0.4469 | -732.0 | -526.5 | |
| 0.00 | 3.48 | 0.00 | 1.93 | -16.16 | 0.81 | 15.70 | 215.47 | 0.4497 | -768.0 | -643.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
