SDO HMI 2011-10-21 02:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.72 | 0.00 | 10.15 | 23.90 | 330.19 | -14.92 | 35.94 | 0.3994 | -548.3 | -412.7 | |
|
previous
or next observation for the same group /

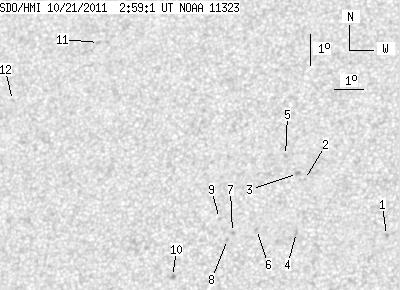

back to the solar disc SDO HMI 2011-10-21 02:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 0.69 | 22.60 | 335.62 | -9.49 | 27.18 | 0.3346 | -850.0 | -670.2 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 24.31 | 332.76 | -12.35 | 30.91 | 0.3810 | -793.0 | -569.2 | |
| 0.00 | 2.18 | 0.00 | 1.17 | 24.50 | 332.51 | -12.60 | 31.13 | 0.3856 | -919.0 | -746.6 | |
| 0.00 | 2.09 | 0.00 | 1.11 | 22.64 | 332.65 | -12.45 | 33.75 | 0.3598 | -865.0 | -667.8 | |
| 0.00 | 1.74 | 0.00 | 0.94 | 25.06 | 332.04 | -13.07 | 31.21 | 0.3969 | -822.0 | -654.0 | |
| 0.00 | 1.74 | 0.00 | 0.93 | 22.71 | 331.32 | -13.79 | 36.29 | 0.3731 | -763.0 | -457.5 | |
| 0.00 | 1.39 | 0.00 | 0.75 | 22.60 | 330.53 | -14.58 | 37.96 | 0.3795 | -795.0 | -624.3 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 22.38 | 330.39 | -14.72 | 38.61 | 0.3782 | -638.0 | -510.5 | |
| 0.00 | 0.61 | 0.00 | 0.33 | 23.03 | 330.05 | -15.06 | 38.08 | 0.3894 | -796.0 | -586.9 | |
| 0.00 | 2.26 | 0.00 | 1.21 | 21.18 | 328.68 | -16.42 | 43.79 | 0.3826 | -873.0 | -734.5 | |
| 0.00 | 1.74 | 0.00 | 1.00 | 28.51 | 324.99 | -20.12 | 37.29 | 0.5010 | 776.0 | 602.5 | |
| 0.00 | 1.48 | 0.00 | 0.85 | 26.54 | 322.28 | -22.83 | 43.42 | 0.5070 | 758.0 | 598.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
