groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11324 232.86 914.51 152.26 594.34 11.73 304.94 -40.17 78.28 0.6457 40.3 48.3


previous   or   next   observation for the same group / back to the solar disc

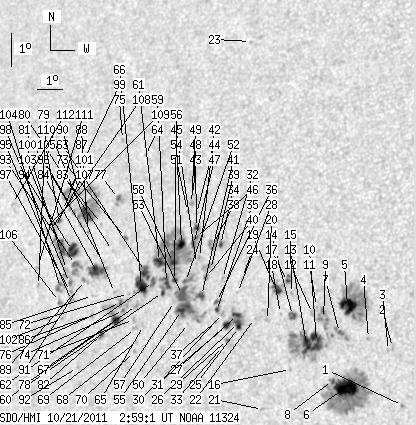

SDO HMI 2011-10-21 02:59:01 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 1.13 0.00 0.66 8.90 312.74 -32.37 81.93 0.5364 574.0 488.6
2 0.00 1.48 0.00 0.87 10.61 312.19 -32.92 78.86 0.5466 -711.0 -600.9
3 0.00 1.74 0.00 1.03 10.52 312.05 -33.05 79.06 0.5483 -610.0 -487.7
4 0.00 1.31 0.00 0.78 10.84 311.28 -33.82 78.63 0.5598 -888.0 -764.6
5 17.34 73.35 10.47 44.18 11.79 310.38 -34.73 77.16 0.5742 -1010.3 -474.7
6 24.57 138.33 14.75 82.96 9.33 310.62 -34.49 81.41 0.5672 -1136.2 -455.8
7 1.22 9.41 0.74 5.68 10.96 310.20 -34.91 78.62 0.5753 -949.6 -796.8
8 1.48 -6.00 0.89 -6.00 9.52 310.12 -34.99 81.15 0.5745 -549.2 999999
9 0.00 15.16 0.00 9.24 11.35 309.55 -35.56 78.08 0.5850 -658.0 -713.1
10 13.76 78.58 8.40 48.15 10.65 309.38 -35.73 79.31 0.5862 -968.3 -303.8
11 0.00 0.70 0.00 0.43 11.69 309.23 -35.88 77.56 0.5899 -587.0 -457.0
12 0.00 2.70 0.00 1.66 11.48 309.11 -35.99 77.95 0.5912 -605.0 -463.8
13 9.93 -10.00 6.09 -10.00 10.54 309.02 -36.09 79.55 0.5911 -755.8 999999
14 4.79 5.31 2.96 3.29 11.37 308.37 -36.74 78.25 0.6012 -662.2 -662.7
15 0.00 1.31 0.00 0.81 12.03 308.23 -36.88 77.20 0.6041 -560.0 -533.5
16 0.00 1.05 0.00 0.64 9.76 308.52 -36.59 80.93 0.5971 -554.0 -437.1
17 1.66 4.70 1.03 2.93 12.38 308.02 -37.09 76.66 0.6076 -809.8 -593.1
18 0.00 0.70 0.00 0.43 11.41 307.91 -37.20 78.28 0.6076 -549.0 -409.5
19 5.58 12.89 3.48 8.06 12.12 307.64 -37.47 77.17 0.6123 -764.7 -506.3
20 0.00 2.00 0.00 1.25 11.17 307.44 -37.66 78.74 0.6135 -452.0 -273.9
21 0.00 1.92 0.00 1.19 8.51 307.61 -37.50 83.09 0.6087 -739.0 -560.2
22 0.00 0.87 0.00 0.55 11.20 306.94 -38.17 78.77 0.6204 666.0 581.9
23 0.00 0.96 0.00 0.63 19.54 304.90 -40.21 66.48 0.6659 -689.0 -591.3
24 0.00 0.96 0.00 0.61 12.40 306.27 -38.84 76.97 0.6310 -451.0 -374.8
25 1.66 24.22 1.05 15.42 10.90 306.36 -38.75 79.34 0.6277 -461.5 546.7
26 2.53 -25.00 1.60 -25.00 11.05 306.34 -38.77 79.11 0.6282 520.6 999999
27 2.79 -25.00 1.77 -25.00 11.28 306.26 -38.85 78.74 0.6295 990.5 999999
28 0.00 0.87 0.00 0.56 11.94 306.15 -38.96 77.72 0.6318 -307.0 -248.2
29 1.57 1.83 1.00 1.17 10.52 305.99 -39.12 80.00 0.6322 -627.1 -637.0
30 3.83 -25.00 2.45 -25.00 10.93 305.89 -39.22 79.35 0.6340 -555.3 999999
31 0.00 2.18 0.00 1.40 11.28 305.67 -39.44 78.83 0.6373 882.0 637.2
32 0.00 1.22 0.00 0.79 12.33 305.49 -39.62 77.23 0.6411 -485.0 -348.7
33 0.00 0.96 0.00 0.61 10.29 305.83 -39.28 80.36 0.6342 -377.0 -306.7
34 2.00 2.35 1.30 1.52 13.34 305.22 -39.89 75.71 0.6463 -719.7 -621.8
35 1.31 3.14 0.84 2.02 11.36 305.42 -39.69 78.75 0.6407 825.5 783.6
36 1.48 3.66 0.95 2.36 11.62 305.38 -39.73 78.34 0.6416 683.2 583.0
37 0.00 0.96 0.00 0.62 11.02 305.44 -39.67 79.26 0.6401 -443.0 -369.5
38 0.00 8.36 0.00 5.44 13.35 304.93 -40.18 75.74 0.6499 -587.0 -509.9
39 0.00 0.70 0.00 0.45 12.57 304.97 -40.14 76.94 0.6483 -344.0 -386.2
40 1.22 9.84 0.79 6.40 12.32 304.81 -40.30 77.35 0.6499 -389.9 -93.2
41 2.35 73.52 1.53 48.12 11.77 304.75 -40.36 78.21 0.6499 -717.7 396.2
42 0.00 1.22 0.00 0.80 12.90 304.46 -40.65 76.52 0.6553 370.0 322.6
43 2.18 141.82 1.43 94.20 13.79 304.15 -40.96 75.23 0.6607 -684.0 238.3
44 0.00 1.22 0.00 0.80 14.21 304.06 -41.05 74.62 0.6626 -680.0 -531.5
45 0.00 0.70 0.00 0.46 12.71 304.37 -40.74 76.82 0.6561 642.0 623.2
46 2.00 -43.00 1.32 -43.00 13.49 304.18 -40.93 75.68 0.6598 -658.5 999999
47 1.83 -43.00 1.20 -43.00 13.27 304.14 -40.97 76.01 0.6600 -584.9 999999
48 0.00 0.78 0.00 0.52 14.77 303.81 -41.30 73.83 0.6668 -635.0 -520.6
49 0.00 2.26 0.00 1.50 14.50 303.79 -41.32 74.24 0.6665 -784.0 -585.1
50 0.00 0.26 0.00 0.17 10.90 304.38 -40.73 79.58 0.6538 389.0 343.0
51 0.00 1.05 0.00 0.69 14.25 303.68 -41.43 74.64 0.6674 -383.0 -354.8
52 0.87 -41.00 0.57 -41.00 12.15 304.04 -41.07 77.73 0.6596 768.1 999999
53 10.71 -41.00 7.04 -41.00 11.75 303.99 -41.12 78.34 0.6598 403.0 999999
54 4.44 -43.00 2.94 -43.00 13.24 303.65 -41.45 76.14 0.6661 -836.9 999999
55 3.31 -41.00 2.17 -41.00 11.27 304.03 -41.08 79.06 0.6586 922.3 999999
56 2.00 -43.00 1.33 -43.00 12.15 303.59 -41.52 77.79 0.6654 917.2 999999
57 0.00 1.39 0.00 0.92 11.52 303.70 -41.41 78.72 0.6631 541.0 512.1
58 3.31 -43.00 2.20 -43.00 12.69 303.44 -41.67 77.01 0.6679 959.8 999999
59 6.01 -43.00 4.00 -43.00 12.07 303.27 -41.83 77.96 0.6692 905.3 999999
60 2.26 -43.00 1.51 -43.00 11.76 303.17 -41.94 78.43 0.6702 -275.8 999999
61 6.10 -43.00 4.08 -43.00 12.68 302.86 -42.25 77.11 0.6752 818.4 999999
62 3.92 40.51 2.63 27.31 12.07 302.74 -42.37 78.03 0.6760 833.7 607.6
63 7.32 -62.00 4.94 -62.00 12.34 302.35 -42.76 77.68 0.6812 780.3 999999
64 0.00 0.52 0.00 0.36 15.82 301.53 -43.58 72.79 0.6967 -303.0 -330.8
65 0.00 2.00 0.00 1.34 10.73 302.57 -42.54 80.03 0.6768 391.0 413.2
66 12.98 -62.00 8.77 -62.00 11.92 302.27 -42.84 78.31 0.6817 785.8 999999
67 0.00 5.05 0.00 3.41 11.31 302.18 -42.93 79.22 0.6823 754.0 596.8
68 0.00 0.70 0.00 0.47 10.23 302.37 -42.74 80.78 0.6790 597.0 537.6
69 0.00 2.53 0.00 1.70 10.62 302.26 -42.85 80.22 0.6806 466.0 425.9
70 0.00 1.39 0.00 0.94 9.93 302.33 -42.78 81.23 0.6792 651.0 560.9
71 0.00 2.18 0.00 1.47 10.88 302.13 -42.98 79.85 0.6825 567.0 474.8
72 0.00 1.39 0.00 0.95 11.64 301.78 -43.33 78.77 0.6876 313.0 286.7
73 1.31 2.18 0.90 1.50 13.31 301.30 -43.81 76.43 0.6954 -430.6 -316.7
74 0.96 28.83 0.65 19.72 11.12 301.67 -43.44 79.54 0.6885 -407.2 120.9
75 0.00 1.39 0.00 0.98 16.24 300.41 -44.70 72.44 0.7107 679.0 529.2
76 1.05 -74.00 0.71 -74.00 11.35 301.50 -43.61 79.22 0.6908 -207.8 999999
77 1.39 6.79 0.97 4.72 14.46 300.72 -44.39 74.88 0.7040 951.8 649.7
78 5.75 -74.00 3.93 -74.00 10.80 301.39 -43.72 80.03 0.6916 -796.2 999999
79 0.00 1.22 0.00 0.84 11.64 301.19 -43.92 78.85 0.6948 650.0 540.9
80 0.00 0.78 0.00 0.54 12.88 300.84 -44.27 77.10 0.7004 535.0 437.0
81 0.00 1.05 0.00 0.73 12.50 300.53 -44.57 77.68 0.7037 510.0 454.7
82 2.09 3.92 1.44 2.70 10.35 300.88 -44.23 80.72 0.6976 -560.0 -617.1
83 0.00 0.61 0.00 0.43 13.66 300.18 -44.93 76.09 0.7093 617.0 605.6
84 12.54 19.34 8.75 13.48 12.24 300.29 -44.82 78.08 0.7064 853.2 742.5
85 0.00 0.70 0.00 0.49 11.49 300.27 -44.83 79.15 0.7058 632.0 497.4
86 0.00 1.39 0.00 0.97 10.89 300.35 -44.76 80.00 0.7045 -394.0 -284.1
87 0.00 1.22 0.00 0.86 13.35 299.69 -45.42 76.59 0.7148 675.0 633.2
88 10.11 48.35 7.17 34.27 13.89 299.47 -45.64 75.88 0.7181 969.3 621.0
89 0.00 2.79 0.00 1.96 11.91 299.88 -45.23 78.59 0.7110 489.0 599.2
90 0.00 3.14 0.00 2.25 14.53 298.99 -46.12 75.06 0.7245 624.0 510.9
91 0.00 0.87 0.00 0.61 11.68 299.63 -45.48 78.93 0.7138 779.0 629.2
92 0.00 0.78 0.00 0.55 9.30 300.03 -45.08 82.27 0.7075 678.0 588.2
93 3.57 10.54 2.53 7.46 12.36 299.35 -45.76 78.01 0.7178 769.4 712.6
94 11.76 33.71 8.37 24.15 12.77 299.12 -45.99 77.47 0.7209 830.3 411.1
95 0.00 2.18 0.00 1.54 11.28 299.41 -45.70 79.52 0.7162 786.0 711.8
96 0.00 3.92 0.00 2.82 14.11 298.70 -46.41 75.68 0.7273 519.0 475.2
97 0.00 1.48 0.00 1.05 11.54 299.31 -45.80 79.16 0.7175 664.0 632.2
98 1.48 5.23 1.05 3.72 11.81 299.21 -45.90 78.80 0.7190 651.3 526.0
99 0.00 8.10 0.00 5.85 14.43 298.47 -46.63 75.27 0.7303 541.0 455.4
100 0.00 2.00 0.00 1.43 12.19 298.99 -46.12 78.29 0.7218 655.0 531.7
101 0.00 1.66 0.00 1.20 13.94 298.38 -46.73 75.96 0.7308 552.0 407.6
102 0.00 1.05 0.00 0.74 10.71 299.12 -45.98 80.33 0.7191 497.0 513.8
103 9.84 -94.00 7.07 -94.00 12.83 298.62 -46.49 77.45 0.7268 592.1 999999
104 0.00 7.14 0.00 5.11 11.63 298.85 -46.26 79.08 0.7231 466.0 496.7
105 0.70 2.09 0.50 1.51 13.63 298.33 -46.78 76.38 0.7310 516.6 508.8
106 0.00 2.96 0.00 2.11 11.21 298.89 -46.22 79.65 0.7222 627.0 532.8
107 0.00 3.75 0.00 2.72 13.40 298.16 -46.95 76.71 0.7327 403.0 263.7
108 0.00 1.92 0.00 1.40 13.20 297.89 -47.21 77.01 0.7356 321.0 197.3
109 0.00 0.87 0.00 0.64 13.34 297.72 -47.39 76.84 0.7377 425.0 342.7
110 0.00 1.13 0.00 0.82 11.63 297.86 -47.24 79.17 0.7346 412.0 317.5
111 0.00 0.96 0.00 0.70 12.16 297.70 -47.41 78.45 0.7369 412.0 336.1
112 0.00 1.13 0.00 0.85 13.99 296.06 -49.05 76.17 0.7570 482.0 421.8


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
