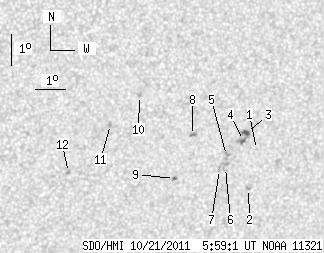

SDO HMI 2011-10-21 05:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.80 | 30.92 | 2.76 | 17.72 | -15.62 | 5.21 | 21.75 | 225.28 | 0.5038 | 296.7 | 334.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-21 05:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.45 | -15.70 | 6.90 | 23.44 | 227.35 | 0.5227 | 620.0 | 509.0 | |
| 0.00 | 1.66 | 0.00 | 0.97 | -16.95 | 6.79 | 23.33 | 225.43 | 0.5338 | 921.0 | 688.9 | |
| 2.88 | 8.36 | 1.66 | 4.82 | -15.14 | 6.50 | 23.04 | 227.68 | 0.5129 | 865.8 | 676.9 | |
| 0.96 | -3.00 | 0.55 | -3.00 | -15.40 | 6.43 | 22.96 | 227.22 | 0.5145 | 735.2 | 999999 | |
| 0.00 | 4.09 | 0.00 | 2.36 | -15.86 | 5.91 | 22.45 | 225.90 | 0.5135 | 788.0 | 702.3 | |
| 0.00 | 4.79 | 0.00 | 2.77 | -16.24 | 5.92 | 22.46 | 225.37 | 0.5175 | 569.0 | 534.0 | |
| 0.00 | 2.09 | 0.00 | 1.21 | -16.30 | 5.73 | 22.26 | 225.04 | 0.5160 | 639.0 | 489.5 | |
| 0.00 | 1.83 | 0.00 | 1.04 | -15.17 | 4.70 | 21.23 | 225.34 | 0.4934 | 870.0 | 846.1 | |
| 0.96 | 1.13 | 0.55 | 0.65 | -16.53 | 4.25 | 20.78 | 222.76 | 0.5031 | -633.2 | -616.3 | |
| 0.00 | 2.27 | 0.00 | 1.26 | -13.84 | 2.83 | 19.36 | 224.77 | 0.4590 | -800.0 | -612.3 | |
| 0.00 | 2.00 | 0.00 | 1.12 | -14.73 | 1.96 | 18.50 | 222.09 | 0.4596 | -854.0 | -667.1 | |
| 0.00 | 1.92 | 0.00 | 1.07 | -16.23 | 0.73 | 17.26 | 218.00 | 0.4647 | -757.0 | -649.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
