SDO HMI 2011-10-21 05:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.29 | 0.00 | 7.77 | 24.66 | 328.50 | -14.97 | 34.96 | 0.4088 | -222.4 | -223.6 | |
|
previous
or next observation for the same group /

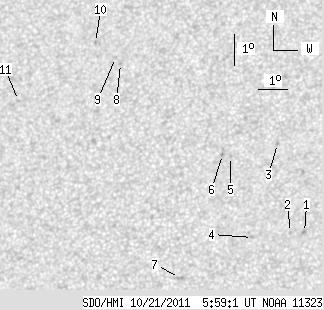

back to the solar disc SDO HMI 2011-10-21 05:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.39 | 0.00 | 0.74 | 22.66 | 332.73 | -10.74 | 29.99 | 0.3455 | -1008.0 | -825.1 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 22.65 | 332.27 | -11.20 | 31.03 | 0.3492 | -812.0 | -552.6 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 25.44 | 331.58 | -11.89 | 28.38 | 0.3931 | -766.0 | -485.8 | |
| 0.00 | 1.48 | 0.00 | 0.79 | 22.47 | 331.03 | -12.44 | 33.98 | 0.3577 | -672.0 | -602.4 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 25.00 | 330.03 | -13.43 | 31.95 | 0.3995 | -688.0 | -561.6 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 25.06 | 329.76 | -13.71 | 32.37 | 0.4027 | -669.0 | -627.2 | |
| 0.00 | 2.79 | 0.00 | 1.48 | 21.18 | 328.74 | -14.73 | 40.81 | 0.3643 | -701.0 | -651.4 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 27.88 | 325.83 | -17.64 | 34.75 | 0.4718 | 811.0 | 692.4 | |
| 0.00 | 1.31 | 0.00 | 0.74 | 28.07 | 325.62 | -17.85 | 34.80 | 0.4759 | 699.0 | 476.3 | |
| 0.00 | 1.31 | 0.00 | 0.74 | 28.54 | 324.82 | -18.65 | 35.28 | 0.4883 | 619.0 | 517.3 | |
| 0.00 | 1.22 | 0.00 | 0.69 | 26.59 | 322.43 | -21.04 | 41.19 | 0.4894 | 741.0 | 584.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
