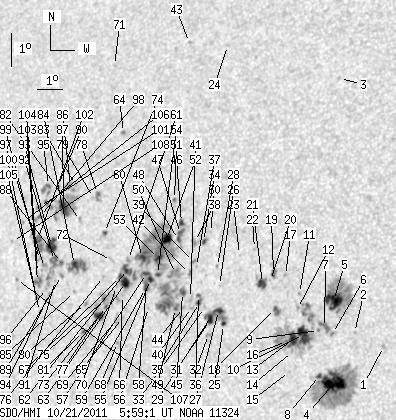

SDO HMI 2011-10-21 05:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 196.24 | 882.36 | 125.06 | 560.90 | 11.83 | 304.84 | -38.62 | 77.86 | 0.6257 | -69.6 | 78.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-21 05:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.74 | 0.00 | 1.01 | 10.51 | 312.35 | -31.12 | 78.63 | 0.5203 | -839.0 | -588.8 | |
| 0.00 | 1.13 | 0.00 | 0.66 | 10.88 | 311.27 | -32.20 | 78.19 | 0.5367 | -723.0 | -647.6 | |
| 0.00 | 1.13 | 0.00 | 0.69 | 18.50 | 309.40 | -34.06 | 65.52 | 0.5858 | -459.0 | -485.9 | |
| 22.04 | 135.91 | 12.98 | 79.95 | 9.32 | 310.69 | -32.77 | 81.18 | 0.5427 | -1150.0 | -480.1 | |
| 20.21 | 71.44 | 11.98 | 42.26 | 11.80 | 310.39 | -33.07 | 76.72 | 0.5510 | -1001.5 | -441.2 | |
| 0.00 | 1.83 | 0.00 | 1.08 | 10.81 | 310.48 | -32.98 | 78.49 | 0.5478 | -1012.0 | -881.1 | |
| 0.00 | 5.49 | 0.00 | 3.26 | 10.97 | 310.17 | -33.29 | 78.25 | 0.5526 | -1008.0 | -914.3 | |
| 2.09 | -4.00 | 1.24 | -4.00 | 9.53 | 310.16 | -33.30 | 80.87 | 0.5506 | -505.1 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.41 | 10.87 | 309.97 | -33.50 | 78.48 | 0.5553 | -1068.0 | -900.5 | |
| 14.20 | 86.51 | 8.49 | 51.91 | 10.72 | 309.43 | -34.03 | 78.85 | 0.5626 | -976.2 | -401.1 | |
| 0.00 | 0.96 | 0.00 | 0.58 | 11.94 | 309.12 | -34.34 | 76.77 | 0.5692 | -679.0 | -559.6 | |
| 0.00 | 1.31 | 0.00 | 0.79 | 11.49 | 309.11 | -34.35 | 77.56 | 0.5685 | -647.0 | -512.5 | |
| 9.15 | -10.00 | 5.49 | -10.00 | 10.55 | 309.05 | -34.41 | 79.22 | 0.5678 | -768.4 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.58 | 10.19 | 309.10 | -34.37 | 79.84 | 0.5666 | -394.0 | -379.3 | |
| 0.00 | 0.87 | 0.00 | 0.52 | 9.59 | 309.06 | -34.41 | 80.91 | 0.5664 | -618.0 | -528.1 | |
| 0.78 | -10.00 | 0.47 | -10.00 | 10.48 | 308.84 | -34.63 | 79.38 | 0.5707 | -469.4 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.74 | 12.45 | 308.52 | -34.94 | 76.03 | 0.5785 | -698.0 | -607.6 | |
| 0.87 | 5.40 | 0.53 | 3.27 | 11.45 | 308.30 | -35.17 | 77.81 | 0.5797 | -683.6 | -635.8 | |
| 2.79 | 3.92 | 1.70 | 2.39 | 12.49 | 308.07 | -35.40 | 76.08 | 0.5849 | -669.4 | -586.7 | |
| 0.00 | 0.78 | 0.00 | 0.48 | 12.27 | 307.99 | -35.48 | 76.46 | 0.5855 | -571.0 | -525.7 | |
| 6.19 | 10.11 | 3.79 | 6.19 | 12.17 | 307.70 | -35.76 | 76.70 | 0.5892 | -776.7 | -527.1 | |
| 0.00 | 1.66 | 0.00 | 1.02 | 13.20 | 307.23 | -36.23 | 75.09 | 0.5978 | -683.0 | -465.5 | |
| 0.00 | 0.87 | 0.00 | 0.54 | 12.99 | 306.69 | -36.77 | 75.57 | 0.6046 | -557.0 | -433.6 | |
| 0.00 | 0.87 | 0.00 | 0.56 | 19.28 | 304.81 | -38.66 | 66.28 | 0.6464 | -649.0 | -548.0 | |
| 1.39 | 25.35 | 0.87 | 15.80 | 10.86 | 306.42 | -37.04 | 79.13 | 0.6047 | -491.6 | 328.6 | |
| 0.00 | 0.70 | 0.00 | 0.44 | 12.02 | 306.09 | -37.38 | 77.28 | 0.6109 | -441.0 | -356.9 | |
| 3.31 | -25.00 | 2.06 | -25.00 | 11.27 | 306.17 | -37.30 | 78.50 | 0.6087 | 943.3 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.76 | 12.58 | 305.92 | -37.55 | 76.40 | 0.6142 | -478.0 | -453.9 | |
| 1.22 | -25.00 | 0.76 | -25.00 | 11.10 | 305.93 | -37.54 | 78.81 | 0.6118 | 265.1 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.49 | 13.59 | 305.46 | -38.00 | 74.89 | 0.6222 | -654.0 | -536.9 | |
| 3.31 | -25.00 | 2.07 | -25.00 | 10.95 | 305.87 | -37.59 | 79.06 | 0.6123 | -533.5 | 999999 | |
| 0.00 | 2.70 | 0.00 | 1.69 | 10.53 | 305.89 | -37.57 | 79.75 | 0.6115 | -597.0 | -455.4 | |
| 0.00 | 0.87 | 0.00 | 0.55 | 11.33 | 305.62 | -37.84 | 78.49 | 0.6162 | 701.0 | 612.7 | |
| 1.57 | 2.88 | 0.99 | 1.82 | 13.30 | 305.24 | -38.22 | 75.39 | 0.6245 | -741.7 | -677.3 | |
| 2.09 | 5.84 | 1.32 | 3.68 | 11.47 | 305.41 | -38.06 | 78.30 | 0.6193 | 776.6 | 666.8 | |
| 0.44 | -35.00 | 0.27 | -35.00 | 11.67 | 305.33 | -38.13 | 77.98 | 0.6205 | 790.0 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.55 | 12.54 | 305.11 | -38.36 | 76.64 | 0.6249 | -584.0 | -490.7 | |
| 0.00 | 4.79 | 0.00 | 3.05 | 13.28 | 304.89 | -38.57 | 75.50 | 0.6291 | -568.0 | -435.9 | |
| 0.00 | 2.27 | 0.00 | 1.44 | 12.68 | 304.97 | -38.50 | 76.44 | 0.6270 | -460.0 | -317.7 | |
| 0.00 | 1.39 | 0.00 | 0.88 | 11.30 | 305.12 | -38.34 | 78.61 | 0.6228 | -633.0 | -467.8 | |
| 0.00 | 2.96 | 0.00 | 1.87 | 11.57 | 305.04 | -38.43 | 78.20 | 0.6243 | 115.0 | 70.9 | |
| 0.00 | 2.88 | 0.00 | 1.82 | 12.31 | 304.87 | -38.59 | 77.04 | 0.6276 | -514.0 | -360.7 | |
| 0.00 | 1.22 | 0.00 | 0.81 | 19.28 | 303.25 | -40.22 | 66.84 | 0.6652 | -601.0 | -507.2 | |
| 0.00 | 1.39 | 0.00 | 0.88 | 11.28 | 304.81 | -38.65 | 78.69 | 0.6269 | -425.0 | -335.4 | |
| 2.88 | 242.72 | 1.83 | 156.93 | 11.73 | 304.70 | -38.77 | 78.00 | 0.6290 | -699.4 | 342.1 | |
| 2.79 | -45.00 | 1.79 | -45.00 | 13.82 | 304.27 | -39.19 | 74.79 | 0.6382 | -645.2 | 999999 | |
| 1.92 | -45.00 | 1.23 | -45.00 | 13.49 | 304.30 | -39.16 | 75.30 | 0.6372 | -679.0 | 999999 | |
| 1.31 | -45.00 | 0.84 | -45.00 | 13.30 | 304.26 | -39.21 | 75.60 | 0.6374 | -630.1 | 999999 | |
| 0.70 | -45.00 | 0.44 | -45.00 | 11.23 | 304.51 | -38.96 | 78.81 | 0.6310 | 832.5 | 999999 | |
| 0.00 | 10.02 | 0.00 | 6.41 | 12.28 | 304.33 | -39.14 | 77.19 | 0.6348 | 391.0 | 456.4 | |
| 0.44 | 1.39 | 0.28 | 0.90 | 14.50 | 303.85 | -39.61 | 73.84 | 0.6450 | -705.6 | -603.8 | |
| 7.06 | -45.00 | 4.55 | -45.00 | 13.28 | 303.79 | -39.68 | 75.74 | 0.6435 | -770.3 | 999999 | |
| 2.53 | -45.00 | 1.63 | -45.00 | 12.69 | 303.58 | -39.89 | 76.68 | 0.6452 | 1073.4 | 999999 | |
| 1.66 | -45.00 | 1.07 | -45.00 | 12.21 | 303.63 | -39.84 | 77.42 | 0.6438 | 986.9 | 999999 | |
| 2.44 | -45.00 | 1.58 | -45.00 | 12.04 | 303.38 | -40.09 | 77.72 | 0.6468 | 953.7 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.56 | 11.20 | 303.44 | -40.02 | 79.01 | 0.6449 | 716.0 | 597.6 | |
| 2.27 | -45.00 | 1.47 | -45.00 | 12.21 | 303.19 | -40.28 | 77.49 | 0.6496 | 922.0 | 999999 | |
| 1.74 | -45.00 | 1.13 | -45.00 | 11.91 | 303.24 | -40.22 | 77.94 | 0.6484 | 338.9 | 999999 | |
| 2.61 | -45.00 | 1.70 | -45.00 | 11.76 | 303.23 | -40.24 | 78.17 | 0.6484 | -370.8 | 999999 | |
| 3.05 | -45.00 | 1.99 | -45.00 | 12.68 | 302.94 | -40.53 | 76.81 | 0.6535 | 1003.3 | 999999 | |
| 0.00 | 1.74 | 0.00 | 1.15 | 12.59 | 302.39 | -41.08 | 77.04 | 0.6604 | 712.0 | 595.0 | |
| 5.92 | -45.00 | 3.90 | -45.00 | 12.29 | 302.41 | -41.06 | 77.50 | 0.6597 | 723.1 | 999999 | |
| 6.19 | -45.00 | 4.06 | -45.00 | 11.89 | 302.40 | -41.07 | 78.09 | 0.6593 | 960.6 | 999999 | |
| 0.00 | 1.83 | 0.00 | 1.23 | 16.39 | 301.30 | -42.16 | 71.63 | 0.6808 | -747.0 | -592.9 | |
| 0.00 | 0.70 | 0.00 | 0.46 | 10.84 | 302.46 | -41.00 | 79.68 | 0.6573 | 719.0 | 632.8 | |
| 0.00 | 1.39 | 0.00 | 0.92 | 11.50 | 302.35 | -41.12 | 78.70 | 0.6595 | 861.0 | 702.8 | |
| 0.96 | -45.00 | 0.63 | -45.00 | 12.06 | 302.16 | -41.30 | 77.87 | 0.6625 | 595.2 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.69 | 10.08 | 302.38 | -41.08 | 80.84 | 0.6577 | 695.0 | 616.2 | |
| 0.00 | 5.31 | 0.00 | 3.50 | 10.77 | 302.23 | -41.23 | 79.82 | 0.6602 | 618.0 | 519.8 | |
| 0.00 | 0.70 | 0.00 | 0.46 | 11.75 | 302.06 | -41.41 | 78.35 | 0.6635 | 511.0 | 405.8 | |
| 0.00 | 1.39 | 0.00 | 0.96 | 18.39 | 300.34 | -43.13 | 69.02 | 0.6971 | 617.0 | 444.1 | |
| 0.00 | 1.83 | 0.00 | 1.22 | 12.52 | 301.71 | -41.76 | 77.26 | 0.6689 | 187.0 | 217.4 | |
| 1.31 | 29.88 | 0.87 | 19.84 | 11.13 | 301.76 | -41.70 | 79.32 | 0.6666 | -427.1 | 90.0 | |
| 1.48 | 3.40 | 0.99 | 2.28 | 13.34 | 301.25 | -42.22 | 76.11 | 0.6759 | -342.5 | 408.0 | |
| 1.13 | -73.00 | 0.75 | -73.00 | 11.33 | 301.64 | -41.82 | 79.03 | 0.6683 | -268.6 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.58 | 12.02 | 301.47 | -41.99 | 78.03 | 0.6712 | 534.0 | 448.7 | |
| 5.23 | -73.00 | 3.48 | -73.00 | 10.84 | 301.52 | -41.94 | 79.78 | 0.6693 | -837.8 | 999999 | |
| 1.57 | 4.44 | 1.06 | 3.01 | 14.49 | 300.69 | -42.77 | 74.53 | 0.6846 | 851.6 | 755.9 | |
| 0.00 | 1.22 | 0.00 | 0.83 | 14.36 | 300.55 | -42.91 | 74.74 | 0.6860 | 601.0 | 570.6 | |
| 0.00 | 1.48 | 0.00 | 0.99 | 11.17 | 300.89 | -42.58 | 79.37 | 0.6777 | 759.0 | 582.1 | |
| 1.22 | 1.92 | 0.82 | 1.28 | 10.33 | 300.95 | -42.51 | 80.60 | 0.6762 | -639.3 | -720.2 | |
| 0.00 | 2.35 | 0.00 | 1.60 | 13.63 | 300.17 | -43.29 | 75.86 | 0.6896 | 732.0 | 676.6 | |
| 0.00 | 1.13 | 0.00 | 0.78 | 14.70 | 299.70 | -43.76 | 74.41 | 0.6969 | 716.0 | 619.9 | |
| 4.53 | 21.87 | 3.08 | 14.84 | 12.30 | 300.21 | -43.26 | 77.78 | 0.6874 | 847.4 | 730.4 | |
| 0.00 | 0.96 | 0.00 | 0.65 | 11.49 | 300.37 | -43.10 | 78.94 | 0.6845 | 637.0 | 574.0 | |
| 0.00 | 5.92 | 0.00 | 4.09 | 14.62 | 299.51 | -43.96 | 74.55 | 0.6992 | 735.0 | 662.2 | |
| 9.15 | 41.12 | 6.32 | 28.41 | 13.98 | 299.37 | -44.10 | 75.50 | 0.6999 | 920.3 | 622.6 | |
| 1.57 | 20.82 | 1.08 | 14.35 | 12.33 | 299.66 | -43.81 | 77.82 | 0.6942 | 725.4 | 683.0 | |
| 0.00 | 2.27 | 0.00 | 1.55 | 11.94 | 299.74 | -43.73 | 78.37 | 0.6928 | 829.0 | 631.2 | |
| 1.48 | 1.83 | 1.03 | 1.27 | 14.59 | 298.95 | -44.51 | 74.70 | 0.7057 | 557.4 | 636.5 | |
| 0.00 | 0.87 | 0.00 | 0.60 | 11.77 | 299.51 | -43.95 | 78.63 | 0.6954 | 687.0 | 601.2 | |
| 5.84 | -88.00 | 4.03 | -88.00 | 12.37 | 299.35 | -44.12 | 77.80 | 0.6980 | 810.1 | 999999 | |
| 11.41 | 31.28 | 7.90 | 21.78 | 12.81 | 299.12 | -44.34 | 77.20 | 0.7013 | 834.5 | 520.9 | |
| 0.00 | 1.57 | 0.00 | 1.08 | 11.37 | 299.34 | -44.13 | 79.23 | 0.6972 | 855.0 | 733.3 | |
| 1.57 | 10.89 | 1.10 | 7.64 | 14.59 | 298.56 | -44.90 | 74.76 | 0.7104 | 541.7 | 476.6 | |
| 0.00 | 1.13 | 0.00 | 0.78 | 11.51 | 299.18 | -44.28 | 79.04 | 0.6992 | 655.0 | 580.2 | |
| 0.00 | 5.58 | 0.00 | 3.87 | 12.13 | 298.97 | -44.50 | 78.18 | 0.7024 | 570.0 | 547.1 | |
| 0.78 | 4.09 | 0.55 | 2.88 | 13.64 | 298.41 | -45.06 | 76.12 | 0.7109 | 651.3 | 428.8 | |
| 0.00 | 3.31 | 0.00 | 2.31 | 12.36 | 298.71 | -44.76 | 77.89 | 0.7058 | 483.0 | 414.1 | |
| 0.00 | 1.05 | 0.00 | 0.72 | 10.80 | 299.02 | -44.44 | 80.07 | 0.7006 | 728.0 | 564.8 | |
| 0.00 | 3.22 | 0.00 | 2.27 | 13.94 | 298.34 | -45.13 | 75.71 | 0.7121 | 443.0 | 344.2 | |
| 5.49 | -93.00 | 3.84 | -93.00 | 12.95 | 298.49 | -44.98 | 77.08 | 0.7091 | 563.9 | 999999 | |
| 4.36 | 7.84 | 3.03 | 5.45 | 11.69 | 298.76 | -44.71 | 78.82 | 0.7045 | 541.4 | 467.7 | |
| 0.00 | 1.31 | 0.00 | 0.91 | 11.96 | 298.70 | -44.76 | 78.45 | 0.7054 | 427.0 | 331.6 | |
| 0.00 | 1.22 | 0.00 | 0.85 | 11.21 | 298.81 | -44.65 | 79.50 | 0.7035 | 633.0 | 562.1 | |
| 0.00 | 1.39 | 0.00 | 0.99 | 13.41 | 297.72 | -45.75 | 76.53 | 0.7188 | 332.0 | 249.1 | |
| 0.00 | 0.96 | 0.00 | 0.68 | 11.69 | 297.85 | -45.62 | 78.91 | 0.7155 | 469.0 | 339.5 | |
| 0.00 | 1.31 | 0.00 | 0.93 | 12.82 | 297.42 | -46.05 | 77.39 | 0.7216 | 379.0 | 297.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
