SDO HMI 2011-10-21 06:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.33 | 0.00 | 8.39 | 24.56 | 327.19 | -15.73 | 35.85 | 0.4202 | -210.8 | -113.4 | |
|
previous
or next observation for the same group /

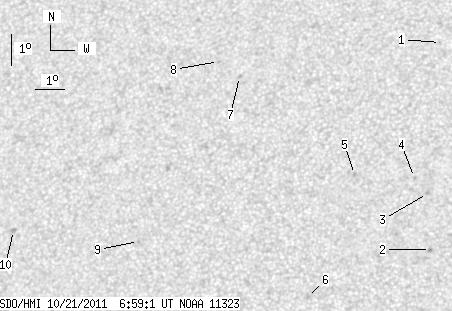

back to the solar disc SDO HMI 2011-10-21 06:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.58 | 29.33 | 332.48 | -10.43 | 21.21 | 0.4383 | -714.0 | -593.2 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 22.72 | 332.74 | -10.18 | 28.61 | 0.3420 | -943.0 | -858.3 | |
| 0.00 | 1.74 | 0.00 | 0.93 | 24.48 | 332.50 | -10.42 | 26.65 | 0.3687 | -887.0 | -642.8 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 24.98 | 332.02 | -10.90 | 27.00 | 0.3793 | -841.0 | -659.5 | |
| 0.00 | 1.57 | 0.00 | 0.85 | 25.03 | 329.99 | -12.93 | 30.95 | 0.3959 | -827.0 | -589.1 | |
| 0.00 | 2.09 | 0.00 | 1.11 | 21.18 | 328.82 | -14.10 | 39.61 | 0.3578 | -868.0 | -541.3 | |
| 0.00 | 1.39 | 0.00 | 0.78 | 28.08 | 325.60 | -17.32 | 34.01 | 0.4714 | 672.0 | 545.5 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 28.54 | 324.77 | -18.15 | 34.57 | 0.4841 | 649.0 | 514.3 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 22.74 | 322.93 | -19.99 | 46.12 | 0.4392 | 857.0 | 700.2 | |
| 0.00 | 2.87 | 0.00 | 1.63 | 22.94 | 318.52 | -24.40 | 50.92 | 0.4921 | 794.0 | 600.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
