SDO HMI 2011-10-21 07:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.10 | 337.15 | 49.61 | 188.51 | -20.97 | 334.49 | -7.88 | 164.01 | 0.4638 | -89.1 | -106.7 | |
|
previous
or next observation for the same group /

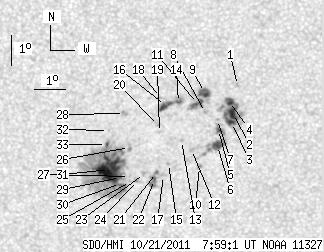

back to the solar disc SDO HMI 2011-10-21 07:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.66 | 0.00 | 0.90 | -18.83 | 337.38 | -4.99 | 168.64 | 0.4200 | 879.0 | 689.4 | |
| 6.10 | 45.39 | 3.35 | 24.95 | -19.75 | 337.22 | -5.15 | 168.75 | 0.4348 | 1172.9 | 690.0 | |
| 3.05 | -2.00 | 1.68 | -2.00 | -20.05 | 337.15 | -5.22 | 168.73 | 0.4396 | 894.4 | 999999 | |
| 4.62 | -2.00 | 2.53 | -2.00 | -19.35 | 337.11 | -5.26 | 168.31 | 0.4290 | 1190.6 | 999999 | |
| 2.61 | 6.45 | 1.44 | 3.56 | -20.28 | 336.73 | -5.65 | 167.97 | 0.4446 | 773.4 | 685.3 | |
| 6.18 | 18.82 | 3.43 | 10.45 | -20.81 | 336.67 | -5.70 | 168.12 | 0.4529 | 908.5 | 607.1 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -19.95 | 336.71 | -5.67 | 167.76 | 0.4396 | 644.0 | 501.4 | |
| 0.00 | 1.57 | 0.00 | 0.86 | -19.72 | 336.33 | -6.04 | 166.85 | 0.4374 | 657.0 | 553.8 | |
| 7.93 | 27.61 | 4.34 | 15.15 | -19.07 | 336.32 | -6.05 | 166.47 | 0.4273 | 1145.1 | 737.6 | |
| 0.00 | 2.18 | 0.00 | 1.22 | -21.52 | 336.06 | -6.31 | 167.27 | 0.4656 | 847.0 | 645.9 | |
| 5.66 | -9.00 | 3.11 | -9.00 | -19.43 | 336.09 | -6.28 | 166.17 | 0.4338 | 864.5 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.21 | -20.96 | 335.83 | -6.54 | 166.51 | 0.4579 | -781.0 | -473.1 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -20.66 | 335.52 | -6.85 | 165.73 | 0.4546 | -906.0 | -754.4 | |
| 2.35 | 13.85 | 1.29 | 7.62 | -19.40 | 335.48 | -6.89 | 164.89 | 0.4357 | 816.3 | 856.8 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -21.43 | 335.07 | -7.30 | 165.29 | 0.4679 | -760.0 | -639.6 | |
| 7.49 | -14.00 | 4.13 | -14.00 | -19.51 | 335.06 | -7.31 | 164.08 | 0.4391 | 827.0 | 999999 | |
| 0.00 | 1.74 | 0.00 | 0.98 | -21.84 | 334.88 | -7.49 | 165.17 | 0.4747 | -593.0 | -416.5 | |
| 0.00 | 1.92 | 0.00 | 1.05 | -19.25 | 334.92 | -7.46 | 163.60 | 0.4358 | 678.0 | 493.2 | |
| 0.00 | 1.57 | 0.00 | 0.87 | -20.40 | 334.83 | -7.54 | 164.19 | 0.4535 | 551.0 | 311.1 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -20.17 | 334.81 | -7.56 | 164.00 | 0.4501 | 810.0 | 493.6 | |
| 1.05 | 10.89 | 0.59 | 6.13 | -21.74 | 334.66 | -7.71 | 164.70 | 0.4741 | -868.7 | -685.8 | |
| 2.87 | -21.00 | 1.62 | -21.00 | -21.98 | 334.59 | -7.79 | 164.69 | 0.4779 | -883.1 | 999999 | |
| 0.00 | 2.79 | 0.00 | 1.57 | -21.78 | 334.27 | -8.10 | 163.99 | 0.4763 | -1079.0 | -836.0 | |
| 0.00 | 2.44 | 0.00 | 1.38 | -22.02 | 334.03 | -8.34 | 163.69 | 0.4808 | -800.0 | -610.6 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -22.06 | 333.80 | -8.57 | 163.29 | 0.4824 | -660.0 | -590.6 | |
| 0.00 | 2.96 | 0.00 | 1.66 | -20.92 | 333.84 | -8.54 | 162.60 | 0.4655 | -875.0 | -796.7 | |
| 0.00 | 1.13 | 0.00 | 0.64 | -21.89 | 333.78 | -8.59 | 163.14 | 0.4800 | -707.0 | -632.4 | |
| 0.00 | 3.14 | 0.00 | 1.74 | -19.79 | 333.74 | -8.63 | 161.60 | 0.4494 | -151.0 | -24.9 | |
| 0.87 | 182.85 | 0.49 | 103.22 | -21.93 | 333.48 | -8.89 | 162.62 | 0.4819 | -800.8 | -423.3 | |
| 1.39 | -29.00 | 0.79 | -29.00 | -22.13 | 333.47 | -8.90 | 162.73 | 0.4849 | -701.8 | 999999 | |
| 35.45 | -29.00 | 19.99 | -29.00 | -21.66 | 333.14 | -9.23 | 161.81 | 0.4797 | -1177.2 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -20.36 | 333.19 | -9.18 | 160.96 | 0.4605 | -725.0 | -578.2 | |
| 1.48 | -29.00 | 0.83 | -29.00 | -20.83 | 333.10 | -9.28 | 161.13 | 0.4678 | -864.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
