group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11324	214.34	882.23	133.72	549.62	11.81	304.78	-37.04	77.59	0.6045	-59.1	101.5

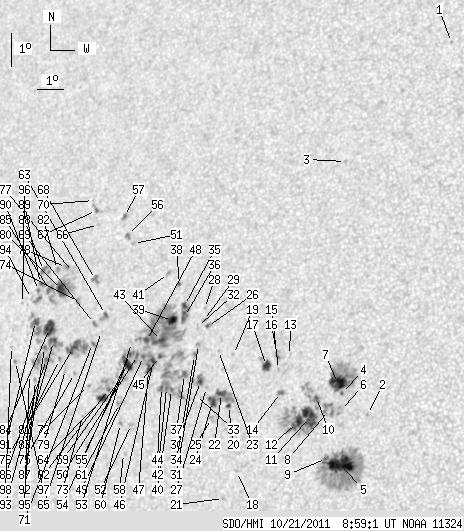

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-10-21 08:59:01 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	1.13	0.00	0.67	22.32	312.59	-29.23	56.22	0.5457	688.0	548.9
2	0.00	1.05	0.00	0.60	10.89	311.52	-30.30	77.67	0.5093	-830.0	-718.6
3	0.00	0.87	0.00	0.52	18.48	309.51	-32.32	64.65	0.5633	-713.0	-544.9
4	0.44	58.36	0.25	33.95	11.47	310.53	-31.30	76.81	0.5250	-949.4	-447.9
5	26.39	137.80	15.26	79.64	9.35	310.73	-31.09	80.83	0.5183	-1075.4	-435.9
6	0.00	4.62	0.00	2.68	10.96	310.55	-31.27	77.77	0.5235	-452.0	-744.2
7	18.55	-4.00	10.81	-4.00	11.80	310.35	-31.48	76.26	0.5283	-942.8	999999
8	0.00	12.80	0.00	7.47	10.94	310.13	-31.70	77.92	0.5297	-424.0	-800.1
9	1.65	-5.00	0.96	-5.00	9.50	310.22	-31.61	80.62	0.5260	-533.1	999999
10	1.39	17.25	0.82	10.13	11.31	309.65	-32.17	77.35	0.5372	-826.8	-697.2
11	18.99	68.55	11.15	40.40	10.70	309.48	-32.35	78.52	0.5386	-940.2	-279.3
12	8.45	-11.00	4.98	-11.00	10.53	309.06	-32.76	78.92	0.5443	-762.6	999999
13	0.00	0.96	0.00	0.57	12.52	308.51	-33.32	75.46	0.5561	-613.0	-485.3
14	2.87	3.40	1.71	2.02	11.39	308.33	-33.49	77.51	0.5562	-706.0	-611.5
15	0.00	1.22	0.00	0.73	12.08	308.17	-33.66	76.33	0.5599	-735.0	-597.6
16	0.78	3.40	0.47	2.03	12.47	308.07	-33.75	75.67	0.5621	-607.8	-506.6
17	6.18	9.67	3.71	5.80	12.18	307.71	-34.11	76.28	0.5665	-773.4	-482.2
18	0.00	1.39	0.00	0.84	8.95	307.02	-34.81	82.06	0.5715	-602.0	-463.6
19	0.00	1.31	0.00	0.80	12.44	306.44	-35.38	76.13	0.5847	-521.0	-443.7
20	1.57	27.70	0.95	16.89	10.91	306.48	-35.35	78.74	0.5814	-373.0	353.5
21	0.00	1.39	0.00	0.84	8.12	306.62	-35.20	83.54	0.5765	-571.0	-483.1
22	4.62	-20.00	2.82	-20.00	11.25	306.17	-35.66	78.21	0.5863	888.2	999999
23	0.00	1.05	0.00	0.64	12.53	305.86	-35.96	76.11	0.5928	-544.0	-442.4
24	5.23	-20.00	3.20	-20.00	10.99	305.87	-35.96	78.70	0.5900	-557.7	999999
25	0.00	3.31	0.00	2.02	10.48	305.90	-35.93	79.56	0.5889	-653.0	-511.9
26	1.39	2.70	0.86	1.67	13.23	305.32	-36.50	75.09	0.6015	-736.8	-799.9
27	0.00	1.05	0.00	0.64	11.40	305.58	-36.24	78.07	0.5946	851.0	645.8
28	0.00	0.78	0.00	0.49	13.76	305.11	-36.71	74.26	0.6055	-659.0	-562.0
29	0.00	1.74	0.00	1.08	13.40	305.14	-36.68	74.85	0.6043	-691.0	-512.7
30	2.53	9.49	1.56	5.87	11.57	305.33	-36.50	77.84	0.5983	813.7	399.7
31	0.00	1.65	0.00	1.03	12.67	305.08	-36.75	76.06	0.6037	-563.0	-387.4
32	0.00	1.65	0.00	1.03	13.21	304.95	-36.88	75.21	0.6065	-523.0	-436.2
33	0.00	0.35	0.00	0.22	11.14	305.20	-36.62	78.58	0.5994	-300.0	-250.0
34	0.00	2.70	0.00	1.68	12.33	304.98	-36.85	76.64	0.6044	-586.0	-348.2
35	2.35	11.50	1.48	7.21	13.81	304.33	-37.49	74.39	0.6160	-655.8	-700.5
36	5.66	-35.00	3.55	-35.00	13.48	304.39	-37.43	74.90	0.6145	-723.7	999999
37	2.61	65.41	1.63	40.92	11.74	304.69	-37.13	77.67	0.6073	-697.1	377.0
38	1.31	1.83	0.82	1.15	14.43	304.02	-37.81	73.48	0.6215	-616.6	-501.0
39	5.92	167.41	3.73	106.23	13.33	303.96	-37.87	75.24	0.6200	-791.8	350.7
40	1.05	-37.00	0.65	-37.00	11.27	304.27	-37.56	78.52	0.6123	700.5	999999
41	0.00	2.26	0.00	1.44	14.74	303.52	-38.30	73.12	0.6287	-537.0	-456.9
42	0.61	-37.00	0.38	-37.00	11.32	304.07	-37.76	78.47	0.6151	854.4	999999
43	2.61	-39.00	1.65	-39.00	12.71	303.64	-38.19	76.31	0.6230	980.2	999999
44	1.39	-37.00	0.88	-37.00	11.30	303.87	-37.95	78.52	0.6176	798.0	999999
45	1.65	3.48	1.04	2.20	12.23	303.65	-38.18	77.08	0.6221	935.3	723.0
46	2.35	-39.00	1.49	-39.00	12.09	303.43	-38.39	77.33	0.6247	923.0	999999
47	2.44	-39.00	1.55	-39.00	11.78	303.29	-38.53	77.85	0.6261	-427.7	999999
48	1.92	-39.00	1.22	-39.00	12.68	303.06	-38.77	76.47	0.6306	928.5	999999
49	1.48	-39.00	0.94	-39.00	12.19	303.03	-38.80	77.25	0.6302	907.8	999999
50	1.83	-39.00	1.17	-39.00	12.21	302.79	-39.04	77.26	0.6334	860.0	999999
51	0.00	1.31	0.00	0.85	15.56	301.94	-39.88	72.27	0.6508	-672.0	-527.9
52	0.00	1.48	0.00	0.94	10.13	302.88	-38.94	80.53	0.6295	357.0	429.1
53	0.00	1.74	0.00	1.12	12.58	302.48	-39.34	76.73	0.6380	770.0	538.7
54	1.48	-39.00	0.95	-39.00	12.22	302.47	-39.36	77.30	0.6376	761.6	999999
55	8.45	-39.00	5.42	-39.00	11.95	302.44	-39.39	77.73	0.6376	852.2	999999
56	1.48	3.22	0.97	2.11	15.79	301.64	-40.18	72.00	0.6551	-541.9	-528.6
57	1.31	2.18	0.86	1.43	16.35	301.38	-40.44	71.22	0.6597	-509.1	-498.5
58	0.00	0.52	0.00	0.33	9.25	302.69	-39.13	81.95	0.6314	593.0	528.2
59	0.00	6.97	0.00	4.48	11.48	302.24	-39.59	78.49	0.6396	719.0	613.8
60	0.00	1.74	0.00	1.11	10.14	302.45	-39.37	80.57	0.6353	729.0	592.3
61	0.00	4.01	0.00	2.57	10.73	302.32	-39.50	79.65	0.6376	768.0	537.1
62	1.22	15.50	0.79	10.04	11.12	301.82	-40.00	79.10	0.6446	-459.9	-84.9
63	1.74	4.44	1.14	2.90	13.36	301.29	-40.54	75.76	0.6547	-312.9	548.3
64	6.18	8.01	4.01	5.19	10.84	301.63	-40.20	79.57	0.6468	-767.2	-470.4
65	0.00	0.78	0.00	0.51	12.84	301.23	-40.59	76.56	0.6546	686.0	496.7
66	0.00	1.13	0.00	0.75	16.05	300.39	-41.44	71.94	0.6713	680.0	493.9
67	0.96	5.05	0.64	3.38	16.46	300.20	-41.63	71.37	0.6746	683.6	552.2
68	0.00	4.01	0.00	2.65	14.38	300.66	-41.16	74.34	0.6645	945.0	779.1
69	0.00	2.35	0.00	1.54	13.06	300.90	-40.92	76.28	0.6591	742.0	640.7
70	0.00	0.96	0.00	0.64	16.76	299.99	-41.83	71.00	0.6778	419.0	398.0
71	0.87	2.79	0.57	1.83	12.46	300.94	-40.88	77.18	0.6578	723.4	743.6
72	0.00	1.39	0.00	0.91	11.20	301.01	-40.82	79.10	0.6553	763.0	610.4
73	0.00	0.78	0.00	0.51	10.26	300.92	-40.90	80.54	0.6555	-479.0	-388.0
74	0.00	2.70	0.00	1.80	13.68	300.12	-41.71	75.49	0.6701	898.0	758.3
75	0.00	1.05	0.00	0.69	11.52	300.38	-41.44	78.68	0.6637	615.0	566.3
76	10.28	24.56	6.81	16.25	12.29	300.20	-41.63	77.55	0.6670	792.4	682.6
77	0.00	1.22	0.00	0.82	14.57	299.67	-42.16	74.27	0.6772	786.0	676.5
78	0.00	2.87	0.00	1.94	14.67	299.39	-42.43	74.17	0.6808	719.0	619.3
79	0.00	2.44	0.00	1.62	11.62	300.00	-41.83	78.59	0.6687	584.0	464.0
80	10.71	44.07	7.22	29.75	14.00	299.34	-42.49	75.17	0.6803	942.8	601.7
81	0.00	1.92	0.00	1.28	11.90	299.70	-42.13	78.20	0.6728	750.0	644.7
82	0.00	2.09	0.00	1.42	14.59	299.03	-42.79	74.36	0.6850	679.0	575.0
83	5.40	77.52	3.63	52.37	12.42	299.35	-42.48	77.48	0.6779	861.4	585.5
84	12.37	-83.00	8.35	-83.00	12.80	299.10	-42.72	76.96	0.6814	793.1	999999
85	3.48	-80.00	2.37	-80.00	13.97	298.84	-42.98	75.30	0.6863	679.6	999999
86	2.18	-83.00	1.47	-83.00	11.87	299.17	-42.66	78.32	0.6795	729.6	999999
87	1.48	-83.00	1.00	-83.00	12.22	299.01	-42.81	77.82	0.6818	670.7	999999
88	2.09	6.62	1.43	4.52	14.52	298.46	-43.37	74.57	0.6919	411.7	457.2
89	1.22	-80.00	0.83	-80.00	14.12	298.42	-43.40	75.15	0.6917	448.0	999999
90	0.87	6.53	0.60	4.46	13.91	298.39	-43.43	75.46	0.6918	424.9	503.2
91	4.36	-83.00	2.97	-83.00	12.97	298.48	-43.35	76.80	0.6894	542.8	999999
92	0.00	1.65	0.00	1.12	11.21	298.83	-42.99	79.32	0.6830	591.0	514.5
93	0.00	1.31	0.00	0.88	10.85	298.90	-42.93	79.84	0.6819	618.0	541.8
94	0.00	0.78	0.00	0.54	13.65	298.15	-43.67	75.87	0.6943	317.0	232.4
95	0.00	0.78	0.00	0.53	11.38	298.55	-43.28	79.11	0.6867	466.0	333.9
96	0.00	0.44	0.00	0.30	13.48	297.81	-44.02	76.18	0.6982	342.0	324.6
97	0.00	1.39	0.00	0.96	11.73	297.89	-43.94	78.68	0.6952	411.0	311.0
98	0.00	0.70	0.00	0.48	12.16	297.63	-44.20	78.08	0.6988	428.0	340.4

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
