SDO HMI 2011-10-21 09:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.04 | 320.76 | 86.27 | 518.28 | 9.37 | 53.72 | 72.44 | 278.17 | 0.9499 | -124.6 | -10.8 | |
|
previous
or next observation for the same group /

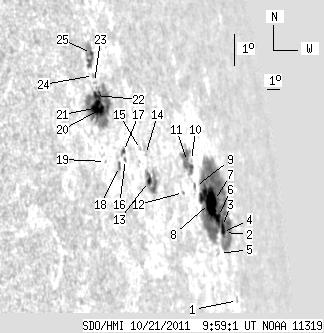

back to the solar disc SDO HMI 2011-10-21 09:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.48 | 0.00 | 3.02 | 5.39 | 57.66 | 76.38 | 274.23 | 0.9713 | -234.0 | -231.0 | |
| 0.44 | 181.33 | 0.85 | 335.60 | 7.51 | 56.99 | 75.71 | 276.36 | 0.9678 | 242.2 | 29.2 | |
| 3.05 | -2.00 | 5.85 | -2.00 | 7.70 | 56.84 | 75.56 | 276.55 | 0.9672 | 424.7 | 999999 | |
| 1.13 | -2.00 | 2.17 | -2.00 | 7.53 | 56.75 | 75.47 | 276.37 | 0.9668 | -106.1 | 999999 | |
| 0.00 | 0.96 | 0.00 | 1.76 | 6.95 | 56.11 | 74.83 | 275.73 | 0.9641 | -313.0 | -301.6 | |
| 1.83 | -2.00 | 3.44 | -2.00 | 8.03 | 56.53 | 75.25 | 276.87 | 0.9657 | 253.3 | 999999 | |
| 4.27 | -2.00 | 7.89 | -2.00 | 8.53 | 56.33 | 75.05 | 277.38 | 0.9646 | 299.7 | 999999 | |
| 25.69 | -2.00 | 45.83 | -2.00 | 8.50 | 55.73 | 74.45 | 277.31 | 0.9619 | -583.7 | 999999 | |
| 0.00 | 2.00 | 0.00 | 3.32 | 9.12 | 54.52 | 73.24 | 277.89 | 0.9558 | -557.0 | -504.2 | |
| 0.00 | 1.05 | 0.00 | 1.74 | 9.91 | 54.53 | 73.26 | 278.72 | 0.9557 | -509.0 | -408.2 | |
| 0.00 | 18.81 | 0.00 | 30.49 | 9.92 | 54.11 | 72.84 | 278.71 | 0.9535 | -791.0 | -564.9 | |
| 0.00 | 0.87 | 0.00 | 1.35 | 9.05 | 53.25 | 71.97 | 277.76 | 0.9491 | -475.0 | -441.6 | |
| 1.65 | 18.72 | 2.23 | 25.56 | 9.64 | 50.31 | 69.03 | 278.26 | 0.9318 | 230.1 | -244.7 | |
| 0.00 | 0.61 | 0.00 | 0.82 | 10.45 | 50.43 | 69.15 | 279.13 | 0.9324 | -387.0 | -327.4 | |
| 0.00 | 1.13 | 0.00 | 1.51 | 10.63 | 50.09 | 68.81 | 279.32 | 0.9302 | 178.0 | 92.2 | |
| 0.00 | 1.57 | 0.00 | 1.98 | 10.45 | 48.76 | 67.48 | 279.08 | 0.9216 | 181.0 | 170.8 | |
| 0.96 | 2.70 | 1.21 | 3.40 | 10.69 | 48.71 | 67.43 | 279.34 | 0.9213 | 304.9 | 159.1 | |
| 0.00 | 2.61 | 0.00 | 3.23 | 10.28 | 48.21 | 66.93 | 278.88 | 0.9180 | 355.0 | 342.5 | |
| 0.00 | 1.05 | 0.00 | 1.25 | 10.52 | 47.23 | 65.96 | 279.12 | 0.9111 | 436.0 | 364.0 | |
| 0.96 | 69.41 | 1.16 | 83.41 | 12.11 | 47.81 | 66.53 | 280.87 | 0.9150 | -207.7 | 105.4 | |
| 10.36 | -20.00 | 12.39 | -20.00 | 12.15 | 47.37 | 66.09 | 280.91 | 0.9119 | 652.5 | 999999 | |
| 1.31 | -20.00 | 1.56 | -20.00 | 12.51 | 47.40 | 66.12 | 281.31 | 0.9121 | 587.3 | 999999 | |
| 0.00 | 0.96 | 0.00 | 1.15 | 12.90 | 47.52 | 66.24 | 281.73 | 0.9130 | 463.0 | 341.2 | |
| 0.00 | 1.74 | 0.00 | 2.10 | 13.11 | 47.56 | 66.28 | 281.97 | 0.9132 | 456.0 | 360.0 | |
| 1.39 | 13.76 | 1.69 | 16.59 | 13.76 | 47.76 | 66.48 | 282.68 | 0.9146 | 144.1 | 278.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
