SDO HMI 2011-10-21 09:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.91 | 67.07 | 10.97 | 35.54 | 18.05 | 324.57 | -16.71 | 50.62 | 0.3547 | 273.5 | 315.5 | |
|
previous
or next observation for the same group /

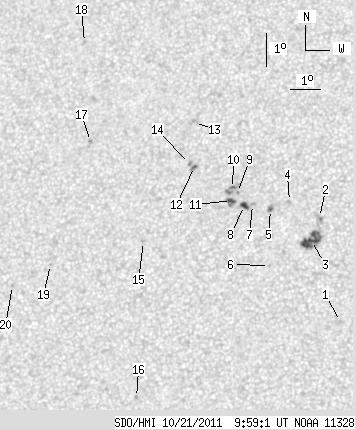

back to the solar disc SDO HMI 2011-10-21 09:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.36 | 14.69 | 328.02 | -13.26 | 53.53 | 0.2772 | 791.0 | 648.1 | |
| 0.00 | 2.70 | 0.00 | 1.41 | 17.83 | 327.12 | -14.16 | 46.86 | 0.3205 | -744.0 | -605.5 | |
| 12.37 | 20.99 | 6.45 | 10.95 | 17.13 | 326.92 | -14.36 | 48.98 | 0.3155 | -1060.4 | -841.7 | |
| 0.00 | 1.48 | 0.00 | 0.78 | 18.30 | 326.11 | -15.17 | 47.65 | 0.3377 | 760.0 | 669.0 | |
| 0.61 | 2.87 | 0.32 | 1.51 | 18.04 | 325.51 | -15.77 | 49.28 | 0.3424 | 1029.6 | 806.7 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 16.33 | 325.63 | -15.65 | 53.27 | 0.3244 | 791.0 | 605.7 | |
| 0.00 | 1.83 | 0.00 | 0.97 | 18.18 | 324.91 | -16.37 | 49.96 | 0.3512 | 872.0 | 775.2 | |
| 3.74 | 4.62 | 1.98 | 2.44 | 18.14 | 324.65 | -16.63 | 50.46 | 0.3541 | 1036.6 | 938.5 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 18.53 | 324.38 | -16.90 | 50.00 | 0.3613 | 1038.0 | 876.8 | |
| 0.00 | 8.01 | 0.00 | 4.26 | 18.65 | 324.21 | -17.07 | 50.01 | 0.3646 | 923.0 | 756.8 | |
| 3.14 | 5.05 | 1.66 | 2.68 | 18.28 | 324.21 | -17.07 | 50.83 | 0.3610 | 947.0 | 914.7 | |
| 1.05 | 2.70 | 0.56 | 1.45 | 19.29 | 322.88 | -18.40 | 50.60 | 0.3873 | 892.1 | 961.9 | |
| 0.00 | 4.01 | 0.00 | 2.17 | 20.64 | 322.71 | -18.57 | 48.07 | 0.4023 | 567.0 | 487.2 | |
| 0.00 | 1.83 | 0.00 | 0.98 | 19.38 | 322.70 | -18.58 | 50.66 | 0.3903 | 824.0 | 690.5 | |
| 0.00 | 1.48 | 0.00 | 0.79 | 16.95 | 321.45 | -19.83 | 57.63 | 0.3859 | 667.0 | 461.8 | |
| 0.00 | 1.48 | 0.00 | 0.78 | 12.23 | 321.66 | -19.62 | 69.23 | 0.3525 | 770.0 | 606.7 | |
| 0.00 | 1.57 | 0.00 | 0.86 | 19.95 | 319.28 | -22.00 | 53.79 | 0.4383 | 788.0 | 669.4 | |
| 0.00 | 2.09 | 0.00 | 1.17 | 23.01 | 318.57 | -22.71 | 48.95 | 0.4731 | 735.0 | 519.8 | |
| 0.00 | 0.87 | 0.00 | 0.48 | 16.15 | 318.43 | -22.85 | 62.55 | 0.4221 | -725.0 | -517.0 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 15.47 | 317.23 | -24.05 | 65.04 | 0.4351 | 675.0 | 462.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
