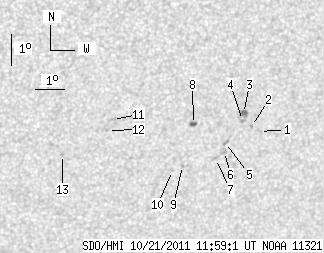

SDO HMI 2011-10-21 11:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.31 | 26.64 | 0.76 | 15.66 | -15.63 | 5.25 | 25.07 | 229.30 | 0.5400 | 155.4 | 339.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-21 11:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.26 | 0.00 | 1.35 | -15.59 | 7.06 | 26.88 | 231.36 | 0.5597 | 571.0 | 429.8 | |
| 0.00 | 1.22 | 0.00 | 0.72 | -15.41 | 6.76 | 26.58 | 231.30 | 0.5548 | 671.0 | 582.5 | |
| 0.00 | 4.53 | 0.00 | 2.68 | -14.98 | 6.42 | 26.24 | 231.58 | 0.5473 | 944.0 | 776.9 | |
| 0.00 | 1.92 | 0.00 | 1.13 | -15.21 | 6.42 | 26.24 | 231.25 | 0.5491 | 815.0 | 700.6 | |
| 0.00 | 2.61 | 0.00 | 1.55 | -15.89 | 5.93 | 25.74 | 229.74 | 0.5496 | 661.0 | 594.9 | |
| 0.00 | 2.70 | 0.00 | 1.60 | -16.18 | 5.93 | 25.75 | 229.33 | 0.5522 | 546.0 | 557.7 | |
| 0.00 | 2.61 | 0.00 | 1.55 | -16.39 | 5.65 | 25.47 | 228.72 | 0.5511 | 613.0 | 446.1 | |
| 1.31 | 2.52 | 0.76 | 1.47 | -15.26 | 4.75 | 24.56 | 229.34 | 0.5307 | 856.3 | 724.3 | |
| 0.00 | 1.31 | 0.00 | 0.77 | -16.57 | 4.54 | 24.36 | 227.22 | 0.5407 | -720.0 | -529.9 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -16.71 | 4.22 | 24.04 | 226.64 | 0.5387 | -655.0 | -370.5 | |
| 0.00 | 2.35 | 0.00 | 1.34 | -15.00 | 1.99 | 21.81 | 226.39 | 0.4976 | -707.0 | -506.1 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -15.34 | 1.86 | 21.68 | 225.71 | 0.4997 | -649.0 | -551.9 | |
| 0.00 | 1.13 | 0.00 | 0.64 | -16.06 | 0.44 | 20.26 | 222.75 | 0.4922 | -758.0 | -539.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
