SDO HMI 2011-10-21 12:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.96 | 293.02 | 80.07 | 528.39 | 9.24 | 53.96 | 74.32 | 278.12 | 0.9595 | -63.4 | -34.3 | |
|
previous
or next observation for the same group /

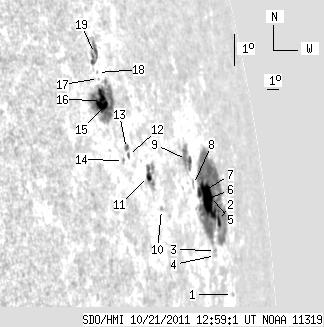

back to the solar disc SDO HMI 2011-10-21 12:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 3.02 | 5.42 | 57.63 | 78.00 | 274.38 | 0.9776 | -214.0 | -220.1 | |
| 3.22 | 173.49 | 6.93 | 357.74 | 7.73 | 56.86 | 77.22 | 276.69 | 0.9740 | 374.4 | 20.5 | |
| 0.00 | 1.92 | 0.00 | 3.88 | 6.90 | 55.99 | 76.36 | 275.78 | 0.9708 | -336.0 | -306.4 | |
| 0.00 | 2.00 | 0.00 | 4.03 | 6.75 | 55.92 | 76.29 | 275.62 | 0.9705 | -407.0 | -342.6 | |
| 5.22 | -2.00 | 10.72 | -2.00 | 8.51 | 56.25 | 76.62 | 277.45 | 0.9714 | 355.0 | 999999 | |
| 19.15 | -2.00 | 37.98 | -2.00 | 8.47 | 55.71 | 76.07 | 277.38 | 0.9692 | -532.6 | 999999 | |
| 0.87 | -2.00 | 1.64 | -2.00 | 8.71 | 54.98 | 75.35 | 277.59 | 0.9659 | -731.2 | 999999 | |
| 0.00 | 2.09 | 0.00 | 3.80 | 9.03 | 54.45 | 74.82 | 277.89 | 0.9635 | -566.0 | -474.2 | |
| 0.00 | 17.24 | 0.00 | 30.74 | 9.82 | 54.12 | 74.49 | 278.69 | 0.9617 | -754.0 | -549.7 | |
| 0.00 | 0.87 | 0.00 | 1.30 | 8.60 | 50.86 | 71.23 | 277.24 | 0.9451 | -392.0 | -321.7 | |
| 2.09 | 16.10 | 3.01 | 23.48 | 9.66 | 50.14 | 70.51 | 278.34 | 0.9408 | 159.6 | -298.6 | |
| 0.00 | 1.57 | 0.00 | 2.12 | 10.42 | 48.73 | 69.10 | 279.10 | 0.9321 | 255.0 | 145.8 | |
| 1.48 | 2.61 | 2.00 | 3.53 | 10.64 | 48.67 | 69.03 | 279.33 | 0.9316 | 291.2 | 196.8 | |
| 0.00 | 1.39 | 0.00 | 1.85 | 10.31 | 48.25 | 68.62 | 278.97 | 0.9291 | 316.0 | 359.9 | |
| 0.96 | 60.24 | 1.24 | 77.23 | 12.09 | 47.73 | 68.09 | 280.88 | 0.9255 | -284.7 | 24.0 | |
| 12.97 | -15.00 | 16.55 | -15.00 | 12.21 | 47.38 | 67.75 | 281.00 | 0.9232 | 576.9 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.89 | 12.87 | 47.50 | 67.87 | 281.72 | 0.9239 | 396.0 | 303.6 | |
| 0.00 | 0.78 | 0.00 | 1.01 | 13.05 | 47.52 | 67.89 | 281.92 | 0.9241 | 424.0 | 331.9 | |
| 0.00 | 10.71 | 0.00 | 13.77 | 13.63 | 47.61 | 67.98 | 282.54 | 0.9246 | 275.0 | 263.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
