SDO HMI 2011-10-21 12:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.07 | 326.98 | 74.93 | 326.90 | 15.49 | 279.28 | -60.35 | 75.19 | 0.8674 | -177.2 | -19.7 | |
|
previous
or next observation for the same group /

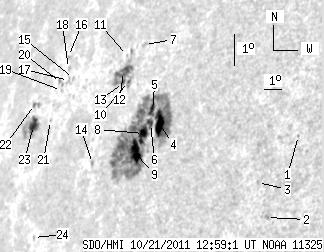

back to the solar disc SDO HMI 2011-10-21 12:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.69 | 15.85 | 288.52 | -51.12 | 73.96 | 0.7814 | -431.0 | -392.9 | |
| 0.00 | 1.74 | 0.00 | 1.39 | 13.29 | 287.77 | -51.87 | 77.30 | 0.7870 | -651.0 | -590.5 | |
| 0.00 | 1.13 | 0.00 | 0.92 | 14.30 | 286.99 | -52.65 | 76.09 | 0.7958 | -507.0 | -331.5 | |
| 15.23 | 249.05 | 14.38 | 240.86 | 15.66 | 281.06 | -58.58 | 74.90 | 0.8531 | -834.8 | -76.4 | |
| 5.48 | -4.00 | 5.27 | -4.00 | 16.01 | 280.46 | -59.17 | 74.53 | 0.8585 | -430.7 | 999999 | |
| 3.66 | -4.00 | 3.50 | -4.00 | 15.62 | 280.53 | -59.10 | 74.99 | 0.8577 | -517.9 | 999999 | |
| 0.00 | 2.09 | 0.00 | 2.10 | 17.93 | 278.94 | -60.69 | 72.42 | 0.8723 | 429.0 | 422.0 | |
| 10.10 | -4.00 | 9.73 | -4.00 | 15.29 | 280.26 | -59.38 | 75.39 | 0.8599 | -579.9 | 999999 | |
| 14.54 | -4.00 | 14.08 | -4.00 | 14.69 | 280.04 | -59.59 | 76.10 | 0.8615 | -591.0 | 999999 | |
| 1.04 | 32.38 | 1.06 | 33.22 | 16.76 | 278.57 | -61.06 | 73.79 | 0.8747 | -402.0 | 221.1 | |
| 0.00 | 0.44 | 0.00 | 0.45 | 17.52 | 278.07 | -61.57 | 72.95 | 0.8791 | 357.0 | 329.2 | |
| 11.40 | -10.00 | 11.73 | -10.00 | 17.03 | 278.09 | -61.54 | 73.51 | 0.8787 | 471.4 | 999999 | |
| 1.57 | -10.00 | 1.60 | -10.00 | 16.70 | 278.27 | -61.36 | 73.87 | 0.8770 | -176.8 | 999999 | |
| 0.00 | 1.92 | 0.00 | 2.00 | 14.15 | 277.55 | -62.09 | 76.81 | 0.8820 | 533.0 | 462.7 | |
| 0.00 | 1.04 | 0.00 | 1.19 | 16.55 | 274.89 | -64.74 | 74.21 | 0.9028 | 517.0 | 452.5 | |
| 0.00 | 0.78 | 0.00 | 0.92 | 17.17 | 274.11 | -65.52 | 73.55 | 0.9085 | 388.0 | 398.4 | |
| 0.00 | 2.44 | 0.00 | 2.81 | 16.46 | 274.58 | -65.05 | 74.31 | 0.9050 | 554.0 | 491.5 | |
| 0.00 | 1.31 | 0.00 | 1.52 | 16.81 | 274.35 | -65.28 | 73.93 | 0.9067 | 478.0 | 441.5 | |
| 0.00 | 1.31 | 0.00 | 1.52 | 16.13 | 274.27 | -65.37 | 74.69 | 0.9071 | 400.0 | 326.5 | |
| 0.00 | 2.96 | 0.00 | 3.48 | 16.35 | 274.05 | -65.59 | 74.45 | 0.9087 | 312.0 | 314.6 | |
| 0.00 | 0.96 | 0.00 | 1.13 | 15.18 | 274.02 | -65.61 | 75.74 | 0.9087 | 398.0 | 356.8 | |
| 1.04 | 3.66 | 1.30 | 4.52 | 15.55 | 272.54 | -67.09 | 75.37 | 0.9189 | 207.2 | 326.0 | |
| 10.01 | 21.68 | 12.28 | 26.78 | 14.93 | 272.86 | -66.77 | 76.04 | 0.9167 | 498.9 | -82.8 | |
| 0.00 | 1.22 | 0.00 | 1.40 | 11.65 | 274.61 | -65.02 | 79.64 | 0.9043 | 296.0 | 237.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
