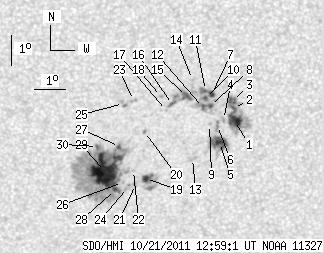

SDO HMI 2011-10-21 12:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 114.73 | 391.64 | 63.62 | 217.58 | -20.91 | 334.54 | -5.09 | 169.53 | 0.4527 | -115.6 | -70.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-21 12:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.40 | 47.88 | 6.25 | 26.23 | -19.94 | 337.31 | -2.32 | 174.91 | 0.4311 | 1043.1 | 525.4 | |
| 1.65 | -1.00 | 0.90 | -1.00 | -19.54 | 337.29 | -2.35 | 174.77 | 0.4249 | 979.5 | 999999 | |
| 4.87 | -1.00 | 2.66 | -1.00 | -19.28 | 337.26 | -2.37 | 174.65 | 0.4208 | 1042.8 | 999999 | |
| 0.00 | 1.83 | 0.00 | 1.00 | -19.91 | 336.96 | -2.67 | 174.15 | 0.4311 | 866.0 | 673.5 | |
| 15.84 | 25.16 | 8.75 | 13.89 | -20.67 | 336.82 | -2.81 | 174.04 | 0.4433 | 848.7 | 526.6 | |
| 0.00 | 2.87 | 0.00 | 1.58 | -20.11 | 336.77 | -2.86 | 173.78 | 0.4346 | 774.0 | 695.3 | |
| 3.31 | 61.46 | 1.80 | 33.56 | -19.09 | 336.60 | -3.04 | 173.11 | 0.4188 | 1121.3 | 671.1 | |
| 1.92 | -7.00 | 1.05 | -7.00 | -19.45 | 336.56 | -3.07 | 173.13 | 0.4246 | 1059.8 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -20.07 | 336.52 | -3.12 | 173.22 | 0.4345 | 571.0 | 439.5 | |
| 1.92 | -7.00 | 1.05 | -7.00 | -19.22 | 336.41 | -3.23 | 172.72 | 0.4213 | 1037.2 | 999999 | |
| 1.22 | -7.00 | 0.66 | -7.00 | -18.96 | 336.41 | -3.22 | 172.65 | 0.4171 | 1119.4 | 999999 | |
| 2.26 | -7.00 | 1.24 | -7.00 | -19.51 | 336.34 | -3.30 | 172.66 | 0.4261 | 747.7 | 999999 | |
| 0.00 | 4.35 | 0.00 | 2.42 | -21.21 | 335.95 | -3.69 | 172.37 | 0.4533 | -151.0 | 1.0 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -18.60 | 336.01 | -3.63 | 171.61 | 0.4124 | 796.0 | 596.2 | |
| 5.57 | -7.00 | 3.04 | -7.00 | -19.16 | 335.81 | -3.83 | 171.36 | 0.4216 | 953.3 | 999999 | |
| 2.18 | -7.00 | 1.19 | -7.00 | -19.42 | 335.36 | -4.28 | 170.48 | 0.4269 | 720.4 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -19.62 | 335.16 | -4.47 | 170.13 | 0.4305 | 584.0 | 475.0 | |
| 0.00 | 1.48 | 0.00 | 0.81 | -19.16 | 335.01 | -4.62 | 169.61 | 0.4238 | 836.0 | 689.5 | |
| 4.00 | 19.85 | 2.24 | 11.12 | -21.89 | 334.41 | -5.22 | 169.55 | 0.4675 | -1043.5 | -607.8 | |
| 0.00 | 1.57 | 0.00 | 0.87 | -20.32 | 334.44 | -5.20 | 168.91 | 0.4434 | 672.0 | 525.6 | |
| 0.00 | 1.39 | 0.00 | 0.78 | -22.09 | 334.08 | -5.55 | 169.00 | 0.4715 | -860.0 | -709.8 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -21.62 | 334.04 | -5.60 | 168.70 | 0.4646 | -819.0 | -613.0 | |
| 0.00 | 2.52 | 0.00 | 1.38 | -19.30 | 334.12 | -5.51 | 167.74 | 0.4287 | 682.0 | 601.5 | |
| 0.00 | 3.22 | 0.00 | 1.81 | -22.20 | 333.82 | -5.81 | 168.54 | 0.4739 | -599.0 | -581.3 | |
| 0.00 | 3.92 | 0.00 | 2.15 | -19.40 | 333.80 | -5.83 | 167.11 | 0.4314 | 566.0 | 635.9 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -22.03 | 333.67 | -5.97 | 168.16 | 0.4719 | -668.0 | -588.3 | |
| 1.48 | 209.36 | 0.82 | 117.33 | -20.83 | 333.62 | -6.02 | 167.48 | 0.4538 | -884.8 | -425.4 | |
| 1.92 | -27.00 | 1.08 | -27.00 | -22.27 | 333.43 | -6.21 | 167.82 | 0.4762 | -719.6 | 999999 | |
| 53.71 | -27.00 | 30.07 | -27.00 | -21.67 | 333.13 | -6.50 | 166.95 | 0.4682 | -1162.9 | 999999 | |
| 1.48 | -27.00 | 0.82 | -27.00 | -20.84 | 332.91 | -6.72 | 166.07 | 0.4564 | -798.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
