SDO HMI 2011-10-21 13:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.22 | 289.65 | 75.74 | 536.66 | 9.28 | 53.92 | 74.83 | 278.19 | 0.9618 | -45.5 | -25.8 | |
|
previous
or next observation for the same group /

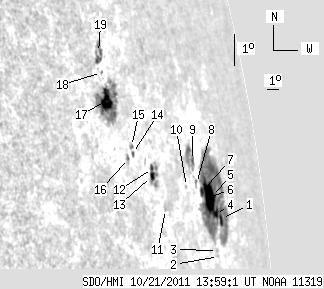

back to the solar disc SDO HMI 2011-10-21 13:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.96 | 169.46 | 6.66 | 363.14 | 7.75 | 57.02 | 77.94 | 276.76 | 0.9768 | 464.9 | 10.2 | |
| 0.00 | 1.39 | 0.00 | 2.94 | 6.70 | 55.99 | 76.90 | 275.61 | 0.9731 | -492.0 | -398.1 | |
| 0.00 | 1.48 | 0.00 | 3.11 | 6.88 | 55.95 | 76.86 | 275.79 | 0.9728 | -330.0 | -305.0 | |
| 1.74 | -1.00 | 3.71 | -1.00 | 7.94 | 56.28 | 77.20 | 276.90 | 0.9739 | -302.0 | 999999 | |
| 4.70 | -1.00 | 10.00 | -1.00 | 8.49 | 56.22 | 77.13 | 277.46 | 0.9735 | 343.2 | 999999 | |
| 14.62 | -1.00 | 29.90 | -1.00 | 8.51 | 55.69 | 76.60 | 277.45 | 0.9714 | -543.5 | 999999 | |
| 0.70 | -1.00 | 1.36 | -1.00 | 8.76 | 54.94 | 75.85 | 277.66 | 0.9681 | -637.6 | 999999 | |
| 0.00 | 2.35 | 0.00 | 4.42 | 9.04 | 54.49 | 75.41 | 277.93 | 0.9661 | -525.0 | -429.1 | |
| 1.22 | 15.41 | 2.29 | 28.47 | 9.74 | 54.46 | 75.37 | 278.65 | 0.9658 | -545.8 | -539.0 | |
| 0.00 | 1.13 | 0.00 | 1.98 | 9.05 | 53.32 | 74.24 | 277.88 | 0.9607 | -434.0 | -361.5 | |
| 0.00 | 1.22 | 0.00 | 1.87 | 8.58 | 50.87 | 71.79 | 277.25 | 0.9483 | -419.0 | -354.9 | |
| 0.70 | 15.49 | 1.04 | 23.13 | 9.87 | 50.25 | 71.17 | 278.59 | 0.9445 | -379.9 | -299.5 | |
| 2.26 | -12.00 | 3.34 | -12.00 | 9.65 | 50.04 | 70.96 | 278.35 | 0.9433 | 143.6 | 999999 | |
| 0.87 | 1.91 | 1.20 | 2.66 | 10.46 | 48.72 | 69.63 | 279.16 | 0.9354 | 163.5 | 20.8 | |
| 0.00 | 2.35 | 0.00 | 3.25 | 10.67 | 48.74 | 69.65 | 279.39 | 0.9354 | 432.0 | 202.4 | |
| 0.00 | 2.87 | 0.00 | 3.90 | 10.35 | 48.31 | 69.22 | 279.02 | 0.9329 | 492.0 | 350.3 | |
| 12.45 | 60.49 | 16.24 | 79.27 | 12.19 | 47.39 | 68.31 | 280.99 | 0.9268 | 581.7 | 45.2 | |
| 0.00 | 1.13 | 0.00 | 1.48 | 13.04 | 47.46 | 68.37 | 281.91 | 0.9272 | 428.0 | 327.9 | |
| 0.00 | 12.97 | 0.00 | 17.04 | 13.64 | 47.57 | 68.48 | 282.56 | 0.9278 | 226.0 | 273.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
