SDO HMI 2011-10-21 14:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.44 | 10.00 | 5.01 | 18.51 | -12.69 | 51.18 | 72.64 | 255.18 | 0.9632 | 8.0 | -119.7 | |
|
previous
or next observation for the same group /

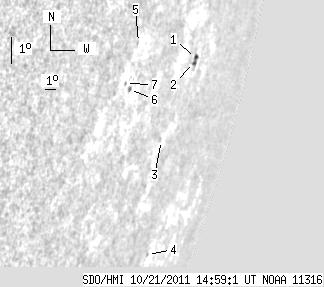

back to the solar disc SDO HMI 2011-10-21 14:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.22 | 4.87 | 2.51 | 10.07 | -11.84 | 53.06 | 74.53 | 256.36 | 0.9717 | 159.2 | 41.9 | |
| 1.22 | -1.00 | 2.50 | -1.00 | -11.99 | 52.94 | 74.41 | 256.20 | 0.9713 | 356.9 | 999999 | |
| 0.00 | 0.78 | 0.00 | 1.47 | -14.25 | 51.24 | 72.70 | 253.61 | 0.9658 | 271.0 | 268.4 | |
| 0.00 | 0.78 | 0.00 | 1.80 | -18.06 | 53.52 | 74.99 | 250.14 | 0.9773 | -226.0 | -243.9 | |
| 0.00 | 0.78 | 0.00 | 1.13 | -10.82 | 46.90 | 68.37 | 256.40 | 0.9409 | -400.0 | -372.0 | |
| 0.00 | 1.83 | 0.00 | 2.67 | -12.27 | 46.91 | 68.37 | 254.88 | 0.9424 | -393.0 | -284.2 | |
| 0.00 | 0.96 | 0.00 | 1.37 | -12.05 | 46.45 | 67.92 | 255.03 | 0.9396 | -464.0 | -439.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
