SDO HMI 2011-10-21 15:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.86 | 255.39 | 81.92 | 510.38 | 9.28 | 53.94 | 75.95 | 278.25 | 0.9668 | -32.7 | -9.4 | |
|
previous
or next observation for the same group /

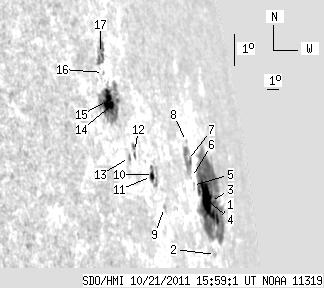

back to the solar disc SDO HMI 2011-10-21 15:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.35 | 151.23 | 5.78 | 352.45 | 7.74 | 56.96 | 78.97 | 276.82 | 0.9804 | 538.8 | 32.6 | |
| 0.00 | 1.65 | 0.00 | 3.78 | 6.77 | 56.02 | 78.04 | 275.76 | 0.9774 | -282.0 | -275.6 | |
| 7.57 | -1.00 | 17.52 | -1.00 | 8.35 | 56.29 | 78.31 | 277.40 | 0.9780 | 339.6 | 999999 | |
| 17.05 | -1.00 | 37.80 | -1.00 | 8.47 | 55.64 | 77.65 | 277.48 | 0.9755 | -511.3 | 999999 | |
| 0.00 | 0.44 | 0.00 | 0.87 | 9.02 | 54.23 | 76.25 | 277.96 | 0.9698 | -348.0 | -370.4 | |
| 0.00 | 0.61 | 0.00 | 1.22 | 9.26 | 54.26 | 76.28 | 278.21 | 0.9698 | -541.0 | -497.4 | |
| 0.00 | 14.97 | 0.00 | 29.60 | 9.79 | 54.11 | 76.13 | 278.74 | 0.9691 | -729.0 | -531.1 | |
| 0.00 | 1.13 | 0.00 | 2.27 | 10.34 | 54.39 | 76.40 | 279.33 | 0.9701 | -366.0 | -374.5 | |
| 0.00 | 1.83 | 0.00 | 2.97 | 8.66 | 50.80 | 72.81 | 277.39 | 0.9537 | -405.0 | -354.2 | |
| 0.96 | 9.83 | 1.50 | 15.40 | 9.71 | 50.22 | 72.23 | 278.47 | 0.9504 | -375.4 | -219.4 | |
| 1.57 | -10.00 | 2.43 | -10.00 | 9.67 | 49.99 | 72.01 | 278.42 | 0.9492 | 136.9 | 999999 | |
| 0.00 | 4.44 | 0.00 | 6.49 | 10.54 | 48.82 | 70.83 | 279.28 | 0.9424 | 198.0 | 51.0 | |
| 0.00 | 2.35 | 0.00 | 3.36 | 10.40 | 48.28 | 70.30 | 279.12 | 0.9394 | 325.0 | 341.0 | |
| 0.87 | 52.30 | 1.21 | 71.80 | 12.07 | 47.67 | 69.68 | 280.88 | 0.9354 | -253.2 | 52.0 | |
| 11.49 | -14.00 | 15.68 | -14.00 | 12.22 | 47.31 | 69.33 | 281.04 | 0.9332 | 595.1 | 999999 | |
| 0.00 | 1.04 | 0.00 | 1.43 | 13.06 | 47.47 | 69.49 | 281.94 | 0.9341 | 416.0 | 353.9 | |
| 0.00 | 13.57 | 0.00 | 18.74 | 13.63 | 47.57 | 69.59 | 282.56 | 0.9347 | 193.0 | 199.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
