SDO HMI 2011-10-21 15:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.10 | 60.49 | 7.35 | 31.55 | 18.09 | 324.89 | -13.10 | 43.39 | 0.3121 | 559.4 | 75.8 | |
|
previous
or next observation for the same group /

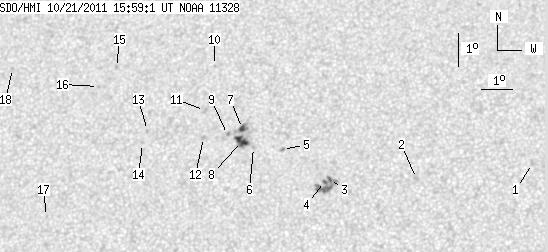

back to the solar disc SDO HMI 2011-10-21 15:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.18 | 0.00 | 1.11 | 17.77 | 333.37 | -4.61 | 19.61 | 0.2291 | -796.0 | -517.5 | |
| 0.00 | 2.26 | 0.00 | 1.16 | 17.27 | 329.74 | -8.24 | 33.48 | 0.2493 | 869.0 | 657.8 | |
| 1.65 | 17.93 | 0.85 | 9.23 | 17.20 | 326.99 | -11.00 | 41.42 | 0.2766 | -940.7 | -942.7 | |
| 0.96 | -3.00 | 0.49 | -3.00 | 17.14 | 326.83 | -11.15 | 41.97 | 0.2776 | -931.6 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.00 | 18.09 | 325.43 | -12.56 | 42.94 | 0.3048 | 1021.0 | 724.1 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 18.13 | 324.49 | -13.50 | 44.82 | 0.3160 | 704.0 | 471.5 | |
| 3.22 | 23.41 | 1.69 | 12.25 | 18.70 | 324.09 | -13.90 | 44.31 | 0.3271 | 1017.2 | 775.6 | |
| 8.27 | -7.00 | 4.32 | -7.00 | 18.30 | 324.09 | -13.90 | 45.22 | 0.3227 | 1105.8 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 18.51 | 323.62 | -14.37 | 45.66 | 0.3305 | 834.0 | 722.6 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 20.62 | 322.99 | -14.99 | 42.32 | 0.3612 | 803.0 | 591.5 | |
| 0.00 | 2.44 | 0.00 | 1.29 | 19.23 | 322.80 | -15.18 | 45.57 | 0.3478 | 873.0 | 698.0 | |
| 0.00 | 1.57 | 0.00 | 0.82 | 18.40 | 322.84 | -15.14 | 47.34 | 0.3385 | 891.0 | 571.7 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 18.57 | 320.99 | -16.99 | 50.05 | 0.3629 | 803.0 | 628.5 | |
| 0.00 | 0.61 | 0.00 | 0.32 | 18.17 | 320.87 | -17.11 | 51.14 | 0.3606 | 602.0 | 504.1 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 20.48 | 319.75 | -18.23 | 47.90 | 0.3968 | 860.0 | 686.5 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 19.87 | 319.22 | -18.76 | 49.88 | 0.3973 | 765.0 | 566.7 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 15.85 | 317.95 | -20.04 | 60.39 | 0.3807 | -767.0 | -551.8 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 20.34 | 316.24 | -21.74 | 52.72 | 0.4383 | 733.0 | 550.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
