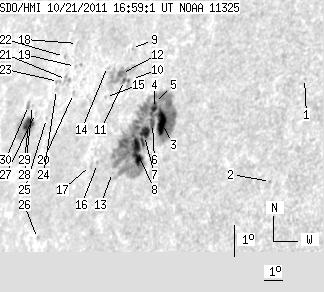

SDO HMI 2011-10-21 16:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.33 | 334.73 | 62.71 | 316.67 | 15.42 | 279.01 | -58.43 | 75.15 | 0.8508 | -231.0 | -34.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-21 16:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.54 | 17.51 | 287.70 | -49.74 | 71.62 | 0.7691 | -490.0 | -430.1 | |
| 0.00 | 0.70 | 0.00 | 0.54 | 14.31 | 287.14 | -50.29 | 75.84 | 0.7711 | -358.0 | -402.1 | |
| 14.97 | 251.45 | 13.37 | 229.18 | 15.66 | 280.97 | -56.47 | 74.74 | 0.8341 | -922.1 | -123.2 | |
| 2.44 | -3.00 | 2.21 | -3.00 | 16.05 | 280.40 | -57.03 | 74.32 | 0.8396 | -436.4 | 999999 | |
| 0.96 | -3.00 | 0.87 | -3.00 | 16.20 | 280.33 | -57.10 | 74.15 | 0.8403 | -343.0 | 999999 | |
| 4.18 | -3.00 | 3.77 | -3.00 | 15.60 | 280.48 | -56.95 | 74.86 | 0.8385 | -597.8 | 999999 | |
| 11.14 | -3.00 | 10.13 | -3.00 | 15.21 | 280.19 | -57.24 | 75.35 | 0.8409 | -668.3 | 999999 | |
| 16.36 | -3.00 | 14.95 | -3.00 | 14.67 | 280.01 | -57.42 | 75.99 | 0.8423 | -673.8 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.67 | 17.73 | 278.20 | -59.23 | 72.53 | 0.8600 | 514.0 | 534.6 | |
| 1.13 | 29.67 | 1.08 | 28.72 | 16.77 | 278.52 | -58.91 | 73.63 | 0.8567 | -404.6 | 255.2 | |
| 1.31 | -10.00 | 1.25 | -10.00 | 16.75 | 278.29 | -59.14 | 73.67 | 0.8587 | -265.9 | 999999 | |
| 3.57 | -10.00 | 3.45 | -10.00 | 16.94 | 278.00 | -59.43 | 73.46 | 0.8612 | 441.7 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.65 | 13.97 | 278.84 | -58.59 | 76.89 | 0.8525 | 244.0 | 228.0 | |
| 0.00 | 0.26 | 0.00 | 0.26 | 17.09 | 277.05 | -60.38 | 73.37 | 0.8693 | 512.0 | 561.7 | |
| 0.00 | 0.96 | 0.00 | 0.94 | 16.16 | 277.41 | -60.02 | 74.42 | 0.8658 | -241.0 | -214.6 | |
| 0.00 | 1.04 | 0.00 | 1.01 | 14.16 | 277.85 | -59.58 | 76.70 | 0.8612 | 516.0 | 524.8 | |
| 0.00 | 1.39 | 0.00 | 1.36 | 14.07 | 277.46 | -59.97 | 76.83 | 0.8645 | 564.0 | 500.8 | |
| 0.00 | 1.13 | 0.00 | 1.21 | 17.61 | 274.76 | -62.67 | 72.91 | 0.8878 | 471.0 | 389.2 | |
| 0.00 | 0.96 | 0.00 | 1.01 | 16.92 | 275.04 | -62.39 | 73.68 | 0.8853 | 508.0 | 461.6 | |
| 0.00 | 1.31 | 0.00 | 1.36 | 16.12 | 275.36 | -62.07 | 74.58 | 0.8825 | 425.0 | 401.4 | |
| 0.00 | 4.09 | 0.00 | 4.37 | 16.49 | 274.68 | -62.76 | 74.18 | 0.8880 | 536.0 | 445.3 | |
| 0.00 | 1.39 | 0.00 | 1.51 | 17.16 | 274.14 | -63.30 | 73.46 | 0.8923 | 414.0 | 315.4 | |
| 0.00 | 1.83 | 0.00 | 1.99 | 16.39 | 274.18 | -63.25 | 74.32 | 0.8917 | 426.0 | 369.0 | |
| 0.00 | 1.91 | 0.00 | 2.08 | 16.14 | 274.19 | -63.25 | 74.60 | 0.8916 | 470.0 | 371.3 | |
| 0.00 | 1.04 | 0.00 | 1.14 | 15.23 | 274.00 | -63.43 | 75.63 | 0.8927 | 427.0 | 348.2 | |
| 0.00 | 1.22 | 0.00 | 1.28 | 11.65 | 275.07 | -62.36 | 79.65 | 0.8839 | 521.0 | 432.7 | |
| 0.00 | 0.78 | 0.00 | 0.88 | 15.32 | 273.17 | -64.26 | 75.56 | 0.8990 | 275.0 | 307.0 | |
| 0.00 | 1.04 | 0.00 | 1.19 | 15.54 | 272.83 | -64.60 | 75.32 | 0.9015 | 534.0 | 459.4 | |
| 10.27 | 27.41 | 11.63 | 31.29 | 14.96 | 272.87 | -64.56 | 75.97 | 0.9011 | 536.9 | -46.0 | |
| 0.00 | 3.05 | 0.00 | 3.49 | 15.51 | 272.55 | -64.88 | 75.36 | 0.9036 | 314.0 | 198.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
