SDO HMI 2011-10-21 16:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.49 | 53.69 | 8.04 | 28.00 | 18.17 | 324.42 | -13.01 | 42.79 | 0.3123 | 446.6 | 141.3 | |
|
previous
or next observation for the same group /

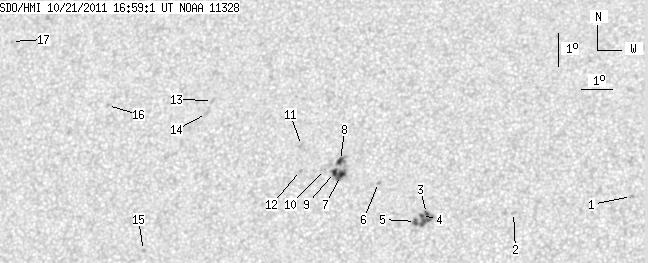

back to the solar disc SDO HMI 2011-10-21 16:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.91 | 0.00 | 0.97 | 17.77 | 333.42 | -4.01 | 17.24 | 0.2260 | -871.0 | -641.4 | |
| 0.00 | 1.83 | 0.00 | 0.93 | 17.25 | 329.72 | -7.71 | 31.80 | 0.2442 | 855.0 | 647.0 | |
| 1.39 | 16.36 | 0.72 | 8.41 | 17.18 | 326.98 | -10.46 | 40.08 | 0.2705 | -946.2 | -1000.4 | |
| 1.57 | -3.00 | 0.81 | -3.00 | 17.12 | 326.82 | -10.61 | 40.64 | 0.2714 | -981.3 | 999999 | |
| 2.61 | -3.00 | 1.34 | -3.00 | 16.93 | 326.64 | -10.79 | 41.58 | 0.2711 | -834.2 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 18.10 | 325.39 | -12.05 | 41.76 | 0.2992 | 1052.0 | 768.9 | |
| 4.26 | 20.71 | 2.22 | 10.81 | 18.29 | 324.15 | -13.28 | 44.01 | 0.3154 | 1215.0 | 896.1 | |
| 3.05 | -7.00 | 1.59 | -7.00 | 18.75 | 324.11 | -13.32 | 43.04 | 0.3211 | 1009.5 | 999999 | |
| 2.61 | -7.00 | 1.36 | -7.00 | 18.38 | 323.95 | -13.48 | 44.22 | 0.3187 | 1030.3 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 18.46 | 323.65 | -13.78 | 44.62 | 0.3231 | 634.0 | 513.7 | |
| 0.00 | 1.57 | 0.00 | 0.82 | 19.18 | 322.81 | -14.62 | 44.64 | 0.3409 | 850.0 | 689.8 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 18.42 | 322.84 | -14.59 | 46.29 | 0.3321 | 868.0 | 669.8 | |
| 0.00 | 1.91 | 0.00 | 1.03 | 20.49 | 319.73 | -17.70 | 47.07 | 0.3906 | 827.0 | 659.6 | |
| 0.00 | 2.26 | 0.00 | 1.22 | 20.09 | 319.58 | -17.85 | 48.12 | 0.3884 | 575.0 | 542.2 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 15.84 | 317.96 | -19.47 | 59.78 | 0.3728 | -791.0 | -601.2 | |
| 0.00 | 1.57 | 0.00 | 0.86 | 20.23 | 316.22 | -21.21 | 52.31 | 0.4309 | 704.0 | 538.8 | |
| 0.00 | 0.78 | 0.00 | 0.44 | 22.10 | 312.57 | -24.86 | 52.80 | 0.4910 | 690.0 | 516.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
