SDO HMI 2011-10-21 18:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 118.78 | 459.72 | 65.68 | 254.95 | -21.16 | 334.24 | -2.08 | 175.81 | 0.4506 | -144.8 | -121.1 | |
|
previous
or next observation for the same group /

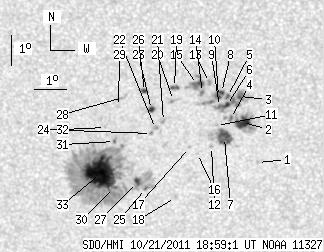

back to the solar disc SDO HMI 2011-10-21 18:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.68 | -21.43 | 338.03 | 1.70 | 183.50 | 0.4537 | 775.0 | 669.5 | |
| 11.40 | 27.23 | 6.26 | 14.95 | -20.10 | 337.53 | 1.21 | 182.63 | 0.4324 | 1093.0 | 501.6 | |
| 1.48 | 44.63 | 0.81 | 24.35 | -19.24 | 337.43 | 1.10 | 182.50 | 0.4187 | 1104.3 | 755.6 | |
| 2.00 | 3.39 | 1.10 | 1.86 | -19.96 | 337.15 | 0.82 | 181.81 | 0.4300 | 858.3 | 626.7 | |
| 1.65 | -3.00 | 0.90 | -3.00 | -19.24 | 337.05 | 0.73 | 181.64 | 0.4185 | 1053.5 | 999999 | |
| 2.52 | -3.00 | 1.38 | -3.00 | -19.53 | 337.02 | 0.69 | 181.55 | 0.4232 | 1131.1 | 999999 | |
| 15.57 | 24.71 | 8.58 | 13.61 | -20.59 | 336.96 | 0.64 | 181.36 | 0.4399 | 868.3 | 453.8 | |
| 1.83 | -3.00 | 0.99 | -3.00 | -19.11 | 336.86 | 0.54 | 181.22 | 0.4163 | 1124.1 | 999999 | |
| 0.35 | -3.00 | 0.19 | -3.00 | -19.57 | 336.80 | 0.47 | 181.06 | 0.4236 | 910.5 | 999999 | |
| 1.04 | -3.00 | 0.57 | -3.00 | -19.24 | 336.77 | 0.44 | 181.00 | 0.4184 | 1182.8 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -20.19 | 336.71 | 0.38 | 180.83 | 0.4335 | 779.0 | 604.4 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -20.89 | 336.55 | 0.22 | 180.47 | 0.4445 | 599.0 | 439.9 | |
| 0.00 | 2.44 | 0.00 | 1.32 | -18.78 | 336.48 | 0.16 | 180.36 | 0.4110 | 1003.0 | 766.0 | |
| 1.31 | 18.36 | 0.71 | 9.97 | -19.11 | 336.26 | -0.06 | 179.85 | 0.4162 | 984.8 | 819.9 | |
| 6.96 | -14.00 | 3.78 | -14.00 | -18.85 | 336.11 | -0.22 | 179.49 | 0.4121 | 1061.7 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.29 | -21.13 | 336.10 | -0.23 | 179.53 | 0.4481 | 369.0 | 376.8 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -20.93 | 335.85 | -0.48 | 178.99 | 0.4451 | -683.0 | -430.9 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -22.60 | 335.39 | -0.94 | 178.15 | 0.4714 | -771.0 | -630.6 | |
| 3.31 | 3.83 | 1.80 | 2.08 | -18.94 | 335.38 | -0.95 | 177.83 | 0.4139 | 921.9 | 859.0 | |
| 0.00 | 2.87 | 0.00 | 1.57 | -19.37 | 335.35 | -0.98 | 177.79 | 0.4207 | 839.0 | 638.6 | |
| 0.00 | 2.09 | 0.00 | 1.15 | -20.06 | 335.03 | -1.30 | 177.15 | 0.4319 | -910.0 | -637.8 | |
| 0.00 | 2.26 | 0.00 | 1.24 | -20.30 | 334.77 | -1.56 | 176.63 | 0.4358 | 877.0 | 700.6 | |
| 3.22 | 3.83 | 1.76 | 2.09 | -19.67 | 334.65 | -1.68 | 176.27 | 0.4260 | 794.6 | 572.7 | |
| 0.00 | 1.48 | 0.00 | 0.81 | -20.46 | 334.64 | -1.69 | 176.37 | 0.4385 | 828.0 | 622.8 | |
| 0.70 | 30.89 | 0.39 | 17.25 | -22.30 | 334.42 | -1.90 | 176.21 | 0.4674 | -686.1 | -488.2 | |
| 2.26 | 3.22 | 1.23 | 1.75 | -19.08 | 334.43 | -1.90 | 175.68 | 0.4169 | 765.5 | 769.0 | |
| 3.05 | -25.00 | 1.70 | -25.00 | -22.10 | 334.17 | -2.16 | 175.67 | 0.4646 | -1079.2 | 999999 | |
| 0.00 | 4.00 | 0.00 | 2.18 | -19.28 | 333.74 | -2.59 | 174.15 | 0.4210 | 516.0 | 509.4 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -19.57 | 333.60 | -2.72 | 173.94 | 0.4259 | 721.0 | 539.6 | |
| 1.31 | 275.10 | 0.73 | 153.57 | -22.27 | 333.42 | -2.90 | 174.23 | 0.4683 | -726.2 | -387.8 | |
| 0.96 | 1.91 | 0.53 | 1.06 | -20.73 | 333.46 | -2.87 | 173.92 | 0.4444 | -812.0 | -524.1 | |
| 0.00 | 0.61 | 0.00 | 0.34 | -20.27 | 333.18 | -3.15 | 173.20 | 0.4376 | -804.0 | -661.4 | |
| 57.86 | -30.00 | 32.27 | -30.00 | -21.80 | 332.98 | -3.34 | 173.24 | 0.4618 | -1315.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
