SDO HMI 2011-10-21 19:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.84 | 0.00 | 8.38 | 24.80 | 329.79 | -5.99 | 14.70 | 0.3521 | -488.3 | -291.5 | |
|
previous
or next observation for the same group /

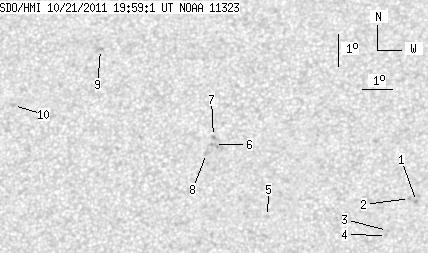

back to the solar disc SDO HMI 2011-10-21 19:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.59 | 23.16 | 336.32 | 0.55 | 358.35 | 0.3070 | -855.0 | -762.1 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 23.26 | 336.10 | 0.32 | 359.04 | 0.3084 | -870.0 | -662.6 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 22.26 | 335.39 | -0.39 | 1.24 | 0.2917 | -870.0 | -662.6 | |
| 0.00 | 0.35 | 0.00 | 0.18 | 22.10 | 335.36 | -0.42 | 1.36 | 0.2891 | -801.0 | -701.5 | |
| 0.00 | 1.39 | 0.00 | 0.72 | 22.68 | 331.50 | -4.27 | 13.01 | 0.3069 | -815.0 | -484.6 | |
| 0.00 | 2.87 | 0.00 | 1.52 | 24.93 | 329.68 | -6.10 | 16.04 | 0.3503 | -814.0 | -715.8 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 25.18 | 329.63 | -6.14 | 15.93 | 0.3544 | -723.0 | -614.4 | |
| 0.00 | 2.52 | 0.00 | 1.33 | 24.64 | 329.43 | -6.35 | 16.92 | 0.3469 | -642.0 | -541.3 | |
| 0.00 | 2.18 | 0.00 | 1.18 | 27.92 | 325.63 | -10.15 | 22.04 | 0.4167 | 762.0 | 701.8 | |
| 0.00 | 1.91 | 0.00 | 1.04 | 26.07 | 322.85 | -12.93 | 29.48 | 0.4101 | 745.0 | 606.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
