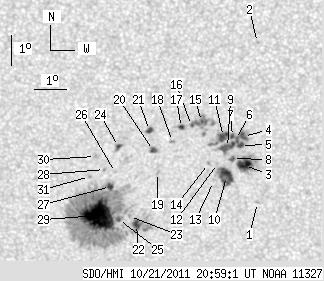

SDO HMI 2011-10-21 20:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 136.69 | 459.01 | 75.54 | 254.37 | -21.10 | 334.23 | -1.00 | 178.06 | 0.4489 | -164.6 | -124.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-21 20:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.57 | 0.00 | 0.87 | -21.40 | 338.01 | 2.79 | 185.74 | 0.4546 | 861.0 | 552.5 | |
| 0.00 | 1.13 | 0.00 | 0.60 | -16.16 | 337.93 | 2.70 | 187.04 | 0.3715 | -801.0 | -564.6 | |
| 10.44 | 27.15 | 5.74 | 14.91 | -20.17 | 337.58 | 2.35 | 185.11 | 0.4347 | 1050.1 | 559.6 | |
| 4.26 | 52.99 | 2.32 | 28.92 | -19.21 | 337.53 | 2.31 | 185.22 | 0.4195 | 974.1 | 714.9 | |
| 2.96 | -4.00 | 1.62 | -4.00 | -19.51 | 337.44 | 2.22 | 184.95 | 0.4241 | 819.9 | 999999 | |
| 1.48 | -4.00 | 0.81 | -4.00 | -19.31 | 337.28 | 2.06 | 184.63 | 0.4207 | 996.1 | 999999 | |
| 1.74 | -4.00 | 0.95 | -4.00 | -19.21 | 337.18 | 1.96 | 184.44 | 0.4191 | 1016.0 | 999999 | |
| 2.44 | 3.05 | 1.34 | 1.67 | -19.94 | 337.19 | 1.97 | 184.32 | 0.4305 | 913.6 | 679.4 | |
| 7.83 | -4.00 | 4.28 | -4.00 | -19.57 | 337.03 | 1.81 | 184.03 | 0.4246 | 966.9 | 999999 | |
| 15.49 | 21.58 | 8.53 | 11.89 | -20.53 | 337.01 | 1.78 | 183.82 | 0.4397 | 828.6 | 605.1 | |
| 6.87 | -4.00 | 3.75 | -4.00 | -19.21 | 336.90 | 1.67 | 183.80 | 0.4187 | 1164.7 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -20.10 | 336.72 | 1.49 | 183.26 | 0.4326 | 708.0 | 477.5 | |
| 0.00 | 0.61 | 0.00 | 0.34 | -20.70 | 336.60 | 1.37 | 182.92 | 0.4419 | 492.0 | 484.1 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -20.10 | 336.43 | 1.21 | 182.63 | 0.4324 | 742.0 | 619.7 | |
| 1.04 | 20.27 | 0.57 | 11.01 | -18.72 | 336.20 | 0.98 | 182.27 | 0.4103 | 1226.5 | 896.3 | |
| 1.13 | -15.00 | 0.61 | -15.00 | -18.85 | 335.89 | 0.66 | 181.53 | 0.4122 | 835.1 | 999999 | |
| 2.18 | 3.83 | 1.18 | 2.08 | -18.91 | 335.57 | 0.35 | 180.80 | 0.4131 | 860.0 | 724.1 | |
| 0.00 | 1.74 | 0.00 | 0.95 | -19.37 | 335.29 | 0.06 | 180.14 | 0.4204 | 739.0 | 566.7 | |
| 0.00 | 1.83 | 0.00 | 1.01 | -20.40 | 334.81 | -0.41 | 179.11 | 0.4367 | 728.0 | 520.7 | |
| 3.13 | 3.05 | 1.71 | 1.67 | -19.67 | 334.69 | -0.54 | 178.80 | 0.4252 | 899.7 | 0.0 | |
| 2.78 | 3.92 | 1.51 | 2.13 | -19.01 | 334.56 | -0.66 | 178.48 | 0.4148 | 918.9 | 653.5 | |
| 4.87 | 21.67 | 2.72 | 12.11 | -22.13 | 334.13 | -1.09 | 177.81 | 0.4642 | -1018.1 | -497.8 | |
| 0.00 | 1.31 | 0.00 | 0.73 | -21.87 | 333.91 | -1.32 | 177.33 | 0.4601 | -854.0 | -663.0 | |
| 1.65 | 3.83 | 0.90 | 2.09 | -19.54 | 333.58 | -1.65 | 176.32 | 0.4239 | 729.4 | 494.9 | |
| 2.18 | 283.74 | 1.21 | 158.23 | -21.97 | 333.55 | -1.67 | 176.63 | 0.4620 | -849.4 | -384.8 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -20.40 | 333.47 | -1.75 | 176.23 | 0.4376 | 493.0 | 244.1 | |
| 3.31 | -25.00 | 1.83 | -25.00 | -20.86 | 333.31 | -1.92 | 175.96 | 0.4451 | -997.3 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -20.30 | 333.12 | -2.10 | 175.47 | 0.4364 | -777.0 | -622.7 | |
| 60.91 | -25.00 | 33.96 | -25.00 | -21.83 | 332.91 | -2.31 | 175.31 | 0.4606 | -1276.4 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -19.87 | 332.84 | -2.38 | 174.77 | 0.4301 | -942.0 | -734.5 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -20.53 | 332.64 | -2.58 | 174.49 | 0.4408 | -823.0 | -639.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
