SDO HMI 2011-10-21 21:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 23.07 | 0.00 | 12.16 | 24.62 | 330.28 | -4.39 | 11.23 | 0.3408 | -593.2 | -405.3 | |
|
previous
or next observation for the same group /

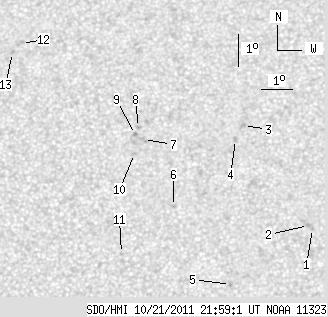

back to the solar disc SDO HMI 2011-10-21 21:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.59 | 22.07 | 335.34 | 0.67 | 357.83 | 0.2888 | -928.0 | -748.5 | |
| 0.00 | 1.39 | 0.00 | 0.72 | 22.16 | 335.22 | 0.54 | 358.25 | 0.2903 | -862.0 | -699.6 | |
| 0.00 | 2.00 | 0.00 | 1.05 | 25.30 | 333.08 | -1.59 | 4.20 | 0.3433 | -909.0 | -677.7 | |
| 0.00 | 2.44 | 0.00 | 1.28 | 24.86 | 332.83 | -1.84 | 5.00 | 0.3364 | -749.0 | -565.1 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 20.33 | 332.73 | -1.94 | 7.02 | 0.2612 | -816.0 | -660.7 | |
| 0.00 | 2.00 | 0.00 | 1.04 | 22.74 | 330.85 | -3.82 | 11.63 | 0.3063 | -966.0 | -658.7 | |
| 0.00 | 2.61 | 0.00 | 1.38 | 24.84 | 329.80 | -4.87 | 13.01 | 0.3439 | -596.0 | -601.3 | |
| 0.00 | 1.57 | 0.00 | 0.83 | 25.22 | 329.62 | -5.05 | 13.20 | 0.3506 | -707.0 | -526.3 | |
| 0.00 | 2.09 | 0.00 | 1.10 | 25.00 | 329.53 | -5.14 | 13.59 | 0.3474 | -738.0 | -677.3 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 24.40 | 329.52 | -5.15 | 14.07 | 0.3379 | -903.0 | -769.2 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 21.27 | 329.22 | -5.45 | 17.89 | 0.2895 | -818.0 | -563.6 | |
| 0.00 | 2.96 | 0.00 | 1.61 | 27.87 | 325.52 | -9.15 | 20.13 | 0.4104 | 551.0 | 598.6 | |
| 0.00 | 1.31 | 0.00 | 0.71 | 27.57 | 325.24 | -9.43 | 20.98 | 0.4076 | 730.0 | 610.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
