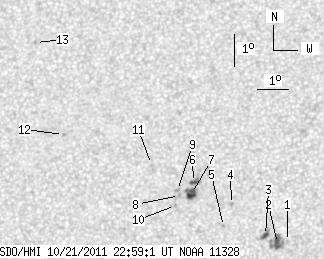

SDO HMI 2011-10-21 22:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.49 | 48.81 | 8.98 | 25.09 | 17.88 | 325.16 | -8.96 | 33.89 | 0.2647 | 372.4 | 22.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-21 22:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.39 | 0.00 | 0.71 | 17.01 | 327.12 | -7.00 | 29.94 | 0.2347 | -751.0 | -472.0 | |
| 5.92 | 16.19 | 3.02 | 8.25 | 16.95 | 326.81 | -7.31 | 31.16 | 0.2364 | -1103.9 | -829.6 | |
| 2.96 | 6.96 | 1.51 | 3.55 | 17.19 | 326.42 | -7.70 | 31.92 | 0.2433 | -910.1 | -689.2 | |
| 0.00 | 1.65 | 0.00 | 0.85 | 18.12 | 325.30 | -8.82 | 33.32 | 0.2665 | 1039.0 | 760.7 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 17.44 | 325.08 | -9.04 | 35.49 | 0.2594 | 1009.0 | 880.1 | |
| 2.61 | 5.40 | 1.35 | 2.79 | 18.77 | 324.05 | -10.07 | 35.37 | 0.2872 | 1003.5 | 873.4 | |
| 6.00 | 8.96 | 3.10 | 4.63 | 18.44 | 324.01 | -10.11 | 36.22 | 0.2832 | 1190.7 | 1011.7 | |
| 0.00 | 1.65 | 0.00 | 0.85 | 18.37 | 323.63 | -10.49 | 37.35 | 0.2861 | 868.0 | 663.1 | |
| 0.00 | 2.00 | 0.00 | 1.04 | 18.52 | 323.56 | -10.56 | 37.20 | 0.2888 | 835.0 | 676.4 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 18.06 | 323.52 | -10.60 | 38.33 | 0.2832 | 924.0 | 668.9 | |
| 0.00 | 0.61 | 0.00 | 0.32 | 19.30 | 322.67 | -11.45 | 37.69 | 0.3079 | 735.0 | 589.7 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 20.17 | 319.73 | -14.39 | 42.09 | 0.3494 | 910.0 | 788.5 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 23.00 | 318.50 | -15.62 | 38.99 | 0.3955 | 789.0 | 636.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
