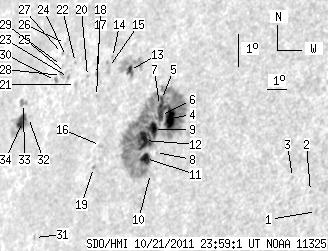

SDO HMI 2011-10-21 23:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.79 | 367.74 | 56.27 | 313.67 | 15.35 | 279.14 | -54.43 | 74.92 | 0.8138 | -259.4 | -68.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-21 23:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 0.92 | 13.32 | 288.49 | -45.08 | 76.52 | 0.7109 | -526.0 | -551.0 | |
| 0.00 | 1.04 | 0.00 | 0.74 | 13.90 | 288.08 | -45.49 | 75.77 | 0.7165 | -567.0 | -434.9 | |
| 0.00 | 0.87 | 0.00 | 0.63 | 14.27 | 287.18 | -46.38 | 75.39 | 0.7274 | -517.0 | -371.6 | |
| 13.66 | 281.66 | 11.16 | 234.04 | 15.63 | 280.87 | -52.70 | 74.41 | 0.7976 | -1014.4 | -182.3 | |
| 1.39 | -4.00 | 1.15 | -4.00 | 16.17 | 280.25 | -53.32 | 73.81 | 0.8043 | -468.1 | 999999 | |
| 4.61 | -4.00 | 3.81 | -4.00 | 15.69 | 280.38 | -53.19 | 74.39 | 0.8025 | -635.4 | 999999 | |
| 0.87 | -4.00 | 0.72 | -4.00 | 15.98 | 280.22 | -53.35 | 74.05 | 0.8044 | -483.4 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.50 | 14.57 | 280.53 | -53.04 | 75.78 | 0.8001 | -719.0 | -675.1 | |
| 8.36 | -4.00 | 6.93 | -4.00 | 15.25 | 280.18 | -53.39 | 74.97 | 0.8041 | -749.5 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.86 | 13.92 | 280.49 | -53.08 | 76.59 | 0.8000 | -123.0 | -108.2 | |
| 7.31 | -4.00 | 6.06 | -4.00 | 14.35 | 280.09 | -53.48 | 76.09 | 0.8044 | -859.5 | 999999 | |
| 17.23 | -4.00 | 14.40 | -4.00 | 14.88 | 279.84 | -53.72 | 75.45 | 0.8072 | -595.1 | 999999 | |
| 2.35 | 27.50 | 2.05 | 23.96 | 16.91 | 278.22 | -55.35 | 73.12 | 0.8247 | -388.7 | 188.2 | |
| 0.00 | 1.13 | 0.00 | 1.01 | 17.23 | 277.12 | -56.45 | 72.85 | 0.8351 | 631.0 | 632.3 | |
| 0.00 | 4.35 | 0.00 | 3.90 | 16.92 | 277.04 | -56.53 | 73.24 | 0.8356 | 473.0 | 439.5 | |
| 0.00 | 1.91 | 0.00 | 1.69 | 14.56 | 277.59 | -55.98 | 76.02 | 0.8288 | 622.0 | 556.7 | |
| 0.00 | 1.31 | 0.00 | 1.19 | 16.66 | 276.47 | -57.10 | 73.60 | 0.8406 | 638.0 | 605.6 | |
| 0.00 | 1.22 | 0.00 | 1.10 | 16.00 | 276.77 | -56.80 | 74.36 | 0.8374 | 590.0 | 482.4 | |
| 0.00 | 1.22 | 0.00 | 1.08 | 13.88 | 277.46 | -56.11 | 76.85 | 0.8297 | 622.0 | 501.5 | |
| 0.00 | 0.96 | 0.00 | 0.88 | 16.56 | 276.00 | -57.57 | 73.76 | 0.8448 | 644.0 | 608.0 | |
| 0.00 | 1.65 | 0.00 | 1.54 | 16.27 | 275.43 | -58.14 | 74.15 | 0.8497 | 587.0 | 474.2 | |
| 0.00 | 0.87 | 0.00 | 0.82 | 16.92 | 275.11 | -58.46 | 73.40 | 0.8529 | 530.0 | 504.3 | |
| 0.00 | 1.48 | 0.00 | 1.40 | 16.45 | 274.92 | -58.65 | 73.98 | 0.8542 | 474.0 | 481.2 | |
| 0.00 | 0.70 | 0.00 | 0.67 | 17.06 | 274.49 | -59.08 | 73.29 | 0.8583 | 445.0 | 401.9 | |
| 0.00 | 0.35 | 0.00 | 0.33 | 16.58 | 274.67 | -58.89 | 73.84 | 0.8564 | 569.0 | 552.2 | |
| 0.00 | 1.22 | 0.00 | 1.18 | 17.44 | 274.23 | -59.34 | 72.87 | 0.8608 | 463.0 | 406.4 | |
| 0.00 | 0.96 | 0.00 | 0.93 | 17.13 | 274.21 | -59.36 | 73.23 | 0.8608 | 411.0 | 356.6 | |
| 0.00 | 2.18 | 0.00 | 2.08 | 16.47 | 274.48 | -59.08 | 73.98 | 0.8580 | 691.0 | 584.6 | |
| 0.00 | 0.61 | 0.00 | 0.59 | 16.77 | 274.34 | -59.23 | 73.64 | 0.8595 | 442.0 | 464.4 | |
| 1.39 | 2.09 | 1.34 | 2.01 | 16.30 | 274.20 | -59.36 | 74.20 | 0.8603 | 406.4 | 426.4 | |
| 0.00 | 1.39 | 0.00 | 1.31 | 11.55 | 274.91 | -58.66 | 79.72 | 0.8525 | 425.0 | 378.5 | |
| 0.00 | 1.22 | 0.00 | 1.21 | 15.07 | 273.12 | -60.45 | 75.69 | 0.8689 | 637.0 | 576.4 | |
| 0.00 | 4.61 | 0.00 | 4.66 | 15.46 | 272.61 | -60.96 | 75.26 | 0.8733 | 414.0 | 309.0 | |
| 8.62 | 22.28 | 8.65 | 22.44 | 14.92 | 272.81 | -60.76 | 75.87 | 0.8715 | 598.6 | 94.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
