SDO HMI 2011-10-22 00:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.13 | 13.84 | 0.70 | 8.55 | -15.18 | 3.67 | 30.66 | 235.43 | 0.5994 | -28.5 | -38.3 | |
|
previous
or next observation for the same group /

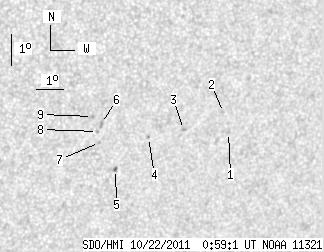

back to the solar disc SDO HMI 2011-10-22 00:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.83 | 0.00 | 1.17 | -15.33 | 6.79 | 33.77 | 237.75 | 0.6361 | 645.0 | 431.9 | |
| 0.00 | 1.13 | 0.00 | 0.72 | -14.68 | 6.49 | 33.47 | 238.43 | 0.6284 | 778.0 | 581.1 | |
| 0.00 | 1.74 | 0.00 | 1.09 | -15.15 | 5.09 | 32.08 | 236.71 | 0.6155 | 843.0 | 657.5 | |
| 0.00 | 1.04 | 0.00 | 0.65 | -15.34 | 3.86 | 30.84 | 235.42 | 0.6027 | 706.0 | 614.1 | |
| 1.13 | 1.74 | 0.70 | 1.07 | -16.31 | 2.83 | 29.81 | 233.16 | 0.5984 | -662.6 | -631.7 | |
| 0.00 | 2.96 | 0.00 | 1.79 | -14.81 | 2.09 | 29.08 | 234.64 | 0.5783 | -828.0 | -580.5 | |
| 0.00 | 0.87 | 0.00 | 0.53 | -15.41 | 2.11 | 29.10 | 233.78 | 0.5833 | -614.0 | -469.0 | |
| 0.00 | 1.22 | 0.00 | 0.74 | -15.06 | 1.99 | 28.97 | 234.18 | 0.5791 | -529.0 | -363.3 | |
| 0.00 | 1.31 | 0.00 | 0.79 | -14.57 | 1.74 | 28.72 | 234.66 | 0.5724 | -785.0 | -689.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
