SDO HMI 2011-10-22 00:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.81 | 364.56 | 54.18 | 306.58 | 15.35 | 279.21 | -53.81 | 74.86 | 0.8077 | -246.0 | -70.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-22 00:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

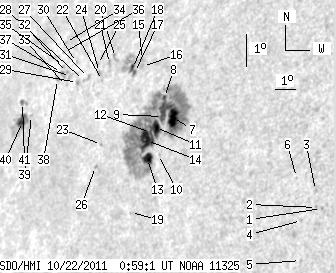

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.73 | 13.39 | 288.48 | -44.54 | 76.35 | 0.7045 | -765.0 | -594.6 | |
| 0.00 | 1.39 | 0.00 | 0.97 | 13.40 | 288.26 | -44.76 | 76.36 | 0.7072 | -594.0 | -542.2 | |
| 0.00 | 0.96 | 0.00 | 0.67 | 13.91 | 288.09 | -44.93 | 75.67 | 0.7098 | -711.0 | -522.0 | |
| 0.00 | 1.04 | 0.00 | 0.74 | 12.97 | 287.71 | -45.31 | 77.04 | 0.7132 | -480.0 | -397.6 | |
| 0.00 | 1.39 | 0.00 | 0.98 | 11.78 | 287.93 | -45.09 | 78.69 | 0.7094 | -613.0 | -524.1 | |
| 0.00 | 0.78 | 0.00 | 0.56 | 14.24 | 287.17 | -45.85 | 75.34 | 0.7212 | -603.0 | -455.1 | |
| 12.45 | 277.08 | 10.05 | 227.51 | 15.64 | 280.87 | -52.15 | 74.33 | 0.7920 | -1042.3 | -188.3 | |
| 1.65 | -7.00 | 1.36 | -7.00 | 16.21 | 280.25 | -52.77 | 73.69 | 0.7989 | -474.8 | 999999 | |
| 4.09 | -7.00 | 3.34 | -7.00 | 15.64 | 280.36 | -52.66 | 74.40 | 0.7971 | -553.0 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.56 | 14.49 | 280.56 | -52.46 | 75.82 | 0.7940 | -642.0 | -542.8 | |
| 8.01 | -7.00 | 6.56 | -7.00 | 15.28 | 280.13 | -52.89 | 74.87 | 0.7991 | -761.1 | 999999 | |
| 1.74 | -7.00 | 1.43 | -7.00 | 15.12 | 279.93 | -53.08 | 75.10 | 0.8010 | -561.8 | 999999 | |
| 7.49 | -7.00 | 6.14 | -7.00 | 14.33 | 280.05 | -52.96 | 76.07 | 0.7991 | -824.4 | 999999 | |
| 14.71 | -7.00 | 12.14 | -7.00 | 14.86 | 279.82 | -53.20 | 75.42 | 0.8019 | -636.2 | 999999 | |
| 0.00 | 1.92 | 0.00 | 1.63 | 17.27 | 278.65 | -54.36 | 72.58 | 0.8156 | 364.0 | 466.9 | |
| 0.00 | 2.18 | 0.00 | 1.85 | 17.06 | 278.74 | -54.27 | 72.83 | 0.8145 | 333.0 | 246.0 | |
| 0.44 | 21.24 | 0.37 | 18.33 | 16.85 | 278.40 | -54.62 | 73.12 | 0.8176 | -601.4 | 186.3 | |
| 2.00 | -17.00 | 1.72 | -17.00 | 16.96 | 278.25 | -54.77 | 73.00 | 0.8192 | -288.4 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.65 | 12.66 | 279.72 | -53.30 | 78.18 | 0.8015 | -504.0 | -380.3 | |
| 0.00 | 3.13 | 0.00 | 2.76 | 17.22 | 277.19 | -55.83 | 72.80 | 0.8294 | 629.0 | 618.8 | |
| 0.00 | 2.26 | 0.00 | 2.01 | 17.02 | 276.95 | -56.07 | 73.07 | 0.8315 | 647.0 | 535.3 | |
| 0.00 | 0.96 | 0.00 | 0.85 | 16.48 | 276.80 | -56.22 | 73.73 | 0.8325 | 283.0 | 285.7 | |
| 0.00 | 0.70 | 0.00 | 0.61 | 14.57 | 277.53 | -55.49 | 75.98 | 0.8242 | 599.0 | 561.0 | |
| 0.00 | 1.92 | 0.00 | 1.72 | 16.70 | 276.52 | -56.49 | 73.49 | 0.8352 | 674.0 | 587.9 | |
| 0.00 | 1.13 | 0.00 | 1.02 | 16.94 | 276.30 | -56.71 | 73.23 | 0.8374 | 673.0 | 610.6 | |
| 0.00 | 1.22 | 0.00 | 1.06 | 13.89 | 277.45 | -55.57 | 76.80 | 0.8246 | 666.0 | 569.8 | |
| 0.00 | 2.09 | 0.00 | 1.90 | 16.51 | 275.98 | -57.03 | 73.77 | 0.8399 | 687.0 | 602.4 | |
| 0.00 | 0.96 | 0.00 | 0.87 | 16.40 | 275.75 | -57.27 | 73.92 | 0.8420 | 442.0 | 435.9 | |
| 0.00 | 1.83 | 0.00 | 1.68 | 16.31 | 275.44 | -57.58 | 74.05 | 0.8447 | 590.0 | 531.6 | |
| 0.00 | 0.78 | 0.00 | 0.73 | 16.90 | 275.10 | -57.92 | 73.38 | 0.8482 | 571.0 | 469.1 | |
| 0.00 | 2.61 | 0.00 | 2.43 | 16.46 | 274.95 | -58.06 | 73.91 | 0.8491 | 508.0 | 480.0 | |
| 0.00 | 0.87 | 0.00 | 0.82 | 16.57 | 274.73 | -58.29 | 73.81 | 0.8512 | 575.0 | 569.8 | |
| 0.00 | 0.96 | 0.00 | 0.89 | 16.18 | 274.85 | -58.17 | 74.26 | 0.8498 | 566.0 | 449.7 | |
| 0.00 | 1.04 | 0.00 | 1.00 | 17.45 | 274.16 | -58.86 | 72.82 | 0.8567 | 455.0 | 426.2 | |
| 0.00 | 0.35 | 0.00 | 0.33 | 16.76 | 274.39 | -58.63 | 73.61 | 0.8542 | 514.0 | 505.8 | |
| 0.00 | 0.87 | 0.00 | 0.83 | 17.14 | 274.20 | -58.82 | 73.17 | 0.8562 | 478.0 | 448.3 | |
| 1.04 | 2.96 | 0.99 | 2.79 | 16.54 | 274.38 | -58.64 | 73.87 | 0.8542 | 535.9 | 590.6 | |
| 0.00 | 2.26 | 0.00 | 2.15 | 16.31 | 274.25 | -58.77 | 74.14 | 0.8552 | 575.0 | 448.6 | |
| 0.00 | 0.96 | 0.00 | 0.93 | 15.12 | 273.22 | -59.79 | 75.59 | 0.8634 | 601.0 | 496.0 | |
| 8.36 | 20.54 | 8.26 | 20.38 | 14.90 | 272.77 | -60.25 | 75.87 | 0.8672 | 553.3 | 104.8 | |
| 1.83 | 3.66 | 1.82 | 3.64 | 15.47 | 272.50 | -60.52 | 75.23 | 0.8697 | 299.3 | 449.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
