SDO HMI 2011-10-22 00:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 121.28 | 464.25 | 67.08 | 257.36 | -21.13 | 334.14 | 1.12 | 182.46 | 0.4494 | -156.0 | -155.2 | |
|
previous
or next observation for the same group /

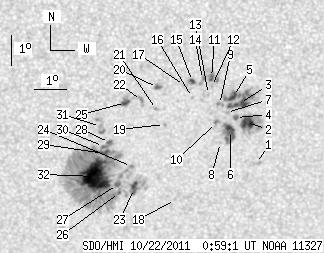

back to the solar disc SDO HMI 2011-10-22 00:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.96 | 0.00 | 1.65 | -21.47 | 337.96 | 4.94 | 190.07 | 0.4600 | 205.0 | 359.3 | |
| 11.06 | 33.08 | 6.09 | 18.22 | -20.10 | 337.63 | 4.61 | 189.96 | 0.4381 | 1047.0 | 375.2 | |
| 11.23 | 37.08 | 6.15 | 20.28 | -19.47 | 337.35 | 4.33 | 189.64 | 0.4276 | 922.3 | 804.7 | |
| 2.44 | 2.79 | 1.34 | 1.53 | -19.93 | 337.24 | 4.22 | 189.20 | 0.4344 | 924.9 | 855.2 | |
| 4.27 | -3.00 | 2.33 | -3.00 | -19.24 | 337.16 | 4.14 | 189.30 | 0.4234 | 1169.0 | 999999 | |
| 10.10 | 18.63 | 5.57 | 10.28 | -20.36 | 337.09 | 4.07 | 188.73 | 0.4407 | 848.3 | 626.7 | |
| 0.00 | 1.83 | 0.00 | 1.00 | -19.77 | 336.95 | 3.93 | 188.64 | 0.4311 | 731.0 | 495.2 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -20.76 | 336.78 | 3.76 | 187.94 | 0.4462 | 572.0 | 424.7 | |
| 0.00 | 3.05 | 0.00 | 1.67 | -19.50 | 336.72 | 3.70 | 188.24 | 0.4264 | 816.0 | 685.1 | |
| 0.00 | 3.05 | 0.00 | 1.67 | -20.09 | 336.64 | 3.62 | 187.86 | 0.4355 | 764.0 | 663.7 | |
| 2.79 | 9.14 | 1.51 | 4.96 | -18.61 | 336.45 | 3.43 | 187.94 | 0.4119 | 1061.2 | 822.7 | |
| 0.00 | 1.22 | 0.00 | 0.66 | -18.91 | 336.45 | 3.43 | 187.85 | 0.4165 | 956.0 | 764.9 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -19.17 | 336.36 | 3.35 | 187.56 | 0.4205 | 861.0 | 633.1 | |
| 0.00 | 4.53 | 0.00 | 2.46 | -18.68 | 336.16 | 3.15 | 187.28 | 0.4123 | 968.0 | 898.2 | |
| 2.35 | 3.22 | 1.28 | 1.75 | -18.74 | 335.85 | 2.83 | 186.54 | 0.4127 | 961.1 | 851.8 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -19.27 | 335.86 | 2.84 | 186.41 | 0.4210 | 641.0 | 472.2 | |
| 0.00 | 2.00 | 0.00 | 1.09 | -18.87 | 335.60 | 2.58 | 185.93 | 0.4143 | 679.0 | 586.8 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -22.66 | 335.37 | 2.36 | 184.62 | 0.4733 | -771.0 | -574.0 | |
| 0.00 | 1.22 | 0.00 | 0.67 | -20.15 | 334.98 | 1.97 | 184.28 | 0.4337 | 925.0 | 773.4 | |
| 2.87 | 3.13 | 1.56 | 1.70 | -18.93 | 334.75 | 1.73 | 183.97 | 0.4141 | 949.0 | 872.0 | |
| 0.00 | 1.48 | 0.00 | 0.81 | -19.66 | 334.72 | 1.71 | 183.79 | 0.4256 | 901.0 | 668.9 | |
| 0.00 | 4.53 | 0.00 | 2.47 | -19.36 | 334.25 | 1.23 | 182.77 | 0.4204 | 907.0 | 561.7 | |
| 5.48 | 309.63 | 3.07 | 172.60 | -22.29 | 334.05 | 1.03 | 182.05 | 0.4663 | -907.3 | -426.8 | |
| 0.00 | 1.57 | 0.00 | 0.87 | -21.55 | 333.94 | 0.93 | 181.90 | 0.4547 | -841.0 | -663.8 | |
| 3.74 | 7.49 | 2.04 | 4.08 | -19.42 | 333.74 | 0.72 | 181.63 | 0.4212 | 836.2 | 717.1 | |
| 1.22 | -23.00 | 0.68 | -23.00 | -22.42 | 333.56 | 0.54 | 181.08 | 0.4681 | -532.9 | 999999 | |
| 2.96 | -23.00 | 1.65 | -23.00 | -22.15 | 333.50 | 0.48 | 180.96 | 0.4639 | -792.3 | 999999 | |
| 2.44 | -23.00 | 1.34 | -23.00 | -20.75 | 333.24 | 0.22 | 180.46 | 0.4419 | -807.2 | 999999 | |
| 4.70 | -23.00 | 2.60 | -23.00 | -21.11 | 333.08 | 0.06 | 180.12 | 0.4477 | -1103.6 | 999999 | |
| 0.44 | -23.00 | 0.24 | -23.00 | -20.88 | 333.05 | 0.03 | 180.06 | 0.4440 | -1070.2 | 999999 | |
| 0.00 | 8.79 | 0.00 | 4.83 | -20.21 | 332.95 | -0.07 | 179.85 | 0.4335 | -836.0 | -767.8 | |
| 53.19 | -23.00 | 29.63 | -23.00 | -21.88 | 332.79 | -0.23 | 179.53 | 0.4597 | -1269.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
