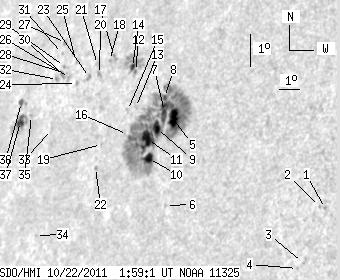

SDO HMI 2011-10-22 01:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.43 | 365.73 | 53.75 | 304.29 | 15.43 | 279.11 | -53.36 | 74.71 | 0.8033 | -249.2 | -57.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-22 01:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.78 | 13.39 | 288.53 | -43.94 | 76.25 | 0.6973 | -713.0 | -652.1 | |
| 0.00 | 0.70 | 0.00 | 0.48 | 13.44 | 288.26 | -44.21 | 76.23 | 0.7006 | -635.0 | -553.9 | |
| 0.00 | 0.61 | 0.00 | 0.42 | 11.72 | 287.90 | -44.56 | 78.72 | 0.7030 | -582.0 | -533.3 | |
| 0.00 | 0.70 | 0.00 | 0.48 | 11.52 | 287.73 | -44.74 | 79.01 | 0.7049 | -584.0 | -426.1 | |
| 10.88 | 278.85 | 8.68 | 226.17 | 15.62 | 280.88 | -51.59 | 74.29 | 0.7862 | -1053.7 | -199.0 | |
| 0.00 | 0.78 | 0.00 | 0.62 | 13.00 | 281.32 | -51.14 | 77.60 | 0.7792 | -334.0 | -263.7 | |
| 10.36 | -5.00 | 8.36 | -5.00 | 15.80 | 280.36 | -52.11 | 74.13 | 0.7917 | -629.9 | 999999 | |
| 2.09 | -5.00 | 1.69 | -5.00 | 16.22 | 280.20 | -52.26 | 73.62 | 0.7938 | -459.0 | 999999 | |
| 7.49 | -5.00 | 6.06 | -5.00 | 15.26 | 280.15 | -52.32 | 74.83 | 0.7934 | -793.1 | 999999 | |
| 6.01 | -5.00 | 4.86 | -5.00 | 14.34 | 280.06 | -52.41 | 76.00 | 0.7935 | -837.6 | 999999 | |
| 14.89 | -5.00 | 12.13 | -5.00 | 14.90 | 279.82 | -52.65 | 75.32 | 0.7964 | -677.4 | 999999 | |
| 1.31 | 22.98 | 1.10 | 19.51 | 16.89 | 278.42 | -54.05 | 73.00 | 0.8122 | -514.3 | 259.3 | |
| 0.00 | 1.48 | 0.00 | 1.23 | 15.81 | 278.86 | -53.61 | 74.28 | 0.8069 | 95.0 | 0.3 | |
| 2.00 | -12.00 | 1.70 | -12.00 | 16.99 | 278.22 | -54.25 | 72.90 | 0.8143 | -305.6 | 999999 | |
| 0.00 | 1.65 | 0.00 | 1.39 | 15.69 | 278.48 | -53.99 | 74.47 | 0.8105 | 433.0 | 345.5 | |
| 0.00 | 0.78 | 0.00 | 0.65 | 14.97 | 278.75 | -53.72 | 75.33 | 0.8072 | 168.0 | 254.8 | |
| 0.00 | 2.52 | 0.00 | 2.20 | 17.22 | 277.13 | -55.33 | 72.74 | 0.8248 | 701.0 | 641.0 | |
| 0.00 | 0.96 | 0.00 | 0.84 | 17.11 | 276.91 | -55.56 | 72.90 | 0.8269 | 725.0 | 680.9 | |
| 0.00 | 1.13 | 0.00 | 0.97 | 14.58 | 277.51 | -54.96 | 75.92 | 0.8191 | 563.0 | 516.9 | |
| 0.00 | 2.87 | 0.00 | 2.54 | 16.65 | 276.55 | -55.91 | 73.49 | 0.8298 | 631.0 | 574.3 | |
| 0.00 | 2.09 | 0.00 | 1.86 | 16.94 | 276.31 | -56.16 | 73.16 | 0.8323 | 662.0 | 579.3 | |
| 0.00 | 1.31 | 0.00 | 1.12 | 13.87 | 277.45 | -55.02 | 76.79 | 0.8193 | 687.0 | 590.2 | |
| 0.00 | 2.44 | 0.00 | 2.18 | 16.52 | 276.05 | -56.42 | 73.69 | 0.8343 | 662.0 | 559.6 | |
| 0.00 | 1.48 | 0.00 | 1.34 | 16.29 | 275.41 | -57.06 | 74.03 | 0.8400 | 701.0 | 563.6 | |
| 0.00 | 0.87 | 0.00 | 0.80 | 16.92 | 275.12 | -57.35 | 73.31 | 0.8431 | 505.0 | 452.2 | |
| 0.00 | 2.79 | 0.00 | 2.56 | 16.44 | 274.94 | -57.53 | 73.89 | 0.8444 | 491.0 | 468.9 | |
| 0.00 | 1.65 | 0.00 | 1.55 | 17.46 | 274.20 | -58.27 | 72.75 | 0.8516 | 455.0 | 391.5 | |
| 0.00 | 1.13 | 0.00 | 1.05 | 16.54 | 274.66 | -57.81 | 73.80 | 0.8470 | 613.0 | 575.2 | |
| 0.00 | 1.22 | 0.00 | 1.13 | 16.74 | 274.50 | -57.97 | 73.57 | 0.8485 | 590.0 | 526.2 | |
| 0.00 | 2.79 | 0.00 | 2.59 | 16.50 | 274.50 | -57.97 | 73.86 | 0.8483 | 690.0 | 570.0 | |
| 0.00 | 0.87 | 0.00 | 0.82 | 17.12 | 274.19 | -58.27 | 73.15 | 0.8514 | 511.0 | 440.6 | |
| 0.00 | 1.83 | 0.00 | 1.71 | 16.33 | 274.28 | -58.18 | 74.08 | 0.8501 | 574.0 | 442.1 | |
| 0.00 | 1.13 | 0.00 | 1.05 | 14.81 | 274.61 | -57.86 | 75.84 | 0.8464 | 266.0 | 239.1 | |
| 0.00 | 0.96 | 0.00 | 0.88 | 11.60 | 274.89 | -57.58 | 79.63 | 0.8428 | 418.0 | 349.5 | |
| 0.00 | 1.65 | 0.00 | 1.59 | 15.14 | 273.27 | -59.19 | 75.53 | 0.8583 | 450.0 | 369.2 | |
| 2.61 | 4.88 | 2.56 | 4.77 | 15.48 | 272.50 | -59.97 | 75.19 | 0.8651 | 310.2 | 340.1 | |
| 6.79 | 19.50 | 6.61 | 19.01 | 14.91 | 272.70 | -59.76 | 75.83 | 0.8631 | 561.2 | 255.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
