SDO HMI 2011-10-22 01:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 117.35 | 480.47 | 64.95 | 266.34 | -21.08 | 334.13 | 1.66 | 183.61 | 0.4489 | -115.7 | -133.8 | |
|
previous
or next observation for the same group /

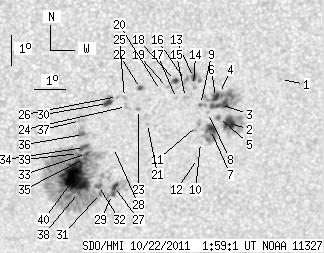

back to the solar disc SDO HMI 2011-10-22 01:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.33 | -18.68 | 339.22 | 6.75 | 195.31 | 0.4235 | 821.0 | 604.4 | |
| 10.45 | 30.47 | 5.76 | 16.80 | -20.11 | 337.65 | 5.18 | 191.16 | 0.4398 | 1089.1 | 372.0 | |
| 10.27 | 44.57 | 5.63 | 24.39 | -19.48 | 337.34 | 4.87 | 190.80 | 0.4291 | 962.1 | 714.2 | |
| 0.78 | -3.00 | 0.43 | -3.00 | -19.12 | 337.30 | 4.83 | 190.88 | 0.4234 | 997.2 | 999999 | |
| 2.18 | 2.44 | 1.20 | 1.34 | -19.91 | 337.29 | 4.82 | 190.50 | 0.4356 | 979.8 | 895.3 | |
| 4.44 | -3.00 | 2.43 | -3.00 | -19.25 | 337.18 | 4.71 | 190.55 | 0.4251 | 1205.1 | 999999 | |
| 7.14 | 20.11 | 3.94 | 11.10 | -20.31 | 337.05 | 4.58 | 189.82 | 0.4411 | 906.0 | 596.5 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -19.74 | 336.94 | 4.47 | 189.81 | 0.4320 | 779.0 | 621.9 | |
| 1.31 | 2.61 | 0.71 | 1.43 | -19.48 | 336.71 | 4.24 | 189.43 | 0.4273 | 627.3 | 698.6 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -20.74 | 336.74 | 4.27 | 189.01 | 0.4469 | 605.0 | 482.2 | |
| 0.00 | 4.96 | 0.00 | 2.73 | -20.17 | 336.63 | 4.16 | 188.99 | 0.4379 | 705.0 | 615.2 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -21.27 | 336.66 | 4.19 | 188.65 | 0.4550 | 719.0 | 522.5 | |
| 3.05 | 9.75 | 1.66 | 5.30 | -18.59 | 336.46 | 4.00 | 189.25 | 0.4128 | 1091.3 | 771.1 | |
| 0.00 | 2.79 | 0.00 | 1.52 | -18.85 | 336.47 | 4.00 | 189.15 | 0.4169 | 835.0 | 745.9 | |
| 0.00 | 2.44 | 0.00 | 1.33 | -19.24 | 336.23 | 3.76 | 188.46 | 0.4225 | 741.0 | 605.1 | |
| 0.00 | 3.66 | 0.00 | 1.99 | -18.69 | 336.21 | 3.75 | 188.64 | 0.4137 | 1123.0 | 934.7 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -19.28 | 335.94 | 3.47 | 187.82 | 0.4223 | 516.0 | 400.6 | |
| 2.61 | 4.61 | 1.42 | 2.51 | -18.69 | 335.90 | 3.43 | 187.92 | 0.4129 | 954.4 | 747.5 | |
| 0.00 | 1.48 | 0.00 | 0.81 | -18.91 | 335.65 | 3.18 | 187.28 | 0.4160 | 810.0 | 619.3 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -19.01 | 335.43 | 2.96 | 186.76 | 0.4171 | 712.0 | 532.3 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -20.10 | 335.04 | 2.57 | 185.59 | 0.4335 | 700.0 | 639.6 | |
| 1.92 | 2.61 | 1.04 | 1.42 | -18.94 | 334.80 | 2.33 | 185.34 | 0.4150 | 920.5 | 762.0 | |
| 0.00 | 1.22 | 0.00 | 0.67 | -19.63 | 334.74 | 2.28 | 185.06 | 0.4258 | 847.0 | 623.0 | |
| 0.00 | 2.70 | 0.00 | 1.47 | -19.53 | 334.36 | 1.89 | 184.23 | 0.4237 | 739.0 | 503.7 | |
| 0.00 | 1.83 | 0.00 | 1.00 | -19.24 | 334.30 | 1.83 | 184.14 | 0.4190 | 803.0 | 625.9 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -19.20 | 334.07 | 1.61 | 183.64 | 0.4182 | 565.0 | 553.5 | |
| 3.22 | 313.32 | 1.80 | 174.67 | -22.19 | 334.01 | 1.54 | 183.08 | 0.4651 | -977.2 | -427.5 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -20.89 | 333.96 | 1.50 | 183.16 | 0.4447 | -690.0 | -471.0 | |
| 1.74 | -27.00 | 0.98 | -27.00 | -22.46 | 333.95 | 1.48 | 182.93 | 0.4692 | -740.7 | 999999 | |
| 3.83 | 6.88 | 2.09 | 3.75 | -19.43 | 333.76 | 1.29 | 182.90 | 0.4216 | 816.9 | 778.8 | |
| 1.13 | -27.00 | 0.63 | -27.00 | -22.43 | 333.56 | 1.09 | 182.16 | 0.4684 | -590.7 | 999999 | |
| 2.96 | -27.00 | 1.65 | -27.00 | -22.16 | 333.49 | 1.03 | 182.05 | 0.4642 | -806.4 | 999999 | |
| 1.74 | -27.00 | 0.96 | -27.00 | -21.09 | 333.10 | 0.63 | 181.33 | 0.4473 | -876.5 | 999999 | |
| 3.74 | -27.00 | 2.07 | -27.00 | -20.89 | 333.04 | 0.57 | 181.20 | 0.4441 | -982.9 | 999999 | |
| 0.61 | -27.00 | 0.34 | -27.00 | -21.25 | 333.04 | 0.57 | 181.19 | 0.4499 | -1054.7 | 999999 | |
| 1.39 | 10.62 | 0.77 | 5.84 | -20.45 | 333.00 | 0.54 | 181.15 | 0.4373 | -862.8 | -507.0 | |
| 0.00 | 3.05 | 0.00 | 1.67 | -19.99 | 332.91 | 0.44 | 180.96 | 0.4300 | -857.0 | -729.5 | |
| 1.22 | -27.00 | 0.68 | -27.00 | -22.39 | 332.85 | 0.38 | 180.76 | 0.4676 | -769.4 | 999999 | |
| 0.52 | -27.00 | 0.29 | -27.00 | -21.09 | 332.85 | 0.38 | 180.79 | 0.4472 | -1209.5 | 999999 | |
| 51.10 | -27.00 | 28.47 | -27.00 | -21.86 | 332.75 | 0.28 | 180.58 | 0.4592 | -1273.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
