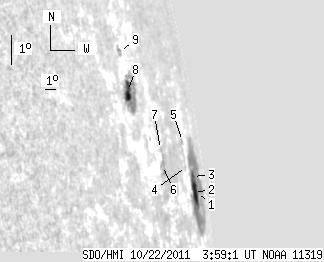

SDO HMI 2011-10-22 03:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.11 | 130.79 | 60.75 | 498.47 | 9.06 | 53.97 | 82.60 | 278.45 | 0.9892 | 114.5 | -5.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-22 03:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.01 | 80.02 | 26.88 | 390.13 | 8.33 | 55.81 | 84.44 | 277.82 | 0.9945 | 340.2 | 32.7 | |
| 4.61 | -1.00 | 18.79 | -1.00 | 8.40 | 55.01 | 83.64 | 277.84 | 0.9930 | -346.8 | 999999 | |
| 0.26 | -1.00 | 1.12 | -1.00 | 8.86 | 55.37 | 84.00 | 278.32 | 0.9937 | -318.3 | 999999 | |
| 0.00 | 1.22 | 0.00 | 4.40 | 9.26 | 54.29 | 82.92 | 278.64 | 0.9913 | -414.0 | -424.3 | |
| 0.00 | 1.74 | 0.00 | 6.28 | 10.02 | 54.34 | 82.97 | 279.41 | 0.9913 | -405.0 | -390.0 | |
| 0.00 | 7.23 | 0.00 | 17.28 | 9.68 | 50.05 | 78.68 | 278.78 | 0.9790 | -372.0 | -311.8 | |
| 0.00 | 1.48 | 0.00 | 3.56 | 10.16 | 50.16 | 78.78 | 279.28 | 0.9793 | -270.0 | -265.6 | |
| 7.23 | 35.70 | 13.96 | 70.24 | 12.18 | 47.28 | 75.91 | 281.22 | 0.9677 | 448.6 | -92.8 | |
| 0.00 | 3.40 | 0.00 | 6.58 | 13.40 | 47.38 | 76.01 | 282.48 | 0.9679 | 456.0 | 343.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
