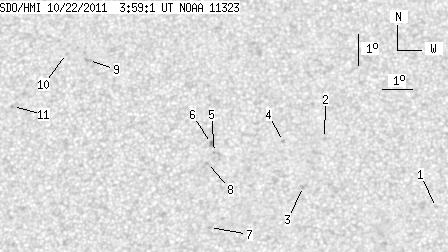

SDO HMI 2011-10-22 03:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.66 | 0.00 | 7.23 | 25.42 | 328.98 | -2.39 | 5.53 | 0.3512 | -362.9 | -219.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-22 03:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.27 | 23.18 | 336.79 | 5.42 | 344.18 | 0.3201 | -595.0 | -418.5 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 25.37 | 333.18 | 1.81 | 355.23 | 0.3453 | -913.0 | -694.2 | |
| 0.00 | 2.18 | 0.00 | 1.14 | 23.86 | 332.48 | 1.10 | 356.82 | 0.3195 | -902.0 | -677.8 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 25.28 | 331.83 | 0.46 | 358.79 | 0.3426 | -678.0 | -575.6 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 24.93 | 329.56 | -1.81 | 4.89 | 0.3380 | -810.0 | -679.1 | |
| 0.00 | 1.92 | 0.00 | 1.01 | 25.21 | 329.45 | -1.92 | 5.09 | 0.3428 | -857.0 | -705.3 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 22.57 | 329.43 | -1.94 | 6.03 | 0.2992 | -863.0 | -603.2 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 24.61 | 329.33 | -2.04 | 5.60 | 0.3331 | -740.0 | -646.2 | |
| 0.00 | 2.61 | 0.00 | 1.41 | 27.85 | 325.25 | -6.12 | 13.83 | 0.3964 | 849.0 | 696.2 | |
| 0.00 | 0.52 | 0.00 | 0.28 | 28.07 | 324.49 | -6.89 | 15.29 | 0.4028 | 678.0 | 506.7 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 26.34 | 322.78 | -8.59 | 20.44 | 0.3851 | 839.0 | 627.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
