SDO HMI 2011-10-22 04:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.73 | 377.72 | 51.22 | 302.33 | 15.38 | 279.26 | -51.56 | 74.56 | 0.7849 | -256.7 | -67.3 | |
|
previous
or next observation for the same group /

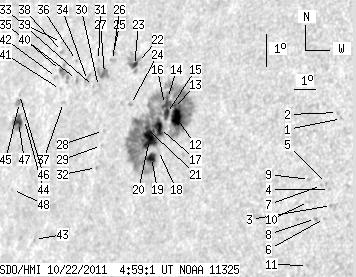

back to the solar disc SDO HMI 2011-10-22 04:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.77 | 16.05 | 288.17 | -42.65 | 72.17 | 0.6864 | -493.0 | -417.0 | |
| 0.00 | 0.70 | 0.00 | 0.47 | 16.22 | 287.95 | -42.87 | 71.97 | 0.6893 | -522.0 | -453.2 | |
| 0.00 | 1.13 | 0.00 | 0.76 | 13.41 | 288.39 | -42.43 | 75.96 | 0.6789 | -669.0 | -633.8 | |
| 0.00 | 0.78 | 0.00 | 0.53 | 13.88 | 288.20 | -42.62 | 75.30 | 0.6820 | -648.0 | -536.6 | |
| 0.00 | 1.13 | 0.00 | 0.77 | 14.06 | 288.03 | -42.79 | 75.08 | 0.6843 | -598.0 | -554.7 | |
| 0.00 | 0.87 | 0.00 | 0.59 | 13.00 | 288.19 | -42.64 | 76.59 | 0.6808 | -703.0 | -553.2 | |
| 0.00 | 0.87 | 0.00 | 0.59 | 13.98 | 287.84 | -42.98 | 75.22 | 0.6866 | -594.0 | -526.6 | |
| 0.00 | 1.39 | 0.00 | 0.94 | 12.98 | 287.81 | -43.01 | 76.68 | 0.6854 | -587.0 | -506.9 | |
| 0.00 | 1.13 | 0.00 | 0.78 | 14.13 | 287.30 | -43.53 | 75.10 | 0.6934 | -625.0 | -517.0 | |
| 0.00 | 1.13 | 0.00 | 0.77 | 13.47 | 287.41 | -43.41 | 76.03 | 0.6911 | -638.0 | -501.9 | |
| 0.00 | 0.61 | 0.00 | 0.41 | 11.55 | 287.77 | -43.06 | 78.77 | 0.6843 | -588.0 | -479.7 | |
| 12.97 | 281.86 | 10.02 | 220.98 | 15.60 | 280.86 | -49.97 | 74.10 | 0.7691 | -1060.8 | -198.6 | |
| 0.78 | -12.00 | 0.61 | -12.00 | 15.86 | 280.62 | -50.20 | 73.79 | 0.7719 | -719.8 | 999999 | |
| 0.87 | -12.00 | 0.68 | -12.00 | 16.14 | 280.23 | -50.59 | 73.49 | 0.7764 | -465.1 | 999999 | |
| 4.44 | -12.00 | 3.46 | -12.00 | 15.68 | 280.34 | -50.48 | 74.06 | 0.7747 | -678.2 | 999999 | |
| 2.09 | -12.00 | 1.64 | -12.00 | 15.95 | 280.15 | -50.67 | 73.74 | 0.7770 | -498.1 | 999999 | |
| 7.92 | -12.00 | 6.20 | -12.00 | 15.21 | 280.16 | -50.67 | 74.69 | 0.7761 | -863.4 | 999999 | |
| 0.00 | 1.57 | 0.00 | 1.22 | 14.55 | 280.32 | -50.50 | 75.52 | 0.7737 | -412.0 | -365.8 | |
| 6.01 | -12.00 | 4.70 | -12.00 | 14.32 | 280.06 | -50.77 | 75.85 | 0.7763 | -854.3 | 999999 | |
| 13.24 | -12.00 | 10.42 | -12.00 | 14.85 | 279.79 | -51.04 | 75.20 | 0.7797 | -699.0 | 999999 | |
| 0.87 | -12.00 | 0.69 | -12.00 | 15.19 | 279.47 | -51.35 | 74.79 | 0.7833 | -264.0 | 999999 | |
| 0.26 | 15.50 | 0.21 | 12.70 | 17.11 | 278.35 | -52.47 | 72.51 | 0.7969 | 96.0 | 156.1 | |
| 2.96 | -22.00 | 2.42 | -22.00 | 17.01 | 278.24 | -52.58 | 72.65 | 0.7979 | -290.3 | 999999 | |
| 0.00 | 1.74 | 0.00 | 1.41 | 15.83 | 278.49 | -52.33 | 74.10 | 0.7941 | 119.0 | -11.9 | |
| 0.00 | 1.39 | 0.00 | 1.17 | 17.32 | 277.01 | -53.82 | 72.43 | 0.8105 | 772.0 | 642.6 | |
| 0.00 | 2.26 | 0.00 | 1.90 | 17.08 | 277.06 | -53.76 | 72.72 | 0.8097 | 811.0 | 680.3 | |
| 3.48 | 9.49 | 2.94 | 8.02 | 16.66 | 276.81 | -54.02 | 73.26 | 0.8117 | 357.0 | 371.1 | |
| 0.00 | 0.70 | 0.00 | 0.58 | 14.95 | 277.42 | -53.41 | 75.31 | 0.8041 | 555.0 | 454.8 | |
| 0.00 | 0.87 | 0.00 | 0.72 | 14.50 | 277.47 | -53.35 | 75.87 | 0.8032 | 571.0 | 478.1 | |
| 0.00 | 0.70 | 0.00 | 0.59 | 16.25 | 276.66 | -54.17 | 73.79 | 0.8128 | 455.0 | 417.5 | |
| 0.00 | 1.04 | 0.00 | 0.89 | 17.03 | 276.33 | -54.49 | 72.87 | 0.8167 | 673.0 | 557.8 | |
| 0.00 | 1.13 | 0.00 | 0.94 | 13.83 | 277.45 | -53.38 | 76.71 | 0.8030 | 585.0 | 493.2 | |
| 0.00 | 0.96 | 0.00 | 0.82 | 16.23 | 276.40 | -54.43 | 73.84 | 0.8153 | 414.0 | 414.6 | |
| 0.00 | 5.05 | 0.00 | 4.34 | 16.38 | 276.01 | -54.82 | 73.69 | 0.8192 | 552.0 | 471.5 | |
| 0.00 | 2.53 | 0.00 | 2.20 | 16.37 | 275.41 | -55.41 | 73.77 | 0.8249 | 722.0 | 563.9 | |
| 0.00 | 1.04 | 0.00 | 0.92 | 16.94 | 275.16 | -55.66 | 73.11 | 0.8277 | 584.0 | 502.6 | |
| 0.00 | 1.22 | 0.00 | 1.07 | 15.63 | 275.00 | -55.82 | 74.70 | 0.8281 | 438.0 | 369.9 | |
| 0.00 | 1.48 | 0.00 | 1.33 | 17.15 | 274.28 | -56.55 | 72.94 | 0.8361 | 621.0 | 527.0 | |
| 0.00 | 0.87 | 0.00 | 0.79 | 17.41 | 274.09 | -56.73 | 72.65 | 0.8380 | 447.0 | 406.8 | |
| 1.57 | 10.10 | 1.40 | 8.96 | 16.57 | 274.43 | -56.40 | 73.62 | 0.8342 | 549.8 | 562.4 | |
| 0.00 | 1.13 | 0.00 | 1.00 | 16.01 | 274.68 | -56.15 | 74.27 | 0.8315 | 464.0 | 412.8 | |
| 0.00 | 1.92 | 0.00 | 1.72 | 16.35 | 274.30 | -56.52 | 73.90 | 0.8352 | 601.0 | 497.6 | |
| 0.00 | 1.31 | 0.00 | 1.14 | 11.45 | 274.90 | -55.92 | 79.77 | 0.8271 | 385.0 | 318.1 | |
| 0.00 | 1.74 | 0.00 | 1.61 | 14.96 | 273.06 | -57.76 | 75.64 | 0.8456 | 710.0 | 495.0 | |
| 0.00 | 5.14 | 0.00 | 4.80 | 15.45 | 272.56 | -58.26 | 75.11 | 0.8504 | 509.0 | 405.6 | |
| 0.00 | 0.78 | 0.00 | 0.74 | 15.68 | 272.45 | -58.37 | 74.83 | 0.8514 | 296.0 | 214.0 | |
| 6.27 | 12.63 | 5.83 | 11.75 | 14.85 | 272.76 | -58.06 | 75.80 | 0.8482 | 613.2 | 322.3 | |
| 0.00 | 0.70 | 0.00 | 0.64 | 12.84 | 273.21 | -57.62 | 78.16 | 0.8434 | 232.0 | 228.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
