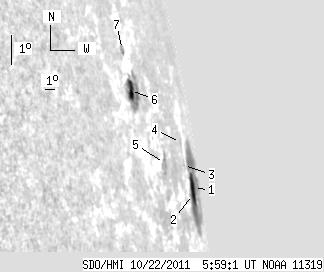

SDO HMI 2011-10-22 05:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.28 | 115.55 | 82.32 | 512.44 | 9.06 | 53.84 | 83.56 | 278.52 | 0.9914 | 83.4 | 0.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-22 05:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.79 | 66.96 | 36.18 | 399.98 | 8.43 | 55.63 | 85.35 | 278.00 | 0.9960 | 364.9 | 49.8 | |
| 6.79 | -1.00 | 32.23 | -1.00 | 8.30 | 55.03 | 84.75 | 277.82 | 0.9951 | -353.8 | 999999 | |
| 0.00 | 0.70 | 0.00 | 2.78 | 9.30 | 53.80 | 83.52 | 278.73 | 0.9926 | -325.0 | -342.6 | |
| 0.00 | 1.83 | 0.00 | 7.48 | 9.98 | 54.02 | 83.74 | 279.43 | 0.9930 | -423.0 | -363.0 | |
| 0.00 | 9.14 | 0.00 | 23.98 | 9.69 | 50.14 | 79.87 | 278.87 | 0.9830 | -487.0 | -300.9 | |
| 6.70 | 33.35 | 13.91 | 70.78 | 12.18 | 47.26 | 76.98 | 281.26 | 0.9721 | 446.3 | -130.3 | |
| 0.00 | 3.57 | 0.00 | 7.44 | 13.43 | 47.39 | 77.12 | 282.55 | 0.9725 | 432.0 | 282.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
