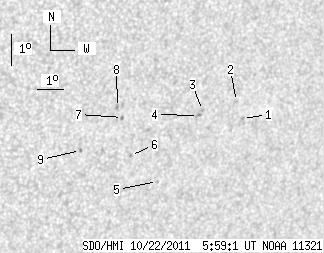

SDO HMI 2011-10-22 05:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.49 | 0.00 | 8.64 | -15.35 | 4.02 | 33.75 | 237.68 | 0.6358 | -79.7 | -69.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-22 05:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.74 | 0.00 | 1.15 | -15.26 | 6.77 | 36.50 | 239.79 | 0.6663 | 751.0 | 490.8 | |
| 0.00 | 1.74 | 0.00 | 1.14 | -14.70 | 6.43 | 36.15 | 240.32 | 0.6591 | 603.0 | 426.1 | |
| 0.00 | 1.04 | 0.00 | 0.68 | -14.92 | 5.18 | 34.90 | 239.17 | 0.6462 | 731.0 | 542.2 | |
| 0.00 | 1.83 | 0.00 | 1.18 | -15.07 | 5.06 | 34.78 | 238.88 | 0.6457 | 793.0 | 600.5 | |
| 0.00 | 1.13 | 0.00 | 0.73 | -17.12 | 3.92 | 33.64 | 235.28 | 0.6465 | -558.0 | -449.2 | |
| 0.00 | 1.31 | 0.00 | 0.83 | -16.22 | 2.73 | 32.46 | 235.56 | 0.6271 | -702.0 | -604.3 | |
| 0.00 | 1.48 | 0.00 | 0.93 | -14.98 | 2.22 | 31.95 | 236.87 | 0.6126 | -754.0 | -623.2 | |
| 0.00 | 1.74 | 0.00 | 1.08 | -14.65 | 1.99 | 31.71 | 237.15 | 0.6076 | -801.0 | -660.0 | |
| 0.00 | 1.48 | 0.00 | 0.92 | -15.96 | 0.86 | 30.59 | 234.36 | 0.6042 | -780.0 | -665.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
