groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11324 181.55 802.95 100.50 443.76 12.06 304.92 -25.36 73.20 0.4381 -122.9 8.5


previous   or   next   observation for the same group / back to the solar disc

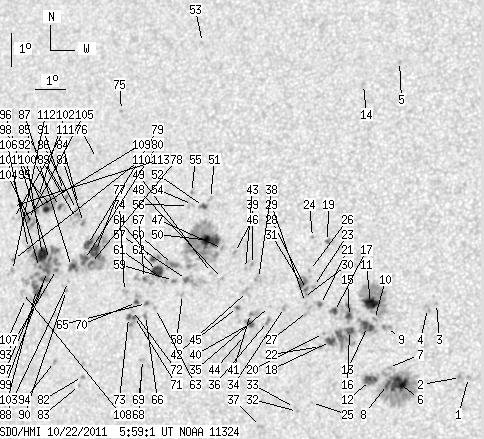

SDO HMI 2011-10-22 05:59:01 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 1.65 0.00 0.86 9.64 313.51 -16.76 74.45 0.2965 -848.0 -661.1
2 0.00 2.44 0.00 1.27 9.64 313.26 -17.02 74.67 0.3005 -879.0 -697.1
3 0.00 1.13 0.00 0.59 11.83 312.36 -17.91 68.65 0.3246 -975.0 -779.6
4 0.00 3.83 0.00 2.01 11.67 312.09 -18.19 69.38 0.3281 -756.0 -764.2
5 0.00 1.57 0.00 0.85 19.13 310.46 -19.82 52.74 0.4042 -722.0 -513.4
6 15.41 95.17 8.09 49.93 9.40 311.30 -18.98 76.68 0.3311 -1257.3 -508.2
7 0.00 1.48 0.00 0.78 9.87 310.95 -19.32 75.50 0.3382 -702.0 -662.7
8 2.96 -6.00 1.56 -6.00 9.36 310.95 -19.33 76.99 0.3366 -968.1 999999
9 0.00 4.88 0.00 2.57 11.06 310.81 -19.47 72.18 0.3451 -809.0 -781.1
10 0.00 1.92 0.00 1.01 11.29 310.41 -19.87 71.84 0.3523 -1033.0 -789.0
11 11.75 60.95 6.23 32.29 11.77 310.24 -20.04 70.67 0.3570 -1176.3 -429.7
12 8.27 12.63 4.36 6.66 9.46 310.40 -19.88 76.98 0.3458 -990.7 -717.4
13 8.45 18.20 4.47 9.64 11.08 310.19 -20.08 72.59 0.3547 -1116.5 -832.0
14 0.00 0.87 0.00 0.47 18.38 309.34 -20.94 55.65 0.4125 -826.0 -640.4
15 3.66 14.54 1.94 7.74 11.36 309.59 -20.69 72.25 0.3652 -1018.0 -668.8
16 4.70 36.22 2.50 19.26 10.94 309.62 -20.66 73.35 0.3631 -1093.7 -774.9
17 3.13 4.18 1.67 2.23 11.49 309.09 -21.19 72.23 0.3735 -847.9 -668.5
18 5.40 -16.00 2.88 -16.00 10.59 309.03 -21.25 74.64 0.3711 -848.1 999999
19 0.52 4.88 0.28 2.62 13.59 308.68 -21.60 67.26 0.3896 -935.8 -694.5
20 0.00 1.04 0.00 0.56 10.82 308.78 -21.49 74.17 0.3757 -757.0 -567.1
21 1.65 3.83 0.89 2.05 11.69 308.62 -21.66 72.05 0.3816 -871.2 -695.6
22 0.00 2.00 0.00 1.07 10.43 308.71 -21.56 75.24 0.3754 -801.0 -676.7
23 0.00 1.48 0.00 0.79 12.22 308.34 -21.94 70.89 0.3881 -942.0 -711.5
24 0.00 0.87 0.00 0.47 13.69 308.17 -22.11 67.42 0.3977 -828.0 -675.8
25 0.00 0.78 0.00 0.42 8.74 308.53 -21.74 79.77 0.3737 -863.0 -677.2
26 0.00 1.22 0.00 0.66 12.69 308.17 -22.11 69.84 0.3929 -814.0 -558.9
27 0.00 5.40 0.00 2.90 11.46 308.21 -22.07 72.87 0.3870 -792.0 -662.5
28 1.48 11.32 0.80 6.09 12.12 308.12 -22.16 71.28 0.3910 -1023.3 -684.6
29 0.00 0.52 0.00 0.28 11.73 308.12 -22.16 72.25 0.3894 -718.0 -635.2
30 0.00 0.96 0.00 0.52 11.88 308.04 -22.24 71.94 0.3912 -782.0 -622.6
31 3.40 -28.00 1.83 -28.00 12.29 307.94 -22.34 70.97 0.3945 -830.9 999999
32 0.00 1.04 0.00 0.56 8.46 308.09 -22.18 80.66 0.3801 -779.0 -550.3
33 0.00 1.13 0.00 0.61 8.58 307.99 -22.29 80.39 0.3820 -813.0 -666.8
34 0.00 2.61 0.00 1.41 11.55 307.44 -22.84 73.09 0.3991 -746.0 -617.8
35 0.00 0.96 0.00 0.52 11.57 306.94 -23.33 73.34 0.4068 -593.0 -454.0
36 0.00 2.87 0.00 1.56 11.11 306.92 -23.36 74.45 0.4056 -818.0 -677.2
37 0.00 2.44 0.00 1.32 7.97 306.91 -23.36 82.23 0.3981 -827.0 -601.7
38 0.00 4.96 0.00 2.70 12.39 306.50 -23.78 71.64 0.4167 -629.0 -629.7
39 0.00 1.74 0.00 0.95 12.81 306.26 -24.02 70.83 0.4220 -934.0 -795.3
40 4.09 5.83 2.22 3.17 11.03 306.36 -23.92 74.92 0.4139 -774.9 -533.2
41 0.35 5.49 0.19 2.98 11.33 306.33 -23.94 74.22 0.4153 891.8 368.6
42 0.00 5.75 0.00 3.13 11.99 306.17 -24.11 72.77 0.4201 -518.0 -545.3
43 0.00 1.39 0.00 0.76 12.68 306.04 -24.24 71.26 0.4248 -602.0 -495.4
44 0.00 1.13 0.00 0.62 10.67 306.19 -24.09 75.87 0.4153 -604.0 -484.2
45 1.31 1.57 0.71 0.86 11.50 305.88 -24.39 74.06 0.4227 864.9 795.0
46 0.00 1.48 0.00 0.81 13.14 305.62 -24.66 70.46 0.4330 -844.0 -643.6
47 0.00 1.83 0.00 1.01 13.25 305.20 -25.08 70.47 0.4396 -775.0 -728.6
48 0.00 1.22 0.00 0.67 12.35 305.30 -24.98 72.42 0.4346 -567.0 -398.0
49 0.00 1.48 0.00 0.82 12.51 304.91 -25.37 72.26 0.4410 -390.0 -308.9
50 16.28 105.97 9.01 58.74 13.47 304.77 -25.51 70.24 0.4469 -1032.4 -76.1
51 0.00 2.09 0.00 1.16 14.74 304.61 -25.66 67.63 0.4548 -655.0 -549.1
52 2.70 3.48 1.50 1.94 14.49 304.41 -25.87 68.29 0.4566 -845.6 -753.8
53 0.00 1.04 0.00 0.59 19.47 303.62 -26.66 59.05 0.4952 -746.0 -615.4
54 0.00 1.39 0.00 0.78 14.53 304.02 -26.25 68.43 0.4623 -686.0 -547.5
55 0.00 0.87 0.00 0.49 14.89 303.94 -26.33 67.74 0.4652 -666.0 -558.9
56 0.00 1.57 0.00 0.88 14.50 303.89 -26.39 68.59 0.4641 -484.0 -463.8
57 2.61 12.89 1.45 7.13 12.27 304.08 -26.19 73.21 0.4524 993.6 585.3
58 0.00 1.92 0.00 1.06 11.81 304.00 -26.28 74.23 0.4522 -535.0 -379.3
59 0.35 2.09 0.19 1.16 12.22 303.65 -26.63 73.51 0.4588 1026.2 816.2
60 0.00 9.67 0.00 5.39 12.70 303.56 -26.72 72.54 0.4617 1032.0 886.3
61 0.00 2.87 0.00 1.60 12.21 303.34 -26.94 73.68 0.4633 793.0 674.0
62 9.49 47.89 5.31 26.81 12.47 303.07 -27.21 73.25 0.4681 936.2 519.2
63 0.00 1.39 0.00 0.78 11.36 303.12 -27.16 75.58 0.4639 825.0 716.8
64 2.44 -62.00 1.37 -62.00 12.82 302.86 -27.42 72.61 0.4725 712.3 999999
65 1.48 2.96 0.83 1.66 11.49 302.80 -27.48 75.41 0.4692 720.3 731.1
66 0.00 3.13 0.00 1.76 11.13 302.80 -27.47 76.17 0.4681 842.0 647.1
67 1.31 -62.00 0.73 -62.00 12.24 302.65 -27.63 73.91 0.4736 -747.9 999999
68 0.00 2.26 0.00 1.27 9.81 302.83 -27.45 78.97 0.4647 829.0 696.0
69 0.00 1.13 0.00 0.63 9.58 302.85 -27.43 79.48 0.4639 677.0 510.0
70 1.48 5.92 0.83 3.33 11.51 302.45 -27.82 75.51 0.4743 -783.4 -120.9
71 1.13 8.10 0.64 4.55 11.09 302.43 -27.85 76.40 0.4736 -739.2 -656.2
72 0.00 1.83 0.00 1.03 11.26 302.34 -27.94 76.06 0.4754 -825.0 -585.3
73 2.00 -71.00 1.13 -71.00 11.05 302.23 -28.05 76.55 0.4765 -844.8 999999
74 0.00 2.09 0.00 1.18 11.82 302.00 -28.27 75.03 0.4819 -651.0 -590.0
75 0.00 1.13 0.00 0.65 17.27 301.12 -29.16 64.87 0.5159 768.0 614.9
76 0.00 0.52 0.00 0.30 15.78 300.47 -29.80 68.00 0.5179 740.0 607.7
77 10.71 72.79 6.13 41.68 12.98 300.85 -29.43 73.18 0.5022 1098.4 720.0
78 2.70 -77.00 1.54 -77.00 12.61 300.72 -29.56 73.95 0.5029 1105.7 999999
79 6.01 -77.00 3.45 -77.00 13.18 300.54 -29.74 72.92 0.5073 758.2 999999
80 3.83 -77.00 2.20 -77.00 12.72 300.50 -29.78 73.82 0.5065 957.5 999999
81 0.00 2.96 0.00 1.71 13.83 300.31 -29.97 71.76 0.5128 935.0 800.8
82 0.00 1.74 0.00 0.99 9.22 300.81 -29.46 80.68 0.4940 927.0 753.4
83 0.00 1.22 0.00 0.69 8.94 300.73 -29.54 81.25 0.4948 774.0 593.6
84 0.00 0.61 0.00 0.35 14.36 300.05 -30.22 70.86 0.5183 828.0 672.0
85 0.00 5.57 0.00 3.22 13.94 300.04 -30.23 71.66 0.5169 629.0 734.8
86 0.00 0.70 0.00 0.40 14.21 300.00 -30.27 71.17 0.5184 754.0 704.9
87 3.66 -77.00 2.11 -77.00 12.49 300.07 -30.21 74.42 0.5121 922.2 999999
88 0.00 0.87 0.00 0.50 12.03 300.02 -30.26 75.32 0.5115 748.0 584.7
89 0.35 2.35 0.20 1.37 14.55 299.59 -30.68 70.71 0.5254 920.8 693.0
90 0.00 1.31 0.00 0.75 11.76 299.98 -30.30 75.86 0.5114 819.0 693.1
91 0.00 1.04 0.00 0.61 14.76 299.45 -30.82 70.39 0.5281 618.0 470.2
92 2.00 3.13 1.17 1.82 14.27 299.39 -30.89 71.32 0.5273 845.7 797.5
93 1.31 90.21 0.76 52.47 12.37 299.55 -30.73 74.82 0.5192 910.6 720.0
94 0.00 1.83 0.00 1.05 9.62 299.79 -30.48 80.08 0.5098 843.0 697.2
95 1.22 22.46 0.71 13.14 14.23 299.14 -31.14 71.50 0.5306 926.3 666.4
96 1.74 -93.00 1.01 -93.00 12.66 299.26 -31.02 74.37 0.5241 1052.8 999999
97 2.53 -93.00 1.47 -93.00 12.30 299.24 -31.04 75.07 0.5235 949.4 999999
98 3.22 -95.00 1.88 -95.00 14.16 298.90 -31.38 71.73 0.5338 966.1 999999
99 2.53 -93.00 1.47 -93.00 12.06 299.16 -31.11 75.55 0.5239 924.4 999999
100 10.88 -93.00 6.34 -93.00 12.77 298.99 -31.28 74.26 0.5282 931.5 999999
101 1.04 -93.00 0.61 -93.00 12.41 298.94 -31.34 74.96 0.5281 793.1 999999
102 0.00 3.05 0.00 1.79 14.54 298.59 -31.69 71.17 0.5394 576.0 403.3
103 7.75 -93.00 4.51 -93.00 11.74 298.92 -31.36 76.22 0.5267 853.8 999999
104 0.96 12.45 0.56 7.32 13.69 298.50 -31.77 72.75 0.5378 813.4 558.4
105 1.31 -104.00 0.77 -104.00 13.83 298.33 -31.94 72.55 0.5406 758.3 999999
106 0.00 3.40 0.00 1.99 12.96 298.46 -31.81 74.10 0.5363 514.0 498.5
107 0.00 0.70 0.00 0.41 11.45 298.56 -31.72 76.86 0.5312 506.0 472.0
108 0.00 2.26 0.00 1.32 11.63 298.43 -31.85 76.57 0.5335 506.0 464.7
109 0.00 1.04 0.00 0.62 13.84 298.01 -32.27 72.65 0.5453 316.0 304.9
110 0.00 1.57 0.00 0.92 12.60 297.97 -32.30 74.91 0.5423 716.0 616.1
111 0.00 0.87 0.00 0.51 13.83 297.79 -32.49 72.75 0.5483 456.0 398.9
112 0.00 2.09 0.00 1.23 12.27 297.98 -32.29 75.51 0.5413 703.0 530.3
113 0.00 1.65 0.00 0.98 14.19 297.69 -32.58 72.14 0.5507 437.0 312.9


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
