SDO HMI 2011-10-22 05:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.66 | 49.11 | 3.90 | 25.09 | 18.01 | 324.43 | -5.85 | 22.97 | 0.2425 | 431.3 | 368.6 | |
|
previous
or next observation for the same group /

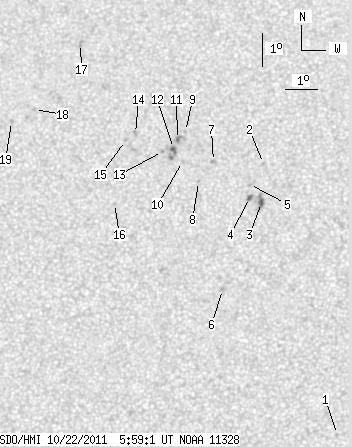

back to the solar disc SDO HMI 2011-10-22 05:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.61 | 9.98 | 329.12 | -1.15 | 13.73 | 0.0839 | 634.0 | 524.4 | |
| 0.00 | 1.65 | 0.00 | 0.84 | 18.16 | 326.75 | -3.52 | 14.71 | 0.2309 | -849.0 | -607.7 | |
| 2.87 | 9.23 | 1.46 | 4.68 | 16.97 | 326.72 | -3.56 | 16.39 | 0.2115 | -1076.5 | -846.9 | |
| 2.09 | 2.87 | 1.06 | 1.46 | 17.12 | 326.34 | -3.94 | 17.79 | 0.2158 | -968.6 | -799.4 | |
| 0.00 | 1.48 | 0.00 | 0.75 | 17.52 | 326.33 | -3.95 | 17.26 | 0.2223 | -796.0 | -642.5 | |
| 0.00 | 1.83 | 0.00 | 0.92 | 14.32 | 325.56 | -4.72 | 26.97 | 0.1766 | 992.0 | 730.9 | |
| 0.00 | 2.53 | 0.00 | 1.29 | 18.21 | 325.18 | -5.10 | 20.70 | 0.2398 | 855.0 | 673.7 | |
| 0.00 | 0.70 | 0.00 | 0.35 | 17.60 | 324.73 | -5.55 | 23.42 | 0.2331 | 988.0 | 683.4 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 19.12 | 324.26 | -6.01 | 22.50 | 0.2598 | 828.0 | 558.7 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 18.20 | 324.20 | -6.08 | 24.24 | 0.2460 | 856.0 | 749.0 | |
| 1.13 | 4.61 | 0.58 | 2.36 | 18.88 | 324.02 | -6.26 | 23.72 | 0.2576 | 1111.7 | 872.1 | |
| 1.57 | 9.75 | 0.80 | 4.99 | 18.60 | 323.90 | -6.37 | 24.58 | 0.2542 | 1166.4 | 904.9 | |
| 0.00 | 1.31 | 0.00 | 0.67 | 18.50 | 323.56 | -6.72 | 25.90 | 0.2552 | 873.0 | 722.2 | |
| 0.00 | 2.09 | 0.00 | 1.07 | 19.05 | 322.68 | -7.60 | 27.72 | 0.2700 | 932.0 | 701.8 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 18.83 | 322.37 | -7.91 | 29.07 | 0.2692 | 807.0 | 636.7 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 16.90 | 322.11 | -8.17 | 34.01 | 0.2441 | 703.0 | 459.0 | |
| 0.00 | 2.61 | 0.00 | 1.37 | 21.80 | 320.75 | -9.53 | 28.35 | 0.3250 | 689.0 | 646.7 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 19.74 | 319.40 | -10.88 | 35.35 | 0.3084 | 838.0 | 614.3 | |
| 0.00 | 1.57 | 0.00 | 0.82 | 19.36 | 318.68 | -11.59 | 37.83 | 0.3105 | 822.0 | 628.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
