SDO HMI 2011-10-22 06:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.84 | 111.19 | 68.98 | 517.19 | 9.10 | 53.77 | 84.04 | 278.59 | 0.9922 | 158.9 | -39.3 | |
|
previous
or next observation for the same group /

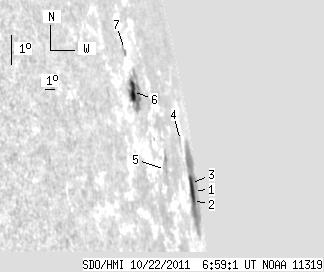

back to the solar disc SDO HMI 2011-10-22 06:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.57 | 59.12 | 33.07 | 389.77 | 8.36 | 55.77 | 86.04 | 277.99 | 0.9970 | 413.2 | 7.8 | |
| 1.65 | -1.00 | 8.73 | -1.00 | 8.14 | 54.90 | 85.17 | 277.69 | 0.9958 | -294.3 | 999999 | |
| 2.87 | -1.00 | 14.81 | -1.00 | 8.64 | 55.07 | 85.34 | 278.21 | 0.9960 | -303.0 | 999999 | |
| 0.00 | 2.00 | 0.00 | 8.94 | 10.03 | 54.17 | 84.44 | 279.53 | 0.9943 | -393.0 | -343.2 | |
| 0.00 | 15.15 | 0.00 | 41.46 | 9.53 | 49.97 | 80.24 | 278.74 | 0.9842 | -365.0 | -254.7 | |
| 5.75 | 31.52 | 12.37 | 69.67 | 12.16 | 47.24 | 77.51 | 281.26 | 0.9742 | 421.7 | -147.2 | |
| 0.00 | 3.40 | 0.00 | 7.35 | 13.43 | 47.42 | 77.69 | 282.58 | 0.9747 | 372.0 | 254.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
