SDO HMI 2011-10-22 06:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.87 | 387.09 | 52.81 | 301.69 | 15.37 | 279.43 | -50.30 | 74.40 | 0.7716 | -293.0 | -89.8 | |
|
previous
or next observation for the same group /

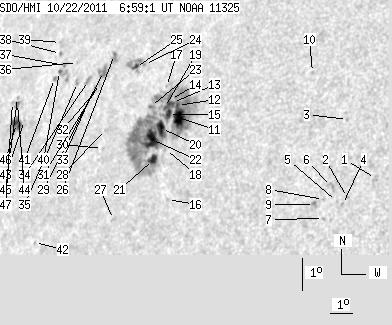

back to the solar disc SDO HMI 2011-10-22 06:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.57 | 0.00 | 2.32 | 14.33 | 289.73 | -40.00 | 74.08 | 0.6500 | -497.0 | -380.8 | |
| 0.00 | 1.04 | 0.00 | 0.69 | 13.70 | 288.73 | -41.00 | 75.26 | 0.6615 | -626.0 | -542.8 | |
| 0.00 | 1.04 | 0.00 | 0.70 | 16.04 | 288.18 | -41.55 | 71.90 | 0.6730 | -602.0 | -455.6 | |
| 0.00 | 1.31 | 0.00 | 0.86 | 13.47 | 288.57 | -41.16 | 75.62 | 0.6631 | -697.0 | -637.2 | |
| 0.00 | 0.61 | 0.00 | 0.40 | 13.55 | 288.31 | -41.42 | 75.56 | 0.6665 | -675.0 | -582.6 | |
| 0.00 | 4.01 | 0.00 | 2.67 | 13.99 | 288.00 | -41.72 | 74.96 | 0.6710 | -644.0 | -624.7 | |
| 0.00 | 1.22 | 0.00 | 0.81 | 13.01 | 287.89 | -41.84 | 76.44 | 0.6710 | -612.0 | -532.1 | |
| 0.00 | 1.04 | 0.00 | 0.70 | 13.58 | 287.76 | -41.97 | 75.62 | 0.6734 | -753.0 | -568.9 | |
| 0.00 | 2.79 | 0.00 | 1.87 | 13.40 | 287.43 | -42.30 | 75.93 | 0.6773 | -616.0 | -462.1 | |
| 0.00 | 1.13 | 0.00 | 0.78 | 17.37 | 286.33 | -43.40 | 70.45 | 0.6983 | -432.0 | -303.1 | |
| 12.63 | 285.59 | 9.54 | 219.07 | 15.63 | 280.81 | -48.91 | 73.90 | 0.7578 | -1053.9 | -200.5 | |
| 1.31 | -11.00 | 0.99 | -11.00 | 15.98 | 280.65 | -49.08 | 73.46 | 0.7601 | -751.1 | 999999 | |
| 0.96 | -11.00 | 0.73 | -11.00 | 16.06 | 280.39 | -49.34 | 73.40 | 0.7630 | -596.3 | 999999 | |
| 0.87 | -11.00 | 0.67 | -11.00 | 16.14 | 280.26 | -49.47 | 73.31 | 0.7645 | -477.6 | 999999 | |
| 4.35 | -11.00 | 3.32 | -11.00 | 15.69 | 280.32 | -49.41 | 73.89 | 0.7633 | -699.5 | 999999 | |
| 0.00 | 1.39 | 0.00 | 1.04 | 13.14 | 281.03 | -48.70 | 77.16 | 0.7527 | -591.0 | -435.9 | |
| 0.00 | 0.96 | 0.00 | 0.74 | 16.52 | 279.94 | -49.79 | 72.87 | 0.7685 | -326.0 | -274.6 | |
| 0.00 | 1.39 | 0.00 | 1.06 | 14.63 | 280.51 | -49.22 | 75.25 | 0.7599 | -333.0 | -452.3 | |
| 1.31 | -11.00 | 1.00 | -11.00 | 15.88 | 280.06 | -49.67 | 73.68 | 0.7663 | -398.3 | 999999 | |
| 8.45 | -11.00 | 6.47 | -11.00 | 15.24 | 280.13 | -49.60 | 74.50 | 0.7648 | -821.2 | 999999 | |
| 6.27 | -11.00 | 4.80 | -11.00 | 14.29 | 280.04 | -49.69 | 75.75 | 0.7647 | -865.6 | 999999 | |
| 14.45 | -11.00 | 11.14 | -11.00 | 14.88 | 279.76 | -49.97 | 75.02 | 0.7683 | -696.0 | 999999 | |
| 1.22 | -11.00 | 0.95 | -11.00 | 15.87 | 279.39 | -50.34 | 73.79 | 0.7735 | -157.4 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.90 | 17.11 | 278.64 | -51.09 | 72.31 | 0.7829 | 211.0 | 158.2 | |
| 2.26 | 13.23 | 1.81 | 10.59 | 16.99 | 278.24 | -51.49 | 72.52 | 0.7869 | -408.2 | 77.8 | |
| 1.39 | 5.57 | 1.14 | 4.57 | 17.30 | 277.04 | -52.69 | 72.30 | 0.7994 | 648.8 | 632.1 | |
| 0.00 | 2.18 | 0.00 | 1.71 | 12.37 | 278.66 | -51.07 | 78.37 | 0.7781 | -513.0 | -349.7 | |
| 0.00 | 0.87 | 0.00 | 0.70 | 15.02 | 277.44 | -52.29 | 75.10 | 0.7929 | 576.0 | 521.6 | |
| 0.00 | 8.53 | 0.00 | 7.05 | 16.75 | 276.69 | -53.04 | 73.03 | 0.8023 | 361.0 | 462.5 | |
| 0.00 | 1.31 | 0.00 | 1.05 | 14.45 | 277.48 | -52.25 | 75.82 | 0.7920 | 659.0 | 546.3 | |
| 0.00 | 1.83 | 0.00 | 1.51 | 16.38 | 276.63 | -53.10 | 73.50 | 0.8025 | 536.0 | 478.3 | |
| 0.00 | 1.31 | 0.00 | 1.08 | 16.15 | 276.51 | -53.22 | 73.79 | 0.8034 | 551.0 | 460.3 | |
| 0.00 | 0.87 | 0.00 | 0.72 | 16.24 | 276.42 | -53.31 | 73.69 | 0.8044 | 573.0 | 501.5 | |
| 0.00 | 3.31 | 0.00 | 2.77 | 16.43 | 276.03 | -53.70 | 73.51 | 0.8084 | 629.0 | 549.8 | |
| 0.00 | 2.44 | 0.00 | 2.07 | 16.32 | 275.49 | -54.24 | 73.69 | 0.8136 | 718.0 | 560.9 | |
| 0.00 | 1.04 | 0.00 | 0.89 | 16.92 | 275.24 | -54.49 | 72.99 | 0.8166 | 562.0 | 458.6 | |
| 0.00 | 1.83 | 0.00 | 1.59 | 16.78 | 274.59 | -55.14 | 73.23 | 0.8227 | 573.0 | 508.7 | |
| 0.00 | 1.48 | 0.00 | 1.29 | 17.12 | 274.22 | -55.51 | 72.86 | 0.8265 | 582.0 | 521.5 | |
| 0.00 | 0.96 | 0.00 | 0.84 | 17.45 | 274.06 | -55.66 | 72.48 | 0.8282 | 447.0 | 391.7 | |
| 1.39 | 7.92 | 1.21 | 6.84 | 16.58 | 274.40 | -55.33 | 73.49 | 0.8243 | 522.8 | 634.8 | |
| 0.35 | 1.65 | 0.30 | 1.44 | 16.35 | 274.22 | -55.51 | 73.79 | 0.8258 | 642.0 | 526.9 | |
| 0.00 | 1.04 | 0.00 | 0.89 | 11.40 | 274.91 | -54.82 | 79.78 | 0.8163 | 465.0 | 373.2 | |
| 0.00 | 1.22 | 0.00 | 1.09 | 14.98 | 273.12 | -56.61 | 75.54 | 0.8351 | 616.0 | 457.1 | |
| 1.74 | 3.66 | 1.58 | 3.33 | 15.46 | 272.52 | -57.21 | 75.01 | 0.8409 | 466.5 | 423.5 | |
| 0.00 | 0.78 | 0.00 | 0.71 | 15.63 | 272.44 | -57.28 | 74.80 | 0.8417 | 266.0 | 234.1 | |
| 7.92 | 14.80 | 7.16 | 13.39 | 14.86 | 272.72 | -57.01 | 75.71 | 0.8388 | 578.2 | 276.2 | |
| 0.00 | 1.04 | 0.00 | 0.96 | 15.46 | 272.23 | -57.50 | 75.02 | 0.8436 | 43.0 | 10.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
