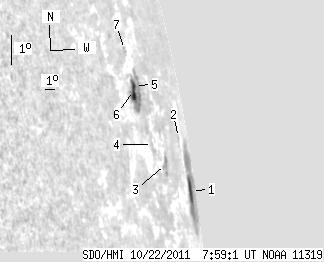

SDO HMI 2011-10-22 07:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.97 | 94.47 | 48.12 | 502.96 | 9.04 | 54.19 | 85.01 | 278.61 | 0.9939 | 347.6 | -52.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-22 07:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.40 | 52.67 | 35.52 | 397.80 | 8.38 | 55.70 | 86.52 | 278.04 | 0.9976 | 428.2 | -20.8 | |
| 0.00 | 1.57 | 0.00 | 7.61 | 10.14 | 54.13 | 84.95 | 279.68 | 0.9952 | -354.0 | -335.3 | |
| 0.00 | 7.75 | 0.00 | 22.50 | 9.68 | 50.12 | 80.94 | 278.94 | 0.9862 | -449.0 | -312.7 | |
| 0.00 | 0.70 | 0.00 | 1.76 | 10.43 | 48.54 | 79.36 | 279.60 | 0.9812 | 141.0 | 182.1 | |
| 1.04 | 29.60 | 2.42 | 68.39 | 12.32 | 47.60 | 78.42 | 281.48 | 0.9776 | -241.1 | -153.6 | |
| 4.53 | -5.00 | 10.18 | -5.00 | 12.19 | 47.31 | 78.13 | 281.33 | 0.9765 | 368.4 | 999999 | |
| 0.00 | 2.18 | 0.00 | 4.90 | 13.45 | 47.33 | 78.14 | 282.62 | 0.9764 | 401.0 | 292.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
