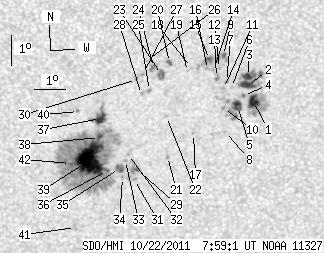

SDO HMI 2011-10-22 07:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 100.91 | 473.34 | 56.06 | 263.31 | -21.14 | 333.96 | 4.78 | 190.01 | 0.4552 | -164.2 | -119.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-22 07:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.58 | 36.39 | 5.31 | 20.21 | -20.06 | 337.69 | 8.51 | 198.00 | 0.4515 | 1014.8 | 268.4 | |
| 8.01 | 32.82 | 4.42 | 18.09 | -19.53 | 337.47 | 8.29 | 197.95 | 0.4426 | 947.2 | 715.6 | |
| 4.53 | -2.00 | 2.49 | -2.00 | -19.24 | 337.45 | 8.27 | 198.14 | 0.4381 | 1209.7 | 999999 | |
| 0.87 | 2.96 | 0.48 | 1.64 | -19.86 | 337.36 | 8.18 | 197.49 | 0.4470 | 901.8 | 438.5 | |
| 7.31 | 23.07 | 4.05 | 12.79 | -20.19 | 337.18 | 8.00 | 196.91 | 0.4510 | 894.7 | 595.5 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -19.59 | 336.96 | 7.78 | 196.87 | 0.4411 | 728.0 | 524.8 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -19.39 | 336.79 | 7.61 | 196.66 | 0.4373 | 793.0 | 667.2 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -21.05 | 336.84 | 7.66 | 195.67 | 0.4623 | 424.0 | 367.4 | |
| 1.39 | 7.92 | 0.76 | 4.33 | -18.54 | 336.66 | 7.47 | 196.99 | 0.4239 | 989.6 | 851.9 | |
| 0.00 | 1.65 | 0.00 | 0.92 | -20.28 | 336.74 | 7.56 | 195.96 | 0.4505 | 638.0 | 485.1 | |
| 0.00 | 1.22 | 0.00 | 0.67 | -19.62 | 336.71 | 7.52 | 196.33 | 0.4404 | 808.0 | 591.4 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -18.96 | 336.55 | 7.37 | 196.46 | 0.4298 | 811.0 | 713.6 | |
| 0.00 | 3.48 | 0.00 | 1.91 | -19.26 | 336.47 | 7.28 | 196.08 | 0.4339 | 742.0 | 807.8 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -19.02 | 336.36 | 7.18 | 196.02 | 0.4299 | 853.0 | 704.6 | |
| 2.87 | 8.71 | 1.57 | 4.76 | -18.66 | 336.22 | 7.03 | 195.96 | 0.4238 | 1037.6 | 794.9 | |
| 0.00 | 1.65 | 0.00 | 0.91 | -18.99 | 336.17 | 6.98 | 195.63 | 0.4286 | 673.0 | 606.4 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -21.10 | 335.81 | 6.63 | 193.63 | 0.4591 | -655.0 | -462.2 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -18.92 | 335.66 | 6.47 | 194.58 | 0.4254 | 772.0 | 629.0 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -19.05 | 335.53 | 6.35 | 194.24 | 0.4269 | 771.0 | 583.0 | |
| 1.04 | 2.35 | 0.57 | 1.28 | -18.75 | 334.95 | 5.77 | 193.16 | 0.4201 | 1012.7 | 822.3 | |
| 0.00 | 1.83 | 0.00 | 1.02 | -21.86 | 335.01 | 5.82 | 191.66 | 0.4679 | -807.0 | -615.0 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -20.53 | 334.92 | 5.74 | 192.14 | 0.4473 | 638.0 | 494.5 | |
| 0.00 | 6.44 | 0.00 | 3.52 | -19.14 | 334.71 | 5.53 | 192.41 | 0.4253 | 1040.0 | 868.7 | |
| 0.00 | 4.09 | 0.00 | 2.23 | -18.91 | 334.45 | 5.27 | 191.96 | 0.4208 | 1020.0 | 848.2 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -19.66 | 334.35 | 5.17 | 191.36 | 0.4322 | 810.0 | 650.1 | |
| 0.00 | 0.35 | 0.00 | 0.19 | -18.71 | 334.19 | 5.01 | 191.49 | 0.4169 | 575.0 | 581.8 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -19.13 | 334.11 | 4.93 | 191.10 | 0.4232 | 952.0 | 773.2 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -19.79 | 334.10 | 4.92 | 190.77 | 0.4334 | 849.0 | 696.7 | |
| 1.57 | 12.97 | 0.88 | 7.28 | -22.29 | 334.02 | 4.84 | 189.56 | 0.4716 | -903.4 | -584.8 | |
| 0.00 | 1.22 | 0.00 | 0.67 | -19.30 | 333.92 | 4.74 | 190.62 | 0.4252 | 845.0 | 694.6 | |
| 0.00 | 1.83 | 0.00 | 1.03 | -22.63 | 333.97 | 4.78 | 189.34 | 0.4765 | -617.0 | -494.6 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -21.78 | 333.74 | 4.56 | 189.21 | 0.4631 | -808.0 | -611.2 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -21.98 | 333.65 | 4.47 | 188.96 | 0.4660 | -856.0 | -666.9 | |
| 0.00 | 1.65 | 0.00 | 0.93 | -22.56 | 333.58 | 4.39 | 188.61 | 0.4745 | -664.0 | -511.0 | |
| 3.05 | 6.62 | 1.71 | 3.71 | -22.25 | 333.47 | 4.29 | 188.50 | 0.4696 | -899.6 | -740.9 | |
| 0.26 | 296.80 | 0.15 | 165.66 | -22.32 | 333.08 | 3.90 | 187.73 | 0.4698 | -725.7 | -402.2 | |
| 6.97 | -36.00 | 3.84 | -36.00 | -20.58 | 332.81 | 3.63 | 187.73 | 0.4423 | -1032.5 | 999999 | |
| 2.70 | -36.00 | 1.50 | -36.00 | -21.21 | 332.80 | 3.61 | 187.50 | 0.4521 | -1077.2 | 999999 | |
| 49.54 | -36.00 | 27.65 | -36.00 | -21.94 | 332.52 | 3.34 | 186.73 | 0.4630 | -1285.7 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -20.34 | 332.11 | 2.92 | 186.30 | 0.4373 | 564.0 | 488.6 | |
| 0.00 | 1.39 | 0.00 | 0.79 | -24.25 | 332.09 | 2.91 | 185.36 | 0.4975 | -571.0 | -553.1 | |
| 1.22 | -36.00 | 0.68 | -36.00 | -22.07 | 331.88 | 2.70 | 185.42 | 0.4639 | -740.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
