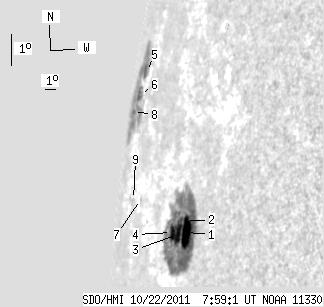

SDO HMI 2011-10-22 07:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.63 | 270.25 | 99.43 | 764.70 | 7.94 | 249.22 | -79.96 | 82.90 | 0.9802 | -123.4 | -61.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-22 07:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.42 | 195.81 | 34.91 | 368.29 | 6.18 | 254.79 | -74.39 | 85.08 | 0.9623 | -548.0 | -95.2 | |
| 0.44 | -1.00 | 0.81 | -1.00 | 6.46 | 254.21 | -74.97 | 84.75 | 0.9649 | 16.2 | 999999 | |
| 9.75 | -1.00 | 18.64 | -1.00 | 6.03 | 253.79 | -75.39 | 85.16 | 0.9669 | -186.7 | 999999 | |
| 4.09 | -1.00 | 8.19 | -1.00 | 6.03 | 253.05 | -76.13 | 85.12 | 0.9701 | 297.8 | 999999 | |
| 4.27 | 72.18 | 18.09 | 388.81 | 10.18 | 245.03 | -84.16 | 80.34 | 0.9938 | 271.4 | -39.6 | |
| 2.70 | -5.00 | 12.85 | -5.00 | 9.43 | 244.45 | -84.73 | 81.05 | 0.9949 | 352.7 | 999999 | |
| 0.00 | 1.22 | 0.00 | 3.78 | 6.55 | 247.86 | -81.32 | 84.20 | 0.9879 | 290.0 | 303.0 | |
| 0.96 | -5.00 | 5.94 | -5.00 | 8.77 | 242.99 | -86.19 | 81.59 | 0.9972 | -395.4 | 999999 | |
| 0.00 | 1.04 | 0.00 | 3.82 | 6.42 | 246.40 | -82.78 | 84.22 | 0.9915 | 255.0 | 220.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
