SDO HMI 2011-10-22 08:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 154.61 | 773.35 | 84.72 | 422.47 | 12.15 | 304.85 | -23.79 | 72.08 | 0.4150 | -52.4 | -48.9 | |
|
previous
or next observation for the same group /

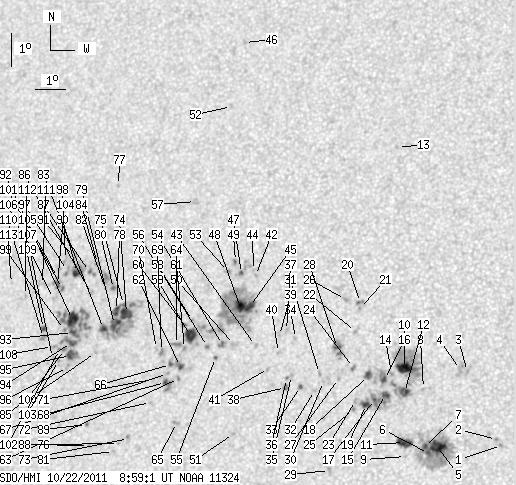

back to the solar disc SDO HMI 2011-10-22 08:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.65 | 0.00 | 0.85 | 9.51 | 313.42 | -15.22 | 73.54 | 0.2711 | -963.0 | -745.2 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 9.69 | 313.26 | -15.38 | 73.07 | 0.2745 | -907.0 | -746.5 | |
| 0.00 | 1.39 | 0.00 | 0.72 | 11.70 | 312.23 | -16.40 | 67.42 | 0.3008 | -1010.0 | -838.6 | |
| 0.00 | 6.79 | 0.00 | 3.53 | 11.75 | 312.01 | -16.63 | 67.50 | 0.3046 | -500.0 | -697.5 | |
| 11.32 | 95.59 | 5.88 | 49.68 | 9.43 | 311.41 | -17.23 | 75.43 | 0.3032 | -1283.5 | -529.2 | |
| 1.39 | -5.00 | 0.72 | -5.00 | 9.21 | 311.13 | -17.50 | 76.31 | 0.3069 | -915.4 | 999999 | |
| 2.26 | -5.00 | 1.18 | -5.00 | 9.42 | 311.00 | -17.64 | 75.75 | 0.3098 | -969.1 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 11.15 | 310.86 | -17.77 | 70.48 | 0.3191 | -739.0 | -610.4 | |
| 0.00 | 0.70 | 0.00 | 0.36 | 9.10 | 310.41 | -18.23 | 77.10 | 0.3182 | -397.0 | -250.0 | |
| 11.06 | 65.12 | 5.80 | 34.17 | 11.74 | 310.22 | -18.42 | 69.36 | 0.3321 | -1162.6 | -407.0 | |
| 10.10 | 14.19 | 5.28 | 7.42 | 9.52 | 310.36 | -18.28 | 75.84 | 0.3205 | -940.9 | -683.7 | |
| 6.27 | 17.06 | 3.28 | 8.95 | 11.02 | 310.27 | -18.37 | 71.41 | 0.3278 | -1136.2 | -858.9 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 18.42 | 309.37 | -19.26 | 53.50 | 0.3911 | -824.0 | -689.1 | |
| 0.00 | 2.79 | 0.00 | 1.47 | 11.60 | 309.81 | -18.83 | 70.09 | 0.3377 | -692.0 | -646.6 | |
| 4.09 | 23.68 | 2.15 | 12.46 | 10.94 | 309.66 | -18.98 | 72.12 | 0.3370 | -1114.6 | -758.3 | |
| 3.22 | 20.37 | 1.70 | 10.74 | 11.39 | 309.60 | -19.04 | 70.88 | 0.3399 | -1028.9 | -669.3 | |
| 0.78 | -15.00 | 0.41 | -15.00 | 10.78 | 309.32 | -19.32 | 72.83 | 0.3416 | -1069.3 | 999999 | |
| 4.00 | -16.00 | 2.12 | -16.00 | 11.49 | 309.07 | -19.56 | 71.01 | 0.3485 | -828.6 | 999999 | |
| 4.27 | 7.14 | 2.25 | 3.77 | 10.62 | 309.07 | -19.57 | 73.45 | 0.3449 | -904.4 | -747.3 | |
| 0.00 | 3.48 | 0.00 | 1.85 | 13.68 | 308.64 | -20.00 | 65.57 | 0.3666 | -878.0 | -688.3 | |
| 0.00 | 1.48 | 0.00 | 0.79 | 13.50 | 308.62 | -20.01 | 66.05 | 0.3657 | -924.0 | -763.2 | |
| 0.00 | 1.65 | 0.00 | 0.88 | 12.80 | 308.55 | -20.09 | 67.92 | 0.3630 | -873.0 | -635.5 | |
| 0.00 | 2.35 | 0.00 | 1.24 | 10.73 | 308.71 | -19.93 | 73.39 | 0.3510 | -561.0 | -547.7 | |
| 0.00 | 2.96 | 0.00 | 1.57 | 11.72 | 308.57 | -20.06 | 70.78 | 0.3573 | -1014.0 | -747.1 | |
| 0.00 | 1.83 | 0.00 | 0.97 | 10.46 | 308.66 | -19.97 | 74.18 | 0.3507 | -793.0 | -644.0 | |
| 0.00 | 1.65 | 0.00 | 0.88 | 13.75 | 308.14 | -20.50 | 65.85 | 0.3744 | -973.0 | -792.7 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 11.37 | 308.11 | -20.53 | 72.05 | 0.3629 | -920.0 | -755.0 | |
| 2.61 | 11.14 | 1.39 | 5.93 | 12.30 | 308.00 | -20.63 | 69.68 | 0.3687 | -897.1 | -719.5 | |
| 0.00 | 2.52 | 0.00 | 1.34 | 8.61 | 308.00 | -20.63 | 79.68 | 0.3557 | -792.0 | -617.2 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 11.27 | 307.63 | -21.01 | 72.66 | 0.3699 | -779.0 | -600.1 | |
| 0.00 | 2.26 | 0.00 | 1.21 | 11.50 | 307.48 | -21.15 | 72.14 | 0.3732 | -831.0 | -608.2 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 10.99 | 307.36 | -21.28 | 73.56 | 0.3730 | -750.0 | -574.8 | |
| 0.70 | 2.35 | 0.37 | 1.26 | 11.09 | 306.89 | -21.74 | 73.57 | 0.3807 | -778.6 | -637.6 | |
| 0.00 | 1.74 | 0.00 | 0.94 | 12.53 | 306.61 | -22.03 | 70.15 | 0.3910 | -857.0 | -628.9 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 11.41 | 306.57 | -22.06 | 72.95 | 0.3868 | 105.0 | 144.9 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 11.32 | 306.41 | -22.22 | 73.28 | 0.3889 | 681.0 | 606.0 | |
| 0.00 | 2.52 | 0.00 | 1.36 | 12.76 | 306.29 | -22.35 | 69.81 | 0.3968 | -815.0 | -570.4 | |
| 0.00 | 3.05 | 0.00 | 1.64 | 11.05 | 306.40 | -22.23 | 73.97 | 0.3880 | -947.0 | -753.2 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 12.60 | 306.07 | -22.56 | 70.34 | 0.3994 | -633.0 | -419.9 | |
| 0.00 | 1.65 | 0.00 | 0.89 | 12.09 | 306.08 | -22.55 | 71.58 | 0.3970 | -781.0 | -692.6 | |
| 0.00 | 1.65 | 0.00 | 0.89 | 11.59 | 305.80 | -22.84 | 72.95 | 0.3994 | 758.0 | 633.3 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 14.37 | 305.09 | -23.55 | 66.91 | 0.4225 | -836.0 | -680.8 | |
| 0.00 | 1.83 | 0.00 | 0.99 | 12.27 | 305.31 | -23.33 | 71.62 | 0.4095 | -590.0 | -486.3 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 14.52 | 305.00 | -23.63 | 66.64 | 0.4245 | -800.0 | -719.2 | |
| 3.74 | 117.44 | 2.04 | 64.24 | 13.43 | 304.99 | -23.65 | 69.11 | 0.4193 | -1078.2 | -100.6 | |
| 0.00 | 1.31 | 0.00 | 0.74 | 21.47 | 303.67 | -24.97 | 53.90 | 0.4881 | -790.0 | -640.5 | |
| 1.22 | 9.31 | 0.67 | 5.10 | 14.42 | 304.61 | -24.02 | 67.16 | 0.4297 | -930.4 | -588.9 | |
| 4.35 | -45.00 | 2.38 | -45.00 | 13.39 | 304.69 | -23.94 | 69.41 | 0.4236 | -1065.2 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 14.77 | 304.37 | -24.27 | 66.56 | 0.4350 | -449.0 | -404.2 | |
| 0.00 | 2.61 | 0.00 | 1.42 | 12.27 | 304.60 | -24.03 | 72.03 | 0.4201 | 834.0 | 595.2 | |
| 0.00 | 1.31 | 0.00 | 0.71 | 9.61 | 304.80 | -23.84 | 78.27 | 0.4087 | -650.0 | -498.5 | |
| 0.00 | 2.09 | 0.00 | 1.17 | 19.48 | 303.56 | -25.08 | 57.65 | 0.4749 | -703.0 | -493.2 | |
| 0.00 | 2.61 | 0.00 | 1.44 | 14.46 | 304.17 | -24.47 | 67.38 | 0.4363 | -796.0 | -601.9 | |
| 0.00 | 3.66 | 0.00 | 2.00 | 12.26 | 304.20 | -24.43 | 72.29 | 0.4261 | 1107.0 | 907.6 | |
| 0.44 | 1.39 | 0.24 | 0.76 | 11.86 | 304.01 | -24.63 | 73.31 | 0.4276 | -533.2 | -420.6 | |
| 0.00 | 1.74 | 0.00 | 0.96 | 12.18 | 303.71 | -24.93 | 72.74 | 0.4333 | 981.0 | 860.5 | |
| 0.00 | 3.92 | 0.00 | 2.19 | 16.54 | 302.77 | -25.87 | 64.05 | 0.4671 | -572.0 | -534.8 | |
| 0.00 | 1.48 | 0.00 | 0.82 | 12.94 | 303.12 | -25.52 | 71.36 | 0.4449 | 869.0 | 665.7 | |
| 11.06 | 16.98 | 6.10 | 9.37 | 12.49 | 303.10 | -25.54 | 72.37 | 0.4435 | 919.6 | 621.9 | |
| 1.57 | 1.83 | 0.87 | 1.01 | 12.81 | 302.86 | -25.77 | 71.79 | 0.4482 | 681.4 | 495.3 | |
| 0.00 | 1.65 | 0.00 | 0.91 | 12.09 | 302.94 | -25.70 | 73.33 | 0.4445 | 772.0 | 604.2 | |
| 2.35 | 11.14 | 1.30 | 6.16 | 11.55 | 302.86 | -25.78 | 74.57 | 0.4439 | 634.1 | -29.0 | |
| 0.00 | 1.92 | 0.00 | 1.06 | 11.18 | 302.83 | -25.81 | 75.39 | 0.4433 | 622.0 | 521.9 | |
| 0.00 | 4.44 | 0.00 | 2.46 | 12.20 | 302.66 | -25.98 | 73.22 | 0.4491 | -861.0 | -586.0 | |
| 0.00 | 2.70 | 0.00 | 1.49 | 9.86 | 302.88 | -25.76 | 78.33 | 0.4390 | 710.0 | 628.3 | |
| 1.83 | -62.00 | 1.01 | -62.00 | 11.59 | 302.51 | -26.12 | 74.62 | 0.4492 | -804.3 | 999999 | |
| 0.00 | 1.48 | 0.00 | 0.82 | 11.32 | 302.44 | -26.20 | 75.25 | 0.4495 | -784.0 | -482.5 | |
| 1.74 | 8.79 | 0.96 | 4.87 | 11.05 | 302.40 | -26.24 | 75.86 | 0.4493 | -916.0 | -653.4 | |
| 0.00 | 2.87 | 0.00 | 1.60 | 11.97 | 302.17 | -26.47 | 73.95 | 0.4556 | -849.0 | -661.5 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 12.05 | 301.99 | -26.65 | 73.85 | 0.4585 | -423.0 | -360.1 | |
| 0.00 | 0.78 | 0.00 | 0.44 | 11.12 | 301.95 | -26.69 | 75.88 | 0.4563 | -791.0 | -593.4 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 10.43 | 301.95 | -26.69 | 77.38 | 0.4545 | -806.0 | -624.8 | |
| 0.00 | 2.96 | 0.00 | 1.65 | 9.32 | 301.30 | -27.34 | 79.97 | 0.4621 | 725.0 | 443.3 | |
| 9.75 | 78.87 | 5.50 | 44.50 | 13.06 | 300.84 | -27.79 | 72.27 | 0.4789 | 1110.3 | 664.2 | |
| 0.35 | -74.00 | 0.20 | -74.00 | 13.33 | 300.70 | -27.93 | 71.79 | 0.4818 | 831.5 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.44 | 9.16 | 300.97 | -27.67 | 80.40 | 0.4668 | 769.0 | 657.8 | |
| 0.00 | 1.22 | 0.00 | 0.70 | 16.91 | 300.01 | -28.63 | 65.19 | 0.5071 | 708.0 | 575.2 | |
| 5.14 | -74.00 | 2.90 | -74.00 | 13.13 | 300.48 | -28.15 | 72.28 | 0.4843 | 695.5 | 999999 | |
| 6.53 | -74.00 | 3.69 | -74.00 | 12.71 | 300.47 | -28.17 | 73.15 | 0.4831 | 967.8 | 999999 | |
| 1.74 | 13.32 | 0.99 | 7.58 | 13.79 | 300.30 | -28.34 | 71.05 | 0.4894 | 825.0 | 713.5 | |
| 0.00 | 1.39 | 0.00 | 0.78 | 8.91 | 300.82 | -27.82 | 80.96 | 0.4687 | 735.0 | 466.4 | |
| 0.00 | 1.04 | 0.00 | 0.59 | 13.78 | 300.02 | -28.62 | 71.21 | 0.4934 | 715.0 | 602.0 | |
| 3.48 | -74.00 | 1.97 | -74.00 | 12.58 | 300.10 | -28.53 | 73.58 | 0.4881 | 947.3 | 999999 | |
| 0.00 | 2.35 | 0.00 | 1.34 | 14.52 | 299.63 | -29.00 | 69.95 | 0.5017 | 913.0 | 741.4 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 11.84 | 299.91 | -28.73 | 75.13 | 0.4887 | 756.0 | 618.3 | |
| 0.00 | 2.18 | 0.00 | 1.24 | 13.61 | 299.55 | -29.09 | 71.77 | 0.4995 | 635.0 | 557.8 | |
| 1.13 | 4.44 | 0.65 | 2.54 | 14.27 | 299.39 | -29.25 | 70.56 | 0.5042 | 897.8 | 746.2 | |
| 0.00 | 1.74 | 0.00 | 0.98 | 9.05 | 299.95 | -28.69 | 80.83 | 0.4821 | 737.0 | 437.5 | |
| 0.00 | 1.39 | 0.00 | 0.79 | 9.68 | 299.82 | -28.81 | 79.57 | 0.4850 | 817.0 | 767.1 | |
| 5.31 | 14.45 | 3.05 | 8.31 | 14.22 | 298.97 | -29.67 | 70.85 | 0.5100 | 938.9 | 632.0 | |
| 0.00 | 5.75 | 0.00 | 3.31 | 14.69 | 298.76 | -29.88 | 70.05 | 0.5147 | 179.0 | 214.3 | |
| 11.75 | 78.35 | 6.73 | 44.83 | 12.80 | 298.99 | -29.65 | 73.58 | 0.5049 | 908.7 | 749.3 | |
| 3.13 | -92.00 | 1.79 | -92.00 | 12.41 | 299.04 | -29.60 | 74.33 | 0.5031 | 929.9 | 999999 | |
| 5.31 | -92.00 | 3.04 | -92.00 | 12.11 | 299.04 | -29.60 | 74.92 | 0.5022 | 949.9 | 999999 | |
| 5.22 | -92.00 | 2.99 | -92.00 | 11.72 | 299.05 | -29.59 | 75.68 | 0.5010 | 914.8 | 999999 | |
| 0.00 | 1.65 | 0.00 | 0.95 | 11.35 | 298.99 | -29.65 | 76.42 | 0.5010 | 655.0 | 646.2 | |
| 0.00 | 3.57 | 0.00 | 2.06 | 14.26 | 298.61 | -30.03 | 70.93 | 0.5152 | 681.0 | 630.9 | |
| 0.00 | 1.65 | 0.00 | 0.96 | 14.59 | 298.49 | -30.15 | 70.37 | 0.5181 | 5.0 | 152.1 | |
| 0.00 | 1.39 | 0.00 | 0.80 | 12.49 | 298.74 | -29.89 | 74.28 | 0.5075 | 636.0 | 530.8 | |
| 0.00 | 1.57 | 0.00 | 0.90 | 11.89 | 298.82 | -29.82 | 75.43 | 0.5048 | 769.0 | 689.2 | |
| 0.52 | 11.67 | 0.30 | 6.74 | 13.71 | 298.51 | -30.13 | 72.02 | 0.5147 | 929.8 | 611.4 | |
| 0.00 | 1.31 | 0.00 | 0.75 | 11.88 | 298.64 | -29.99 | 75.50 | 0.5073 | 695.0 | 631.5 | |
| 0.00 | 1.22 | 0.00 | 0.70 | 11.55 | 298.65 | -29.99 | 76.15 | 0.5064 | 621.0 | 549.9 | |
| 2.79 | -101.00 | 1.61 | -101.00 | 13.83 | 298.31 | -30.32 | 71.89 | 0.5179 | 740.6 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 14.04 | 298.28 | -30.35 | 71.50 | 0.5190 | 602.0 | 539.8 | |
| 0.00 | 1.39 | 0.00 | 0.81 | 13.40 | 298.23 | -30.40 | 72.73 | 0.5176 | 649.0 | 493.5 | |
| 0.00 | 0.44 | 0.00 | 0.25 | 11.63 | 298.43 | -30.21 | 76.06 | 0.5098 | 564.0 | 484.6 | |
| 0.00 | 2.09 | 0.00 | 1.20 | 11.96 | 298.39 | -30.25 | 75.43 | 0.5112 | 442.0 | 410.8 | |
| 2.09 | 2.87 | 1.21 | 1.66 | 12.48 | 298.00 | -30.63 | 74.56 | 0.5182 | 661.9 | 585.3 | |
| 0.00 | 3.13 | 0.00 | 1.81 | 12.21 | 298.04 | -30.60 | 75.06 | 0.5170 | 710.0 | 547.1 | |
| 0.00 | 3.92 | 0.00 | 2.28 | 13.80 | 297.78 | -30.85 | 72.15 | 0.5253 | 550.0 | 438.2 | |
| 0.00 | 1.04 | 0.00 | 0.61 | 13.44 | 297.22 | -31.41 | 73.04 | 0.5321 | 733.0 | 556.4 | |
| 0.00 | 1.04 | 0.00 | 0.61 | 13.78 | 296.67 | -31.97 | 72.63 | 0.5409 | 531.0 | 382.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
