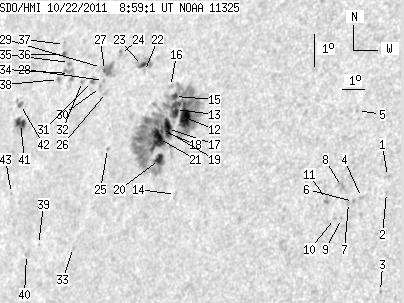

SDO HMI 2011-10-22 08:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.72 | 388.27 | 57.68 | 296.11 | 15.37 | 279.45 | -49.19 | 74.25 | 0.7596 | -318.5 | -85.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-22 08:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.18 | 0.00 | 1.39 | 14.36 | 289.75 | -38.89 | 73.77 | 0.6357 | -642.0 | -553.1 | |
| 0.00 | 1.04 | 0.00 | 0.67 | 13.87 | 289.81 | -38.83 | 74.50 | 0.6340 | -590.0 | -456.2 | |
| 0.00 | 0.78 | 0.00 | 0.50 | 10.90 | 290.10 | -38.54 | 79.16 | 0.6252 | -616.0 | -500.8 | |
| 0.00 | 2.09 | 0.00 | 1.35 | 13.67 | 288.85 | -39.78 | 75.04 | 0.6459 | -704.0 | -562.8 | |
| 0.00 | 1.13 | 0.00 | 0.75 | 16.27 | 288.10 | -40.54 | 71.27 | 0.6611 | -601.0 | -468.9 | |
| 0.00 | 1.31 | 0.00 | 0.85 | 13.53 | 288.56 | -40.08 | 75.31 | 0.6494 | -821.0 | -670.5 | |
| 0.00 | 2.61 | 0.00 | 1.70 | 13.49 | 288.37 | -40.27 | 75.41 | 0.6518 | -595.0 | -555.8 | |
| 0.00 | 5.22 | 0.00 | 3.42 | 13.95 | 287.99 | -40.65 | 74.79 | 0.6575 | -652.0 | -612.3 | |
| 0.00 | 0.96 | 0.00 | 0.62 | 12.99 | 288.18 | -40.45 | 76.21 | 0.6533 | -583.0 | -489.8 | |
| 0.00 | 1.31 | 0.00 | 0.86 | 12.98 | 287.90 | -40.73 | 76.28 | 0.6568 | -657.0 | -504.9 | |
| 0.00 | 2.52 | 0.00 | 1.67 | 13.52 | 287.47 | -41.17 | 75.53 | 0.6633 | -628.0 | -571.4 | |
| 13.23 | 279.45 | 9.81 | 210.02 | 15.60 | 280.77 | -47.87 | 73.77 | 0.7463 | -1017.2 | -189.8 | |
| 11.32 | -12.00 | 8.47 | -12.00 | 15.81 | 280.28 | -48.36 | 73.56 | 0.7520 | -643.8 | 999999 | |
| 0.00 | 1.92 | 0.00 | 1.41 | 13.27 | 281.01 | -47.62 | 76.86 | 0.7406 | -551.0 | -452.0 | |
| 2.44 | -12.00 | 1.83 | -12.00 | 16.20 | 280.11 | -48.53 | 73.08 | 0.7544 | -459.1 | 999999 | |
| 0.00 | 2.61 | 0.00 | 1.97 | 16.49 | 279.82 | -48.82 | 72.75 | 0.7580 | 63.0 | -60.9 | |
| 10.36 | -12.00 | 7.77 | -12.00 | 15.22 | 280.09 | -48.55 | 74.38 | 0.7533 | -794.0 | 999999 | |
| 0.52 | -12.00 | 0.39 | -12.00 | 15.11 | 279.93 | -48.70 | 74.54 | 0.7549 | -671.2 | 999999 | |
| 0.44 | -12.00 | 0.33 | -12.00 | 15.20 | 279.81 | -48.82 | 74.44 | 0.7563 | -394.6 | 999999 | |
| 7.23 | -12.00 | 5.42 | -12.00 | 14.26 | 280.00 | -48.64 | 75.65 | 0.7531 | -825.1 | 999999 | |
| 12.19 | -12.00 | 9.19 | -12.00 | 14.89 | 279.77 | -48.87 | 74.86 | 0.7564 | -700.7 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.81 | 16.85 | 278.44 | -50.20 | 72.49 | 0.7733 | -645.0 | -549.0 | |
| 2.79 | 13.06 | 2.17 | 10.20 | 17.03 | 278.27 | -50.36 | 72.29 | 0.7752 | -436.1 | 76.3 | |
| 0.00 | 2.79 | 0.00 | 2.23 | 17.31 | 277.07 | -51.57 | 72.11 | 0.7881 | 764.0 | 652.4 | |
| 0.00 | 1.22 | 0.00 | 0.96 | 14.42 | 277.45 | -51.18 | 75.74 | 0.7809 | 514.0 | 463.9 | |
| 0.00 | 2.52 | 0.00 | 2.03 | 16.09 | 276.83 | -51.81 | 73.69 | 0.7891 | 452.0 | 392.1 | |
| 1.04 | 12.54 | 0.85 | 10.10 | 16.75 | 276.48 | -52.16 | 72.91 | 0.7934 | 745.4 | 318.7 | |
| 0.00 | 1.22 | 0.00 | 0.98 | 16.44 | 276.54 | -52.09 | 73.28 | 0.7924 | 634.0 | 556.7 | |
| 0.00 | 0.26 | 0.00 | 0.21 | 16.82 | 276.29 | -52.34 | 72.83 | 0.7954 | 617.0 | 615.7 | |
| 0.00 | 2.52 | 0.00 | 2.04 | 16.22 | 276.47 | -52.16 | 73.57 | 0.7929 | 580.0 | 528.3 | |
| 0.96 | 2.96 | 0.78 | 2.42 | 16.37 | 276.01 | -52.63 | 73.44 | 0.7978 | 673.9 | 547.9 | |
| 0.00 | 1.57 | 0.00 | 1.30 | 16.34 | 275.50 | -53.13 | 73.54 | 0.8028 | 661.0 | 559.9 | |
| 0.00 | 1.31 | 0.00 | 1.04 | 11.36 | 276.66 | -51.98 | 79.71 | 0.7873 | 561.0 | 449.5 | |
| 0.00 | 8.01 | 0.00 | 6.74 | 16.53 | 274.74 | -53.90 | 73.40 | 0.8105 | 662.0 | 568.8 | |
| 0.00 | 2.35 | 0.00 | 1.98 | 16.86 | 274.60 | -54.03 | 73.01 | 0.8122 | 557.0 | 480.2 | |
| 1.92 | 2.61 | 1.63 | 2.23 | 17.08 | 274.24 | -54.39 | 72.78 | 0.8159 | 505.7 | 287.0 | |
| 0.00 | 2.44 | 0.00 | 2.09 | 17.38 | 274.11 | -54.53 | 72.43 | 0.8174 | 473.0 | 325.1 | |
| 0.00 | 2.70 | 0.00 | 2.29 | 16.31 | 274.24 | -54.39 | 73.72 | 0.8151 | 679.0 | 524.1 | |
| 0.00 | 0.78 | 0.00 | 0.65 | 11.32 | 274.89 | -53.74 | 79.83 | 0.8056 | 533.0 | 421.9 | |
| 0.00 | 1.65 | 0.00 | 1.39 | 10.98 | 274.36 | -54.28 | 80.28 | 0.8108 | 457.0 | 301.6 | |
| 7.49 | 13.93 | 6.58 | 12.24 | 14.84 | 272.76 | -55.88 | 75.64 | 0.8282 | 620.1 | 356.3 | |
| 2.79 | 4.79 | 2.46 | 4.24 | 15.41 | 272.53 | -56.11 | 74.97 | 0.8307 | 502.5 | 228.1 | |
| 0.00 | 0.87 | 0.00 | 0.76 | 12.73 | 273.03 | -55.61 | 78.18 | 0.8245 | 291.0 | 278.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
