SDO HMI 2011-10-22 08:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.39 | 466.79 | 53.04 | 259.83 | -21.18 | 333.87 | 5.24 | 190.91 | 0.4570 | -157.7 | -135.0 | |
|
previous
or next observation for the same group /

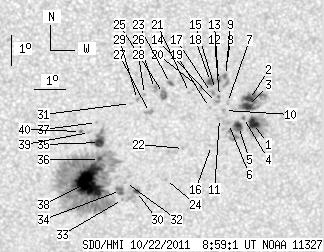

back to the solar disc SDO HMI 2011-10-22 08:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.83 | 34.04 | 4.35 | 18.93 | -20.08 | 337.69 | 9.05 | 199.07 | 0.4544 | 1041.0 | 324.1 | |
| 3.74 | 35.26 | 2.06 | 19.46 | -19.28 | 337.52 | 8.88 | 199.34 | 0.4418 | 1217.2 | 730.4 | |
| 7.14 | -2.00 | 3.94 | -2.00 | -19.51 | 337.47 | 8.83 | 199.06 | 0.4449 | 956.8 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.77 | -19.87 | 337.36 | 8.72 | 198.57 | 0.4497 | 885.0 | 846.4 | |
| 5.31 | 16.63 | 2.95 | 9.24 | -20.17 | 337.21 | 8.58 | 198.07 | 0.4533 | 936.0 | 566.7 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -20.06 | 336.89 | 8.25 | 197.50 | 0.4503 | 759.0 | 724.4 | |
| 0.00 | 1.83 | 0.00 | 1.01 | -19.37 | 336.82 | 8.18 | 197.86 | 0.4396 | 687.0 | 642.4 | |
| 0.00 | 1.57 | 0.00 | 0.86 | -18.19 | 336.73 | 8.09 | 198.58 | 0.4216 | 809.0 | 543.0 | |
| 2.00 | 14.10 | 1.10 | 7.72 | -18.49 | 336.71 | 8.08 | 198.31 | 0.4259 | 846.8 | 787.4 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -19.63 | 336.74 | 8.10 | 197.50 | 0.4431 | 845.0 | 607.7 | |
| 0.00 | 1.57 | 0.00 | 0.87 | -19.89 | 336.59 | 7.95 | 197.02 | 0.4464 | 605.0 | 492.2 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -19.17 | 336.55 | 7.92 | 197.46 | 0.4354 | 936.0 | 801.6 | |
| 1.39 | -9.00 | 0.76 | -9.00 | -18.65 | 336.50 | 7.86 | 197.73 | 0.4272 | 1033.8 | 999999 | |
| 0.00 | 2.52 | 0.00 | 1.39 | -19.37 | 336.47 | 7.83 | 197.14 | 0.4379 | 783.0 | 687.7 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -18.94 | 336.41 | 7.78 | 197.34 | 0.4313 | 826.0 | 673.5 | |
| 0.00 | 1.13 | 0.00 | 0.63 | -20.79 | 336.38 | 7.74 | 196.00 | 0.4587 | 551.0 | 461.6 | |
| 0.00 | 2.09 | 0.00 | 1.15 | -19.04 | 336.29 | 7.66 | 197.02 | 0.4321 | 814.0 | 733.8 | |
| 4.00 | -9.00 | 2.19 | -9.00 | -18.68 | 336.24 | 7.61 | 197.18 | 0.4265 | 1074.8 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -19.53 | 336.25 | 7.62 | 196.59 | 0.4393 | 539.0 | 513.4 | |
| 0.00 | 1.57 | 0.00 | 0.86 | -18.90 | 335.94 | 7.30 | 196.36 | 0.4285 | 919.0 | 768.1 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -19.03 | 335.59 | 6.96 | 195.55 | 0.4289 | 596.0 | 472.7 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -20.87 | 335.48 | 6.84 | 194.18 | 0.4564 | -643.0 | -416.5 | |
| 1.57 | 2.18 | 0.86 | 1.19 | -18.73 | 334.98 | 6.34 | 194.42 | 0.4218 | 976.3 | 814.9 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -21.91 | 334.95 | 6.31 | 192.59 | 0.4700 | -719.0 | -603.7 | |
| 0.00 | 6.79 | 0.00 | 3.71 | -19.05 | 334.77 | 6.13 | 193.77 | 0.4260 | 981.0 | 827.8 | |
| 0.00 | 3.31 | 0.00 | 1.81 | -18.88 | 334.47 | 5.84 | 193.23 | 0.4223 | 945.0 | 824.4 | |
| 0.00 | 3.13 | 0.00 | 1.72 | -19.67 | 334.34 | 5.71 | 192.52 | 0.4340 | 1024.0 | 832.2 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -19.08 | 334.16 | 5.53 | 192.45 | 0.4242 | 790.0 | 674.3 | |
| 0.00 | 1.48 | 0.00 | 0.81 | -19.24 | 333.95 | 5.31 | 191.89 | 0.4260 | 874.0 | 682.6 | |
| 2.52 | 13.23 | 1.42 | 7.44 | -22.30 | 334.02 | 5.39 | 190.63 | 0.4731 | -854.7 | -589.5 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -19.37 | 333.73 | 5.09 | 191.35 | 0.4273 | 488.0 | 431.8 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -21.99 | 333.66 | 5.02 | 190.04 | 0.4674 | -744.0 | -608.4 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -22.57 | 333.58 | 4.94 | 189.67 | 0.4759 | -632.0 | -530.9 | |
| 0.00 | 6.88 | 0.00 | 3.86 | -22.26 | 333.51 | 4.87 | 189.64 | 0.4711 | -988.0 | -797.7 | |
| 6.70 | 16.71 | 3.70 | 9.23 | -20.65 | 332.78 | 4.14 | 188.78 | 0.4446 | -1043.5 | -797.9 | |
| 1.74 | 284.41 | 0.97 | 158.90 | -21.22 | 332.80 | 4.16 | 188.61 | 0.4534 | -1061.1 | -392.2 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -19.99 | 332.67 | 4.03 | 188.79 | 0.4340 | -894.0 | -686.4 | |
| 51.45 | -36.00 | 28.74 | -36.00 | -21.95 | 332.49 | 3.86 | 187.76 | 0.4640 | -1243.9 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.72 | -20.32 | 332.45 | 3.82 | 188.21 | 0.4386 | -880.0 | -621.3 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -20.28 | 332.16 | 3.53 | 187.61 | 0.4375 | 437.0 | 340.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
