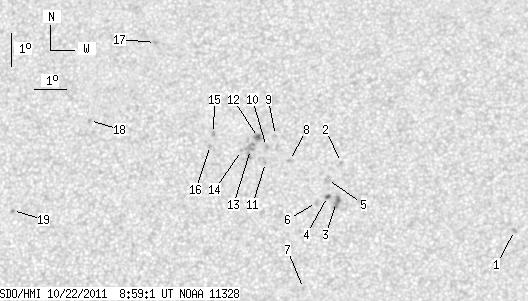

SDO HMI 2011-10-22 08:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.91 | 44.31 | 2.00 | 22.59 | 18.02 | 324.63 | -4.00 | 4.25 | 0.2347 | 358.3 | 196.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-22 08:59:01 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.92 | 0.00 | 0.97 | 16.07 | 332.14 | 3.50 | 342.55 | 0.1967 | 878.0 | 638.7 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 18.15 | 326.75 | -1.89 | 8.02 | 0.2254 | -766.0 | -610.4 | |
| 0.00 | 6.70 | 0.00 | 3.39 | 16.93 | 326.60 | -2.03 | 9.56 | 0.2052 | -1216.0 | -920.9 | |
| 1.65 | 1.83 | 0.84 | 0.93 | 17.11 | 326.32 | -2.32 | 10.69 | 0.2091 | -838.8 | -798.0 | |
| 0.00 | 4.09 | 0.00 | 2.08 | 17.63 | 326.31 | -2.32 | 10.26 | 0.2178 | -620.0 | -643.2 | |
| 0.00 | 1.74 | 0.00 | 0.88 | 16.92 | 325.98 | -2.66 | 12.42 | 0.2072 | -743.0 | -528.3 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 14.31 | 325.61 | -3.02 | 18.07 | 0.1655 | 947.0 | 722.2 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 18.20 | 325.11 | -3.52 | 14.66 | 0.2318 | 880.0 | 584.9 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 18.96 | 324.65 | -3.98 | 15.54 | 0.2464 | 747.0 | 564.9 | |
| 0.00 | 1.83 | 0.00 | 0.93 | 18.63 | 324.38 | -4.26 | 16.97 | 0.2422 | 906.0 | 740.4 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 18.14 | 324.36 | -4.28 | 17.69 | 0.2343 | 860.0 | 707.8 | |
| 2.26 | 3.31 | 1.16 | 1.69 | 18.90 | 324.12 | -4.52 | 17.58 | 0.2479 | 1032.0 | 923.2 | |
| 0.00 | 9.40 | 0.00 | 4.80 | 18.53 | 323.87 | -4.76 | 18.97 | 0.2432 | 1130.0 | 895.4 | |
| 0.00 | 0.61 | 0.00 | 0.31 | 18.50 | 323.59 | -5.04 | 20.05 | 0.2443 | 840.0 | 715.7 | |
| 0.00 | 1.57 | 0.00 | 0.80 | 19.01 | 322.69 | -5.95 | 22.43 | 0.2579 | 926.0 | 727.1 | |
| 0.00 | 1.31 | 0.00 | 0.67 | 18.64 | 322.61 | -6.03 | 23.30 | 0.2527 | 832.0 | 730.5 | |
| 0.00 | 2.00 | 0.00 | 1.04 | 21.80 | 320.70 | -7.93 | 24.23 | 0.3136 | 800.0 | 585.2 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 19.36 | 318.72 | -9.92 | 33.66 | 0.2946 | 817.0 | 618.6 | |
| 0.00 | 1.39 | 0.00 | 0.72 | 16.57 | 316.43 | -12.20 | 45.77 | 0.2840 | -902.0 | -725.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
